STEERING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

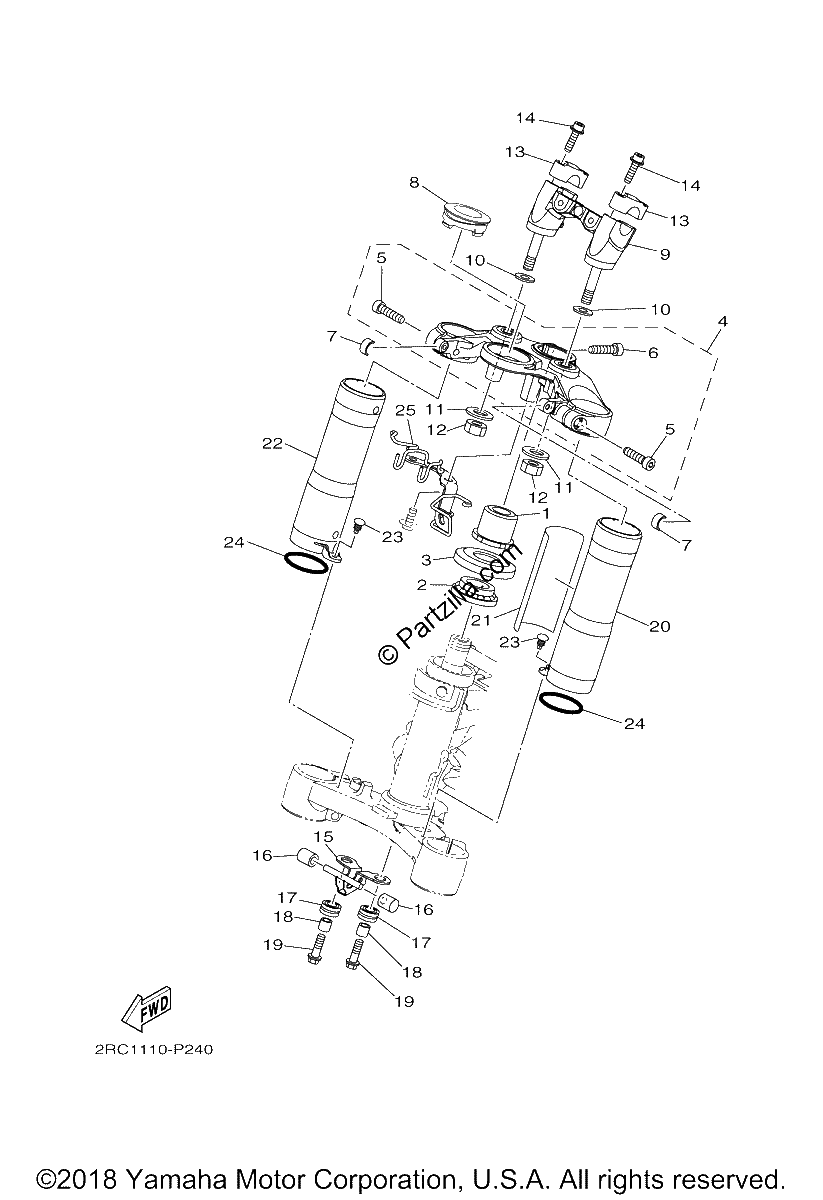

Diagrama de STEERING

Repuestos

#1
93399-99931-00
BEARING
$60.44¢30 219
1
#2
1W1-23416-00-00
COVER, BALL RACE 2
$30.76¢15 381
1
#3
1WS-23357-00-00
Nut
$46.42¢23 213
1
#4
1WS-23430-00-00
HANDLE CROWN COMP.
$548.75¢274 375
1
#5
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
1
#6
91314-10035-00
bolt
$4.60¢2 300
1
#7
1WS-84136-00-00
DAMPER, HEADLIGHT
$2.91¢1 456
1
#8
36P-82552-00-00
CAP, SWITCH
$14.98¢7 488
1
#9
1WS-23442-00-P0
HOLDER, HANDLE LOW
$117.26¢58 631
1
#10
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#11
90201-10043-00
WASHER, plate
$2.23¢1 113
1
#12
95617-10100-00
NUT, U
$7.35¢3 675
1
#13
1E6-23441-10-P0
HOLDER, HANDLE UPPER
$25.99¢12 994
1
#14
95022-08035-00
Bolt, Flange
$3.88¢1 938
1
#15
1WS-2334G-00-00
BRACKET 1
$15.77¢7 887
1
#16
1WS-84527-00-00
Damper
$1.89¢944
1
#17
3C3-83513-00-00
Damper
$7.65¢3 825
1
#18
90387-06026-00
COLLAR
$8.24¢4 119
1
#19
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#20
1WS-23121-00-00
COVER, UPPER 1
$8.49¢4 244
1
#21
1WS-2318U-00-00
PLATE, SEAT
$11.04¢5 519
1
#22
1WS-23131-00-00
COVER, UPPER 2
$8.03¢4 013
1
#23
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#24
93210-40M10-00
O-Ring
$6.34¢3 169
1
#25
2RC-2334H-00-00
BRACKET 2
$69.24¢34 619
1
