CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

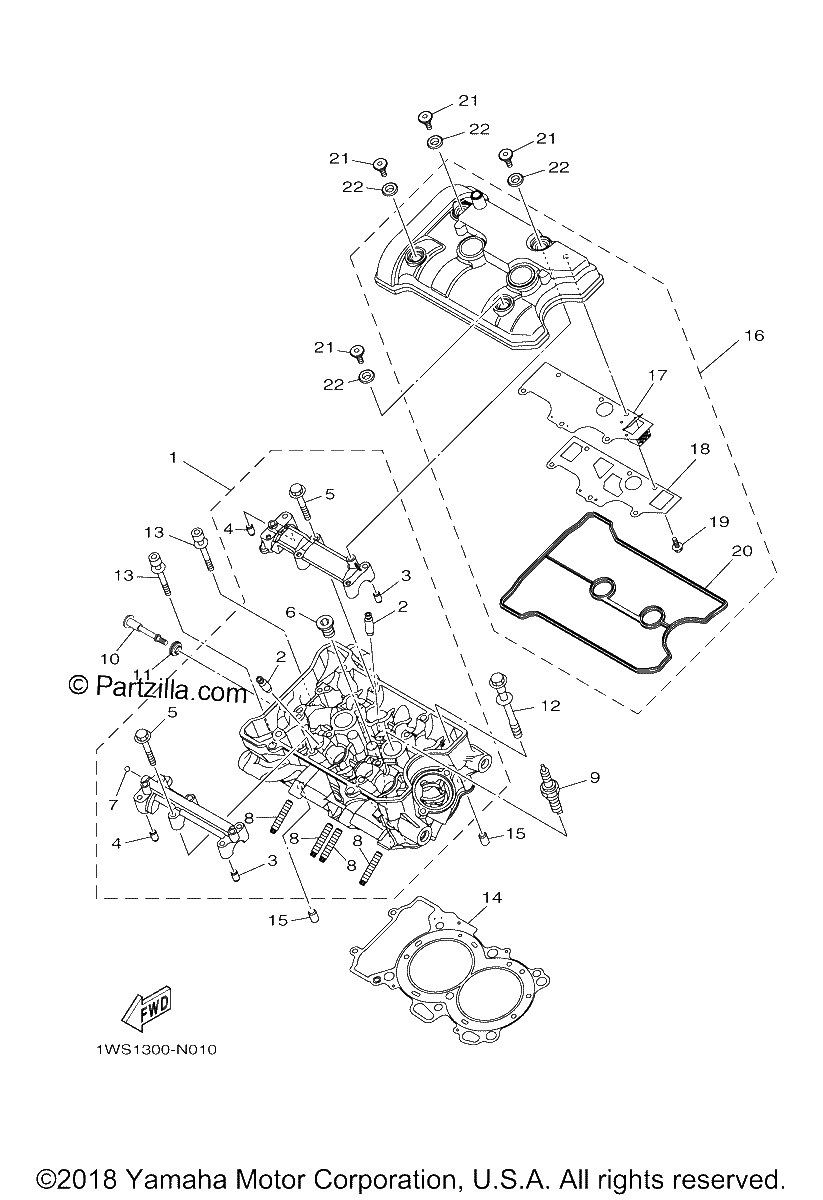

Diagrama de CYLINDER HEAD

Repuestos

#1
1WS-11101-09-00
Cylinder Head Assy
$1625.66¢812 831
1
#2
4D9-11133-10-00
GUIDE, VALVE 1
$92.36¢46 181
1
#3
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#4
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#5
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#6
90340-18002-00
PLUG, STRAIGHT SCREW
$11.19¢5 594
1
#7
93501-04011-00
BALL
$7.46¢3 731
1
#8
90116-08087-00
BOLT, STUD
$8.97¢4 488
1
#9
LMA-R8A9S-00-00
LMAR8A-9S NGK SPLUG (replaces 94701-00436-00)
$15.63¢7 813
1
#10
90109-06293-00
BOLT
$15.25¢7 625
1
#11
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
#12
90119-10056-00
BOLT, WITH WASHER
$10.61¢5 306
1
#13
90110-06081-00
BOLT, HEXAGON SOCKET
$3.26¢1 631
1
#14
1WS-11181-00-00
GASKET, CYLINDER H
$53.75¢26 875
1
#15
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#16
1WS-11190-01-00
COVER, CYLINDER HE (replaces 1WS-11190-00-00)
$197.90¢98 950
1
#17
1WS-11165-00-00
PLATE, breather
$18.49¢9 244
1
#18
1WS-11169-00-00
GASKET, BREATHER C
$13.22¢6 613
1
#19
90105-05025-00
BOLT, FLANGE (replaces 90105-05024-00)
$1.17¢587
1
#20
1WS-11193-01-00
GASKET, HEAD COVER 1
$25.18¢12 588
1
#21
90109-066F0-00
BOLT
$7.60¢3 800
1
#22
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
