FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

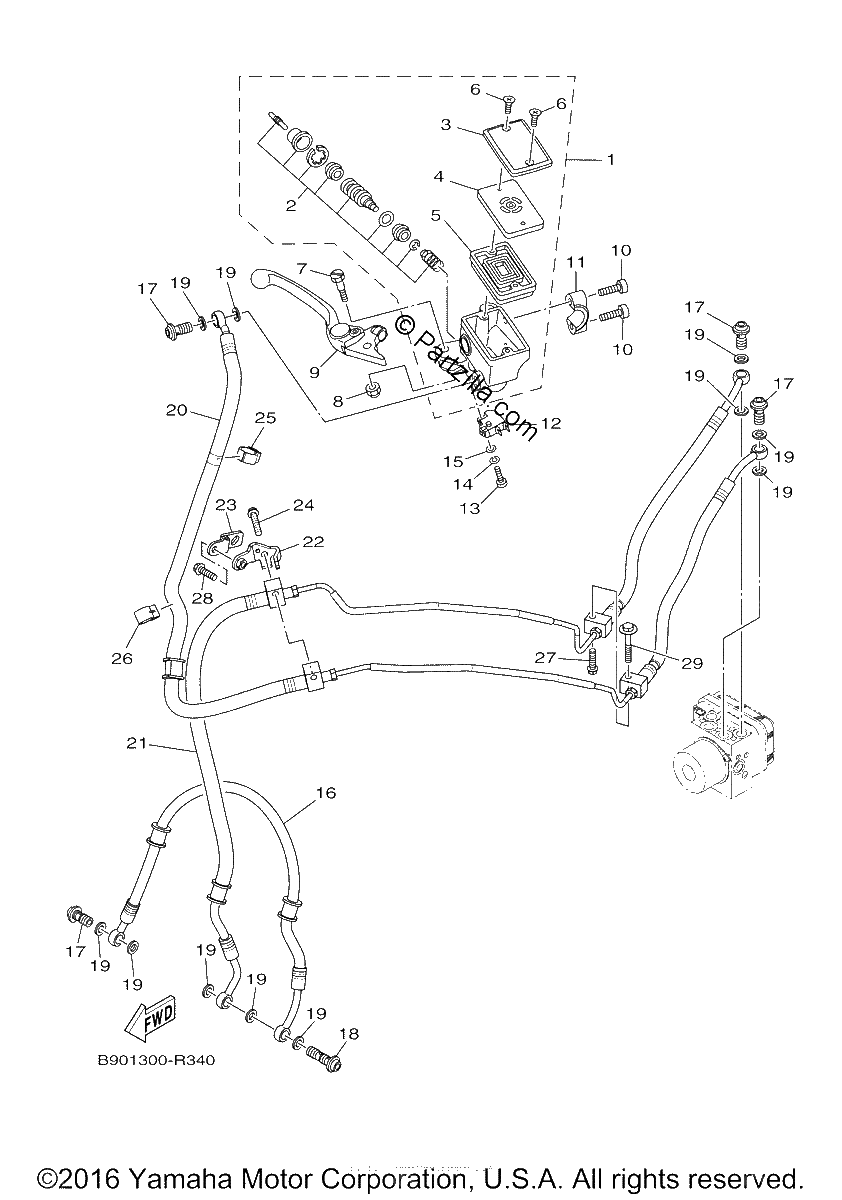

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
2DR-2580A-00-00
MASTER CYLINDER SUB ASSY 2
$260.06¢130 030
1
#2
1MC-25807-00-00
CYLINDER KIT, MASTER
$32.10¢16 048
1
#3
5VS-25852-00-00
CAP, RESERVOIR
$24.32¢12 161
1
#4
5VS-25855-00-00
BUSH, DIAPHRAGM
$15.65¢7 826
1
#5
20S-25854-00-00
DIAPHRAGM, RESERVOIR
$24.74¢12 368
1
#6
5VS-2589H-00-00
SCREW
$3.71¢1 857
1
#7
5VS-2589F-00-00
BOLT, LEVER
$13.48¢6 739
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#9
B90-83922-00-00
LEVER 2
$53.06¢26 531
1
#10
5VS-26332-00-00
BOLT
$4.30¢2 151
1
#11
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$34.79¢17 394
1
#12
1HP-83980-01-00
FRONT STOP SWITCH ASSY
$33.78¢16 888
1
#13
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#14
92902-04100-00
WASHER, SPRING
$0.68¢339
1
#15
92990-04600-00
WASHER, PLATE
$1.10¢552
1
#16
2DR-25872-00-00
HOSE, BRAKE 1
$61.58¢30 791
1
#17
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#18
90401-10042-00
BOLT, UNION
$17.45¢8 723
1
#19
90430-10005-00
GASKET
$7.72¢3 858
1
#20
2DR-2584A-00-00
BRAKE HOSE ASSY
$246.43¢123 217
1
#21
2DR-2584B-00-00
HOSE, BRAKE
$212.20¢106 099
1
#22
2DR-85132-00-00
BRACKET, REFLECTOR 1
$16.64¢8 320
1
#23
B90-2612E-00-00
BRACKET
$5.65¢2 823
1
#24
90105-06192-00
BOLT, FLANGE
$5.07¢2 536
1
#25
90464-16003-00
CLAMP
$6.87¢3 433
1
#26
90464-10233-00
CLAMP
$6.96¢3 479
1
#27
90105-06148-00
Bolt, Flange
$6.82¢3 410
1
#28
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#29
90119-06M55-00
BOLT, WITH WASHER
$4.29¢2 145
1
