REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

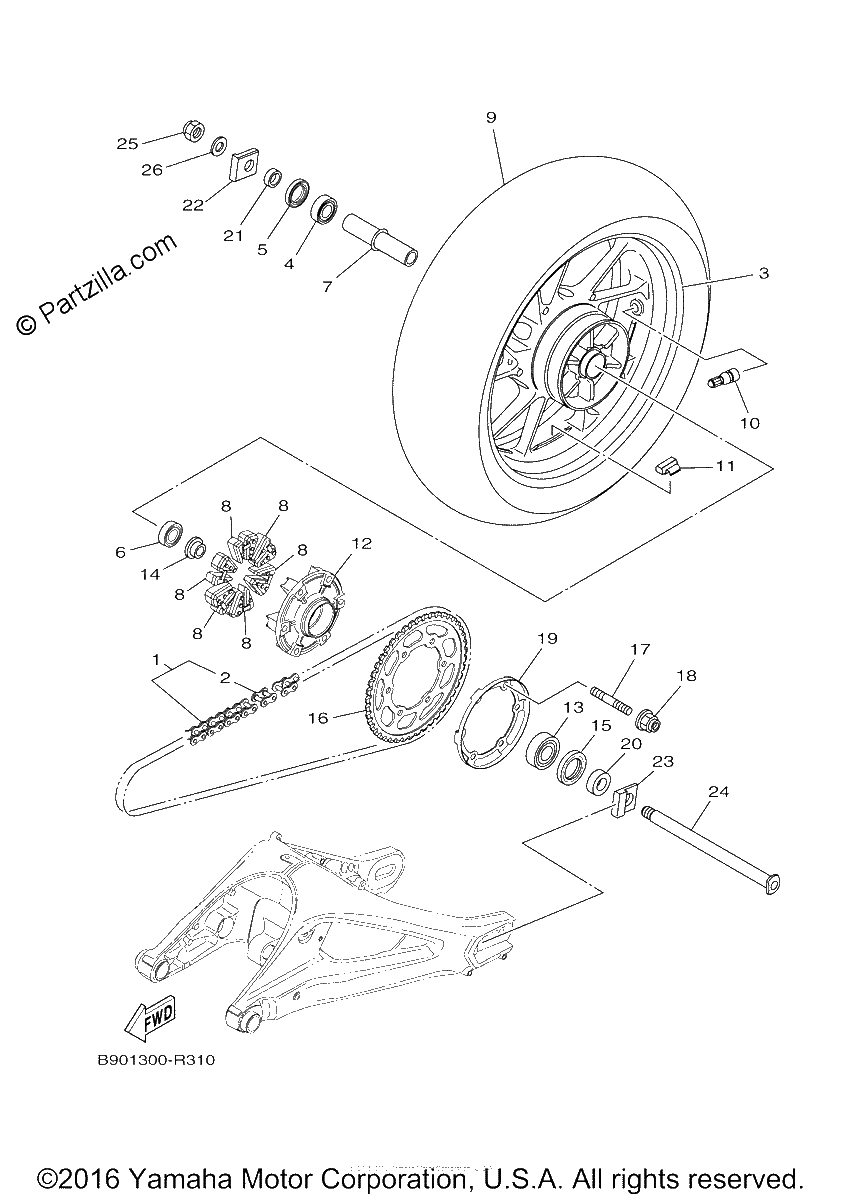

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#0
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#1
94582-31110-00
CHAIN (DID 525V10-110LL)
$160.62¢80 310
1
#2
94682-31031-00
JOINT, CHAIN (DID 525V10-ZJ)
$9.12¢4 560
1
#3
2DR-25338-00-98
CAST WHEEL, REAR | LGB FOR MNM3
$731.19¢365 597
1
#4
93306-20480-00
BEARING
$42.62¢21 310
1
#5
93102-28022-00
OIL SEAL
$13.85¢6 923
1
#6
93306-00444-00
BEARING
$40.23¢20 114
1
#7
2PP-25317-00-00
SPACER, BEARING
$21.11¢10 557
1
#8
1RC-25364-00-00
DAMPER
$11.94¢5 969
1
#9
94118-17078-00
TIRE (180/55ZR17M/C 73W S20R) | UR BRIDGESTONE
$382.04¢191 021
1
#10
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#11
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#12
5JJ-25366-00-00
CLUTCH, HUB
$569.35¢284 677
1
#13
93306-205B5-00
BEARING
$38.81¢19 406
1
#14
1RC-25383-00-00
COLLAR, WHEEL
$30.81¢15 404
1
#15
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#16
1RC-25445-00-00
SPROCKET, DRIVEN (45T)
$116.58¢58 288
1
#17
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#18
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#19
1RC-2537W-00-00
BRACKET 1
$17.69¢8 844
1
#20
90387-20036-00
COLLAR
$21.64¢10 821
1
#21
90387-20035-00
COLLAR
$14.31¢7 153
1
#22
3SP-25388-00-00
PULLER, CHAIN 1
$56.00¢28 002
1
#23
1RC-25389-00-00
PULLER, CHAIN 2
$75.89¢37 944
1
#24
1RC-25381-00-00
AXLE, WHEEL
$69.60¢34 799
1
#25
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#26
90201-18021-00
WASHER, PLATE
$5.13¢2 565
1
