STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

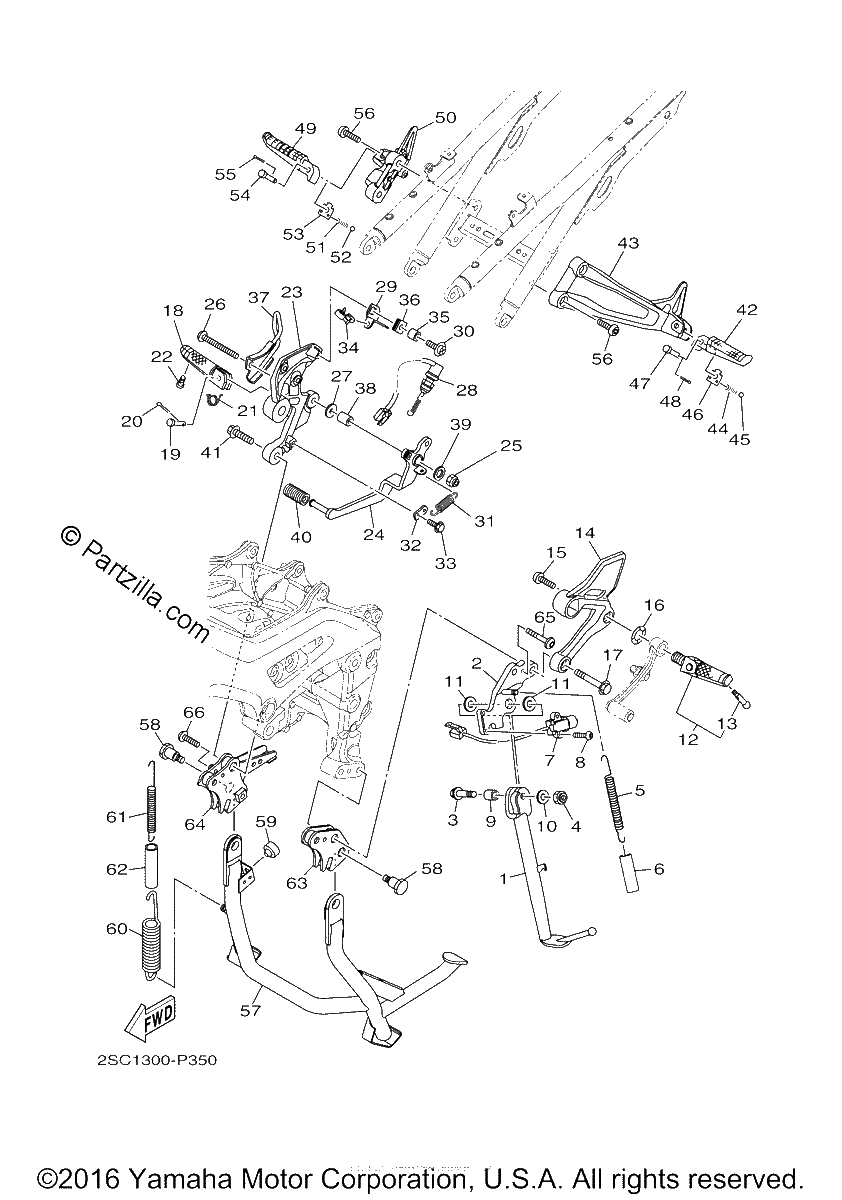

Diagrama de STAND FOOTREST

Repuestos

#1
1RC-27311-00-00
STAND, SIDE
$101.19¢50 594
1
#2
1RC-27321-00-00
BRACKET, SIDE STAND
$93.28¢46 638
1
#3
90105-10188-00
BOLT, FLANGE
$12.07¢6 038
1
#4
95617-10100-00
NUT, U
$7.35¢3 675
1
#5
90506-20032-00
SPRING, TENSION
$15.25¢7 625
1
#6
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#7
1RC-82566-50-00
SWITCH, SIDE STAND
$76.28¢38 138
1
#8
92014-05020-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#9
90387-10050-00
COLLAR
$24.00¢12 000
1
#10
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#11
90201-17018-00
WASHER, PLATE
$1.75¢875
1
#12
2PP-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$79.45¢39 725
1
#13
90109-08233-00
BOLT
$6.32¢3 162
1
#14
1RC-27442-00-00
BRACKET 2
$151.31¢75 656
1
#15
90111-10040-00
BOLT,HEX. SOCKET BUT
$3.55¢1 775
1
#16
90206-17084-00
WASHER, WAVE
$11.19¢5 594
1
#17
90105-10435-00
BOLT, FLANGE
$13.89¢6 944
1
#18
3XV-27461-02-00
FOOTREST
$25.92¢12 962
1
#19
91701-08040-00
PIN
$4.84¢2 419
1
#20
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#21
90508-20572-00
SPRING, TORSION
$7.94¢3 969
1
#22
90109-08233-00
BOLT
$6.32¢3 162
1
#23
1RC-27443-00-00
BRACKET 3
$167.39¢83 694
1
#24
2PP-27211-00-00
PEDAL, BRAKE
$104.13¢52 063
1
#25
90185-08089-00
NUT, SELF-LOCKING
$8.70¢4 350
1
#26
90111-08028-00
BOLT, HEX. SOCKET BUTTON
$5.95¢2 975
1
#27
90201-08103-00
WASHER, PLATE
$6.75¢3 375
1
#28
1RC-82530-00-00
STOP SWITCH ASSY
$56.95¢28 475
1
#29
1RC-2144G-00-00
STAY, STOP SWITCH
$5.84¢2 919
1
#30
90159-06082-00
SCREW, WITH WASHER
$7.70¢3 850
1
#31
90506-23008-00
SPRING, TENSION
$7.03¢3 513
1
#32
1RC-27432-00-00
BRACKET 1
$2.40¢1 200
1
#33
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#34
90464-15157-00
CLAMP
$7.34¢3 669
1
#35
90387-06M16-00
COLLAR
$4.16¢2 081
1
#36
90480-12607-00
GROMMET
$10.18¢5 088
1
#37
1RC-27267-00-00
GUIDE, WIRE
$40.84¢20 419
1
#38
90387-08102-00
COLLAR
$8.73¢4 363
1
#39
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#39
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#40
5EB-18113-00-00
COVER, SHIFT PEDAL
$8.50¢4 250
1
#41
90105-10252-00
BOLT, FLANGE
$5.38¢2 688
1
#42
3VR-27431-02-00
FOOTREST, REAR 1
$29.59¢14 794
1
#43
2PP-2741L-00-00
BRACKET 4
$129.55¢64 775
1
#44
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#45
93501-04011-00
BALL
$7.46¢3 731
1
#46
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#47
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#48
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#49
3VR-27441-02-00
FOOTREST, REAR 2
$29.66¢14 831
1
#50
2PP-2742L-00-00
BRACKET 5
$193.41¢96 706
1
#51
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#52
93501-04011-00
BALL
$7.46¢3 731
1
#54
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#55
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#56
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.39¢1 194
1
#57
2PP-27111-00-00
STAND, MAIN
$254.89¢127 444
1
#58
90109-10060-00
BOLT
$9.91¢4 956
1
#59
36C-27114-00-00
STOPPER, MAIN STAND
$12.48¢6 238
1
#60
2PP-27116-00-00
SPRING, MAIN STAND
$18.56¢9 281
1
#61
2PP-27116-10-00
SPRING, MAIN STAND
$10.41¢5 206
1
#62
90445-19003-00
HOSE
$6.47¢3 238
1
#63
2PP-27151-00-00
BRACKET, MAIN STAND
$33.68¢16 838
1
#64
2PP-27152-00-00
BRACKET, MAIN STAND 2
$80.56¢40 281
1
#65
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#66
92012-06030-00
BOLT, BUTTON HEAD
$3.36¢1 681
1
