FRAME

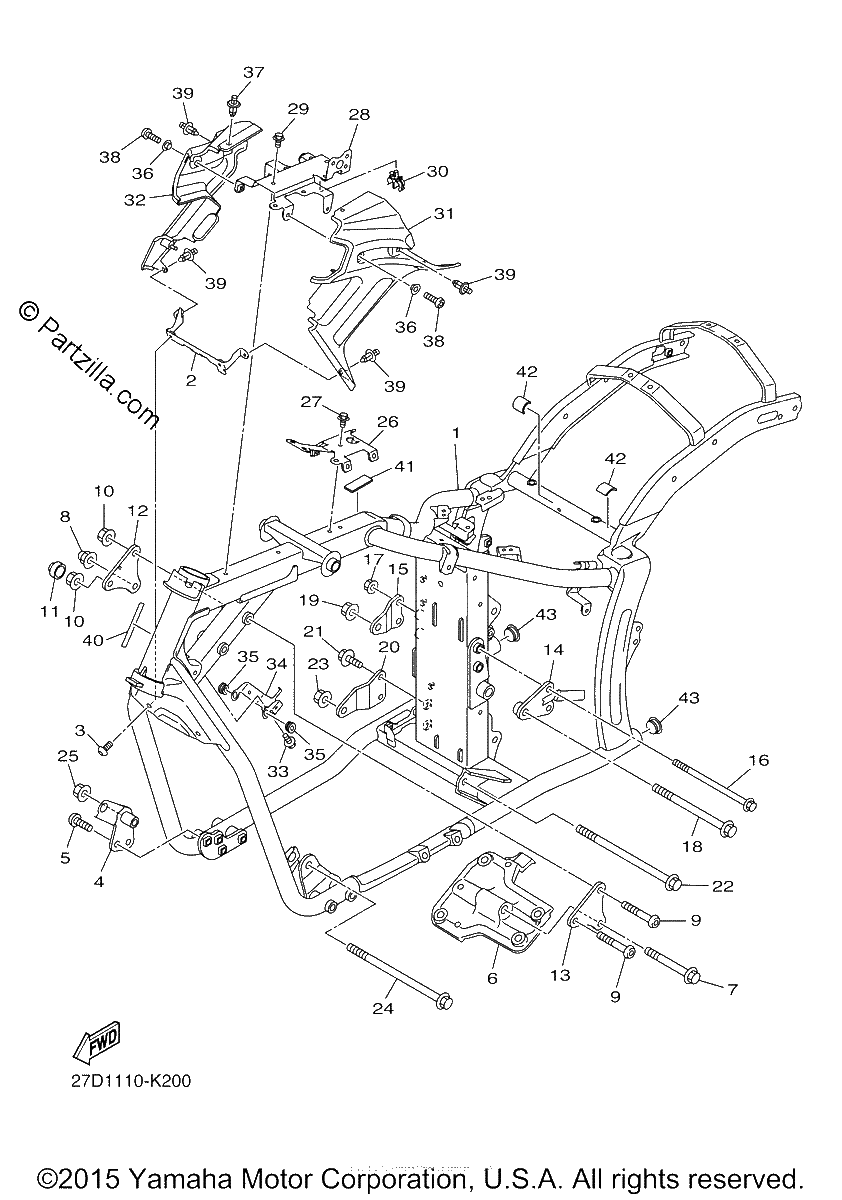

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$2332.19¢1 166 094
#2
BRACKET, 10
$27.54¢13 771
#3
BOLT, BUTTON HEAD
$3.06¢1 529
#4
STAY, ENGINE 7
$34.50¢17 250
#5
BOLT, HEX. SOCKET BUTTON
$4.37¢2 185
#6
STAY, ENGINE 3
$126.41¢63 204
#7
BOLT, FLANGE
$10.09¢5 043
#8
NUT, CROWN
$10.26¢5 129
#9
BOLT, HEX. SOCKET BUTTON
$5.54¢2 772
#10
NUT, SELF-LOCKING
$4.30¢2 151
#11
CAP
$5.11¢2 553
#12
BRACKET 11
$21.57¢10 787
#13
BRACKET
$16.78¢8 389
#14
STAY, ENGINE 4
$32.18¢16 089
#15
STAY, ENGINE 5
$15.36¢7 682
#16
BOLT, FLANGE
$11.30¢5 652
#17
NUT, U FLANGE
$2.51¢1 254
#18
BOLT, FLANGE
$11.19¢5 595
#19
NUT, SELF-LOCKING
$11.01¢5 503
#20
STAY, ENGINE 2
$20.37¢10 183
#21
BOLT, FLANGE
$5.75¢2 875
#22
BOLT, FLANGE
$21.69¢10 844
#23
NUT, SELF-LOCKING
$11.01¢5 503
#24
BOLT, FLANGE
$20.68¢10 339
#25
NUT, SELF-LOCKING
$11.01¢5 503
#26
BRACKET, COIL
$17.58¢8 792
#27
BOLT, FLANGE
$3.29¢1 644
#28
BRACKET, FRONT UPPER 1
$35.79¢17 894
#29
BOLT, FLANGE
$3.29¢1 644
#30
CLAMP
$4.00¢2 001
#31
COVER, SIDE 5
$16.51¢8 257
#32
COVER, SIDE 6
$16.51¢8 257
#33
BOLT, FLANGE
$3.58¢1 788
#34
STAY, SIDE COVER 2
$13.63¢6 814
#35
GROMMET
$3.21¢1 604
#36
SPACER
$7.30¢3 651
#37
RIVET
$3.68¢1 840
#38
SCREW,SPEC'L SHAPE
$4.67¢2 335
#39
RIVET
$1.95¢977
#40
PROTECTOR
$6.12¢3 059
#41
DAMPER
$7.08¢3 542
#42
PROTECTOR
$9.10¢4 548
#43
PLUG
$4.91¢2 455
