REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

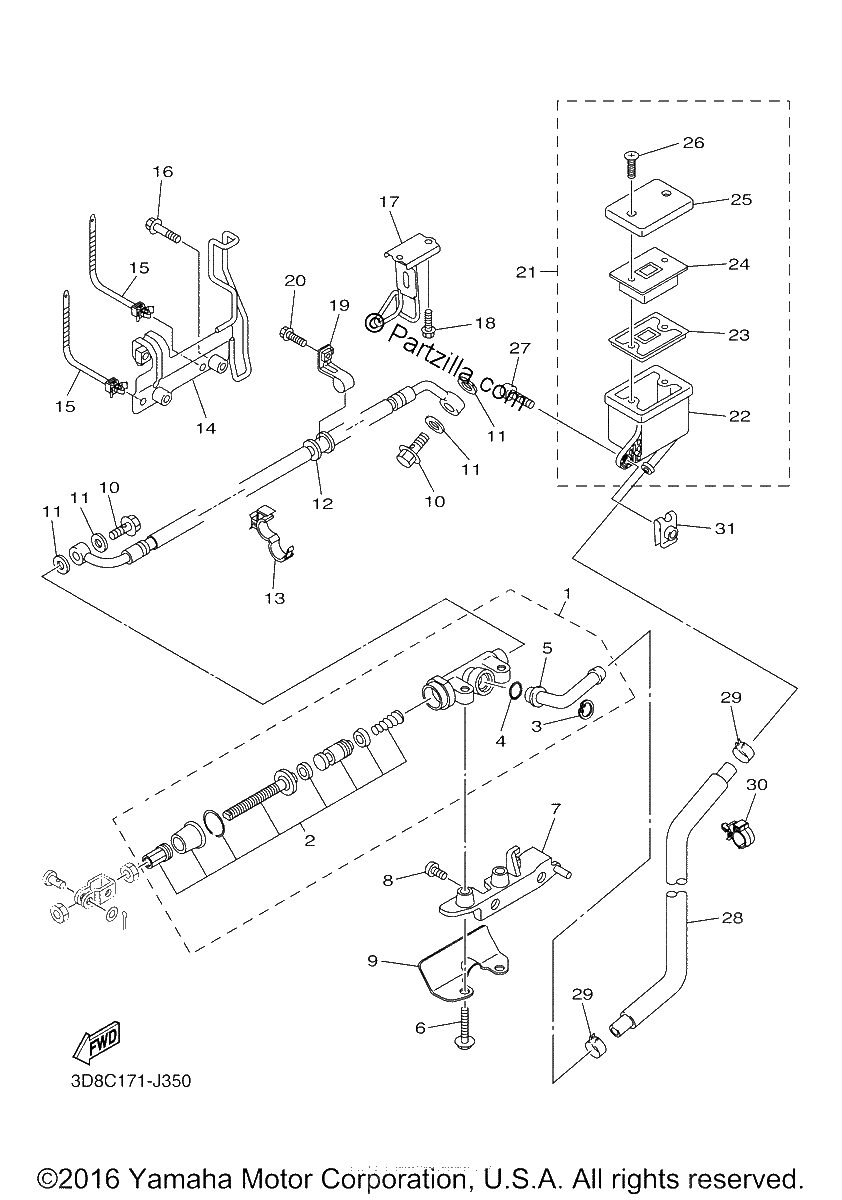

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
3D8-2583V-00-00
REAR MASTER CYLINDER ASSY.
$189.24¢94 619
1
#2
5EL-W0042-50-00
CYLINDER KIT, MASTER
$86.05¢43 025
1
#3
2VN-25866-00-00
CIRCLIP
$7.08¢3 538
1
#4
93210-15566-00
O-RING
$6.88¢3 438
1
#5
2VN-2582A-50-00
JOINT
$23.35¢11 675
1
#6
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#7
5EL-25867-01-00
BRACKET, MASTER CYLINDER
$56.63¢28 313
1
#8
92014-08016-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#9
5EL-27491-00-00
PROTECTOR
$19.26¢9 631
1
#10
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#11
90430-10005-00
GASKET
$8.39¢4 194
1
#12
3D8-2581J-10-00
HOSE, BRAKE 4
$107.27¢53 637
1
#13
90464-15192-00
CLAMP
$7.34¢3 669
1
#14
3D8-21374-10-00
HOLDER, FUEL PIPE
$58.22¢29 112
1
#15
90464-10112-00
CLAMP
$7.35¢3 675
1
#16
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#17
3D8-2587A-00-00
HOLDER, BRAKE HOSE
$24.82¢12 413
1
#18
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#19
3D8-2588F-11-00
HOLDER, BRAKE HOSE 5
$13.16¢6 581
1
#20
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#21
5YU-25804-00-00
RESERVE TANK ASSY
$59.68¢29 838
1
#22
5YU-25894-00-00
TANK, RESERVOIR
$23.35¢11 675
1
#23
55U-25854-00-00
DIAPHRAGM, RESERVOIR
$25.82¢12 913
1
#24
3GM-2585B-20-00
PLATE, DIAPHRAGM
$19.82¢9 913
1
#25
5YU-25852-00-00
CAP, RESERVOIR
$36.34¢18 169
1
#26
98706-04040-00
SCREW, FLAT HEAD
$1.46¢731
1
#27
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#28
3D8-25895-00-00
HOSE, RESERVOIR
$71.06¢35 531
1
#29
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#30
90464-16012-00
Clamp
$6.45¢3 225
1
#31
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
