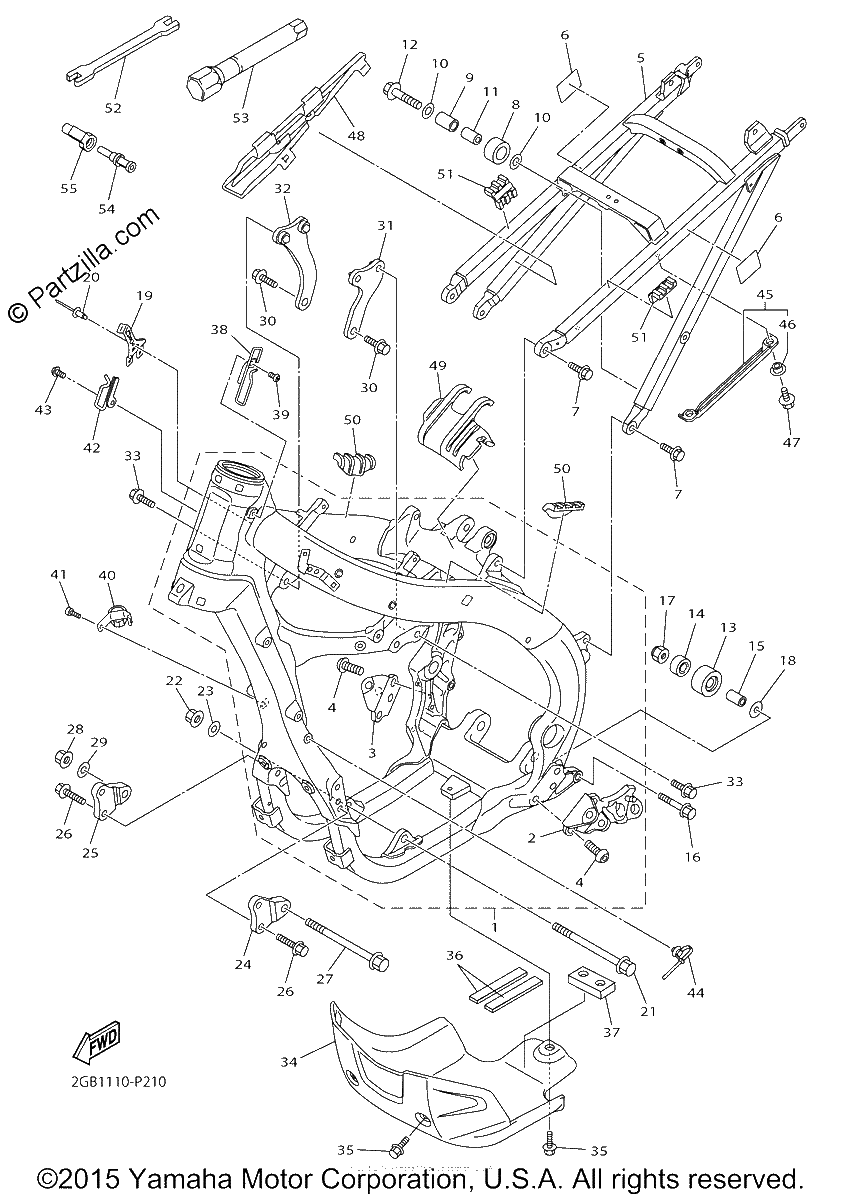

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$3592.49¢1 796 244
#2
BRACKET, FOOTREST
$162.67¢81 337
#3
BRACKET, FOOTREST
$39.71¢19 856
#4
SCREW
$6.49¢3 244
#5
REAR FRAME COMP.
No Disponible
#6
PROTECTOR
$4.91¢2 456
#7
Bolt, Flange
$4.24¢2 119
#8
TENSIONER
$37.55¢18 775
#9
BUSH
$4.24¢2 119
#10
WASHER, PLATE
$5.66¢2 831
#11
COLLAR
$8.03¢4 013
#12
Bolt, Flange
$7.34¢3 669
#13
TENSIONER
$46.22¢23 112
#14
BEARING
$13.31¢6 656
#15
COLLAR
$9.91¢4 956
#16
Bolt, Flange
$5.36¢2 681
#17
NUT, SELF-LOCKING
$8.09¢4 044
#18
WASHER, plate
$6.88¢3 438
#19
BRACKET, BATTERY B
$8.68¢4 338
#20
RIVET, BLIND
$6.91¢3 456
#21
BOLT, FLANGE
$11.43¢5 713
#22
NUT, FLANGE
$2.10¢1 050
#23
WASHER, PLATE
$7.34¢3 669
#24
BRACKET, FRONT LOWER 1
$43.43¢21 713
#25
BRACKET, FRONT LOWER 2
$43.43¢21 713
#26
BOLT, FLANGE
$6.78¢3 388
#27
BOLT, FLANGE
$20.74¢10 369
#28
NUT, FLANGE
$2.10¢1 050
#29
WASHER, plate
$7.41¢3 706
#30
BOLT, FLANGE
$9.98¢4 988
#31
BRACKET, REAR UPPER 1
$31.31¢15 656
#32
BRACKET, REAR UPPER 2
$35.14¢17 569
#33
BOLT, FLANGE
$6.78¢3 388
#34
GUARD, ENGINE 1
$143.71¢71 856
#35
BOLT, WITH WASHER
$5.72¢2 863
#36
DAMPER, PLATE
$3.02¢1 513
#37
DAMPER, RUBBER 1
$17.41¢8 706
#38
HOLDER, CLUTCH CABLE
$20.56¢10 281
#39
BOX, SPARK PLUG
$11.43¢5 713
#39
BOLT, BUTTON HEAD
$2.91¢1 456
#40
CLAMP, WIRE HARNESS 1
$25.15¢12 575
#41
BOLT
$6.19¢3 094
#42
HOLDER, CLUTCH CAB
$14.59¢7 294
#43
BOLT, BUTTON HEAD
$2.91¢1 456
#44
CLAMP
$4.56¢2 281
#45
COVER, SIDE 5
$9.81¢4 906
#46
COLLAR
$8.09¢4 044
#47
BOLT, FLANGE
$3.96¢1 981
#48
COVER, SIDE 6
$10.30¢5 150
#49
DAMPER, locating 1
$26.63¢13 313
#50
DAMPER, LOCATING 2
$18.13¢9 063
#51
DAMPER, LOCATING 3
$12.75¢6 375
#52
WRENCH, HEXAGON
$34.86¢17 431
#54
CAP
$7.86¢3 931
#55
CASE, CAP
$5.80¢2 900
