SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

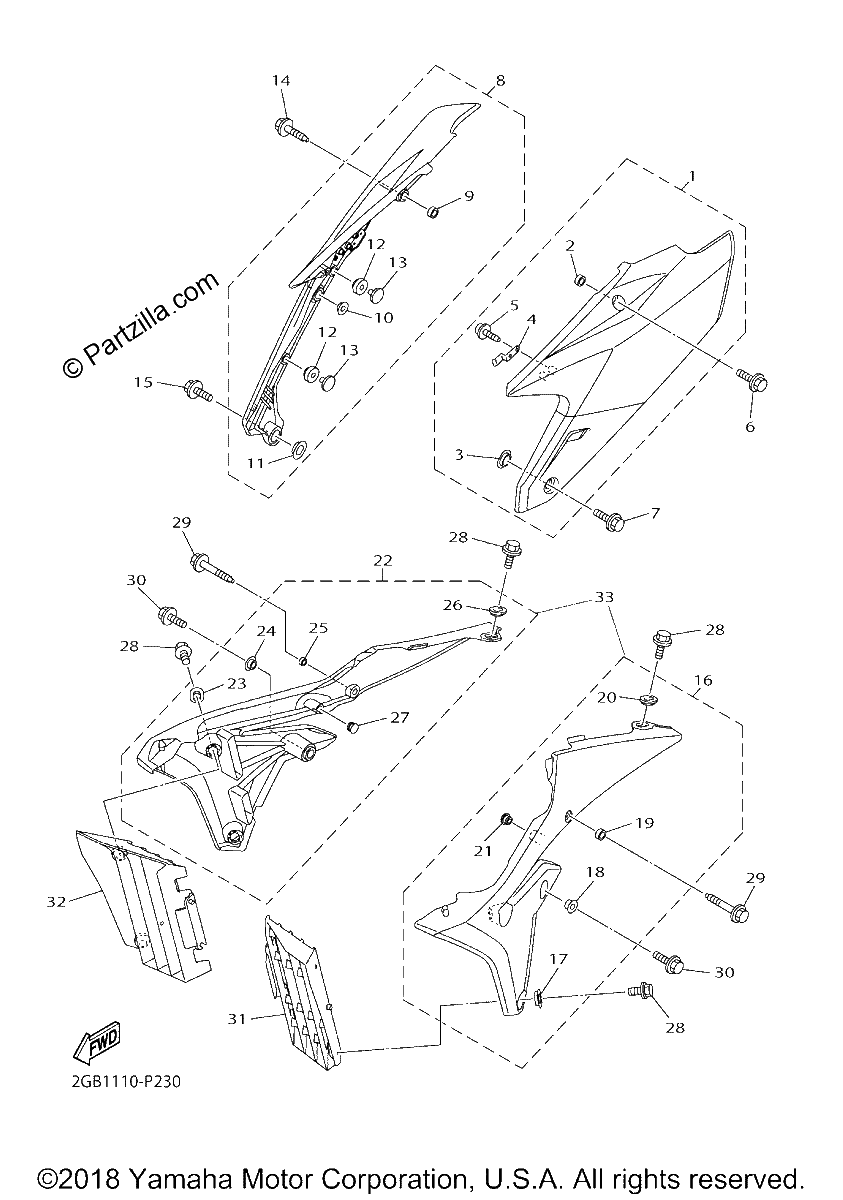

Diagrama de SIDE COVER

Repuestos

#1
1SL-21710-00-00
SIDE COVER ASSY 1
$30.44¢15 220
1
#2
90387-08057-00
Collar
$7.70¢3 852
1
#3
5TA-21749-00-00
Collar
$10.57¢5 284
1
#4
1SL-2176M-00-00
HOOK
$4.19¢2 093
1
#5
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#6
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#7
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#8
2GB-21720-10-00
SIDE COVER ASSY 2
$113.65¢56 827
1
#9
90387-08057-00
Collar
$7.70¢3 852
1
#10
5BE-21749-00-00
Collar
$5.27¢2 633
1
#11
5TA-21749-00-00
Collar
$10.57¢5 284
1
#12
1SL-21719-00-00
Grommet
$14.52¢7 262
1
#13
1DX-21746-01-00
DAMPER (replaces 1DX-21746-00-00)
$21.82¢10 908
1
#14
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#15
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#16
2GB-217R0-40-00
SIDE COVER INSERT AS
$262.91¢131 457
1
#16
1SL-21730-00-00
SIDE COVER ASSY 3
$39.78¢19 889
1
#17
17D-21749-00-00
Collar
$15.65¢7 826
1
#18
90387-11009-00
Collar
$5.68¢2 841
1
#19
90387-06106-00
COLLAR
$5.93¢2 967
1
#20
1SL-21748-00-00
Collar
$10.38¢5 192
1
#21
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#22
2GB-217S0-40-00
SIDE COVER INSERT AS
$262.91¢131 457
1
#22
1SL-21740-01-00
SIDE COVER ASSY 4
$92.20¢46 098
1
#23
17D-21749-00-00
Collar
$15.65¢7 826
1
#24
90387-11009-00
Collar
$5.68¢2 841
1
#25
90387-06106-00
COLLAR
$5.93¢2 967
1
#26
1SL-21748-00-00
Collar
$10.38¢5 192
1
#27
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#28
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#29
90105-06179-00
Bolt, Flange
$4.30¢2 151
1
#30
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#31
1SL-2172A-00-00
PANEL 1
$20.17¢10 085
1
#32
1SL-2172F-00-00
PANEL 2
$20.17¢10 085
1
#33
1SL-W003D-00-00
Side Cover
$151.93¢75 963
1
