HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

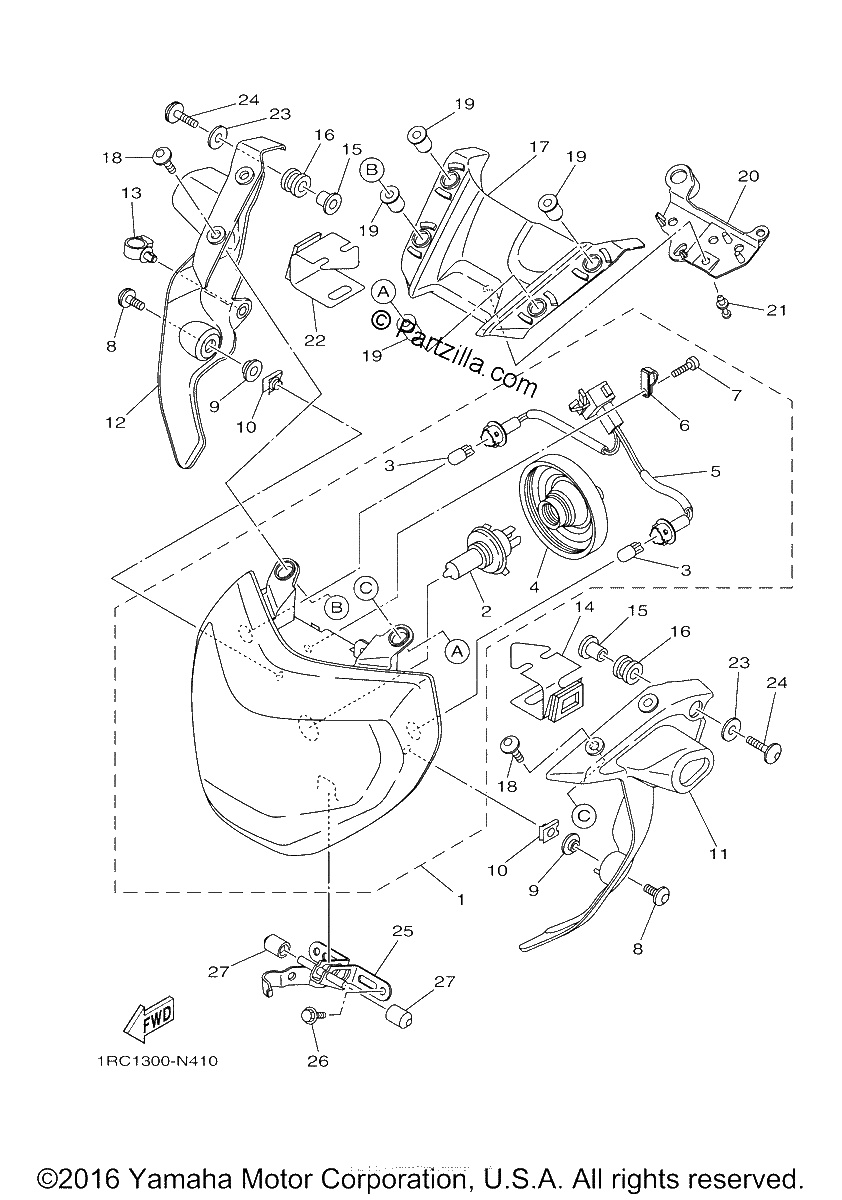

Diagrama de HEADLIGHT

Repuestos

#1
1RC-84300-00-00
HEADLIGHT ASSY
$493.41¢246 704
1
#2
1RC-84314-00-00
BULB, HEADLIGHT (12V-60/55W)
$32.02¢16 008
1
#3
1RC-84347-00-00
BULB (12V-5W)
$7.38¢3 691
1
#4
1RC-84397-00-00
COVER, SOCKET
$13.49¢6 745
1
#5
1RC-84359-00-00
CORD, HEADLIGHT
$18.33¢9 166
1
#6
1RC-84746-00-00
PLATE, SEAT BASE
$4.05¢2 024
1
#7
1RC-84724-00-00
SCREW, LENS FITTING
$2.78¢1 392
1
#8
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#9
90387-06170-00
COLLAR
$6.83¢3 415
1
#10
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#11
1RC-2831V-00-P0
STAY, HEAD LIGHT 1 | MBL2
$67.86¢33 931
1
#12
1RC-2832V-00-P0
STAY, HEAD LIGHT 2 | MBL2
$67.86¢33 931
1
#13
90464-18002-00
CLAMP
$7.59¢3 795
1
#14
1RC-84152-00-00
GROMMET
$8.75¢4 376
1
#15
90387-07391-00
COLLAR
$8.49¢4 244
1
#16
90480-14604-00
GROMMET
$8.13¢4 065
1
#17
1RC-84369-00-00
COVER 1
$6.83¢3 415
1
#18
90111-06123-00
BOLT,HEX. SOCKET BUTTON
$3.44¢1 719
1
#19
90179-06072-00
NUT
$5.65¢2 823
1
#20
1RC-8431U-00-00
HOLDER
$6.01¢3 007
1
#21
90269-05005-00
RIVET
$3.29¢1 644
1
#22
1RC-84154-00-00
GROMMET
$8.75¢4 376
1
#23
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#24
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.28¢1 138
1
#25
1RC-8431R-00-00
STAY, SETTING
$42.18¢21 091
1
#26
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#27
1RC-84527-00-00
DAMPER
$2.23¢1 116
1
