FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

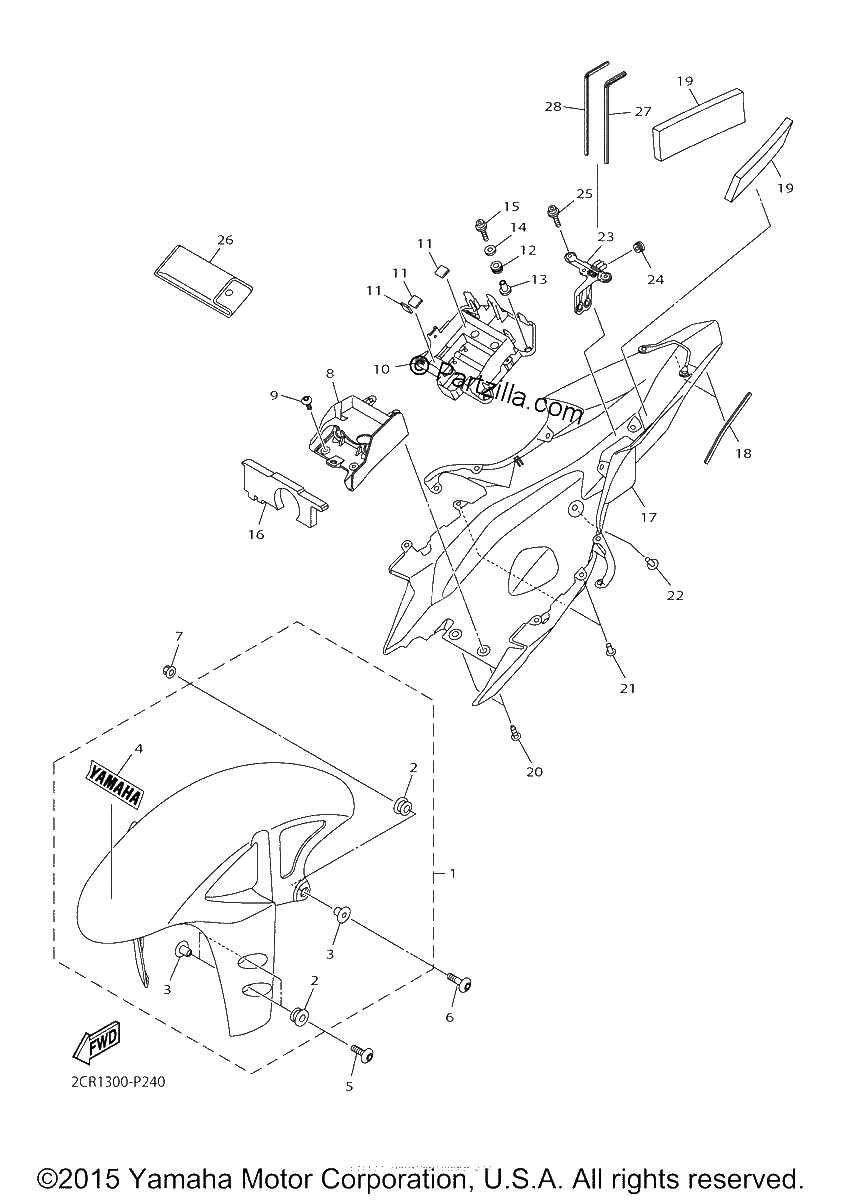

Diagrama de FENDER

Repuestos

#1
14B-Y2151-50-33
FRONT FENDER ASSY | Use for Color YAMAHA BLACK ( YB / 0033 )
$196.31¢98 156
1
#2
90480-12072-00
GROMMET
$7.94¢3 969
1
#3
90387-06159-00
Collar
$7.60¢3 800
1
#4
99241-00080-00
EMBLEM, YAMAHA
$14.18¢7 088
1
#5
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
1
#6
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
1
#7
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#8
2CR-8212B-00-00
BOX, BATTERY 1
$46.69¢23 344
1
#9
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
1
#10
2CR-8212C-00-00
BOX, BATTERY 2
$27.35¢13 675
1
#11
13S-21649-00-00
DAMPER
$7.86¢3 931
1
#12
90480-13018-00
GROMMET
$7.43¢3 713
1
#13
90387-073M2-00
COLLAR
$8.70¢4 350
1
#14
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#15
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$9.70¢4 850
1
#16
2CR-21638-00-00
DAMPER 1
$10.63¢5 313
1
#17
2CR-21611-00-00
FENDER, REAR
$44.70¢22 350
1
#18
3C5-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#19
90520-20003-00
DAMPER, PLATE
$7.46¢3 731
1
#20
90269-06008-00
RIVET
$8.80¢4 400
1
#21
90269-05005-00
RIVET
$3.57¢1 787
1
#22
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#23
2CR-2117E-00-00
BRACKET, TAILLIGHT
$25.79¢12 894
1
#24
90480-10003-00
GROMMET
$7.48¢3 738
1
#25
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#26
2CR-28100-00-00
TOOL KIT
$64.41¢32 206
1
#27
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#28
14B-28164-00-00
WRENCH, HEXAGON 8
$4.49¢2 244
1
