SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

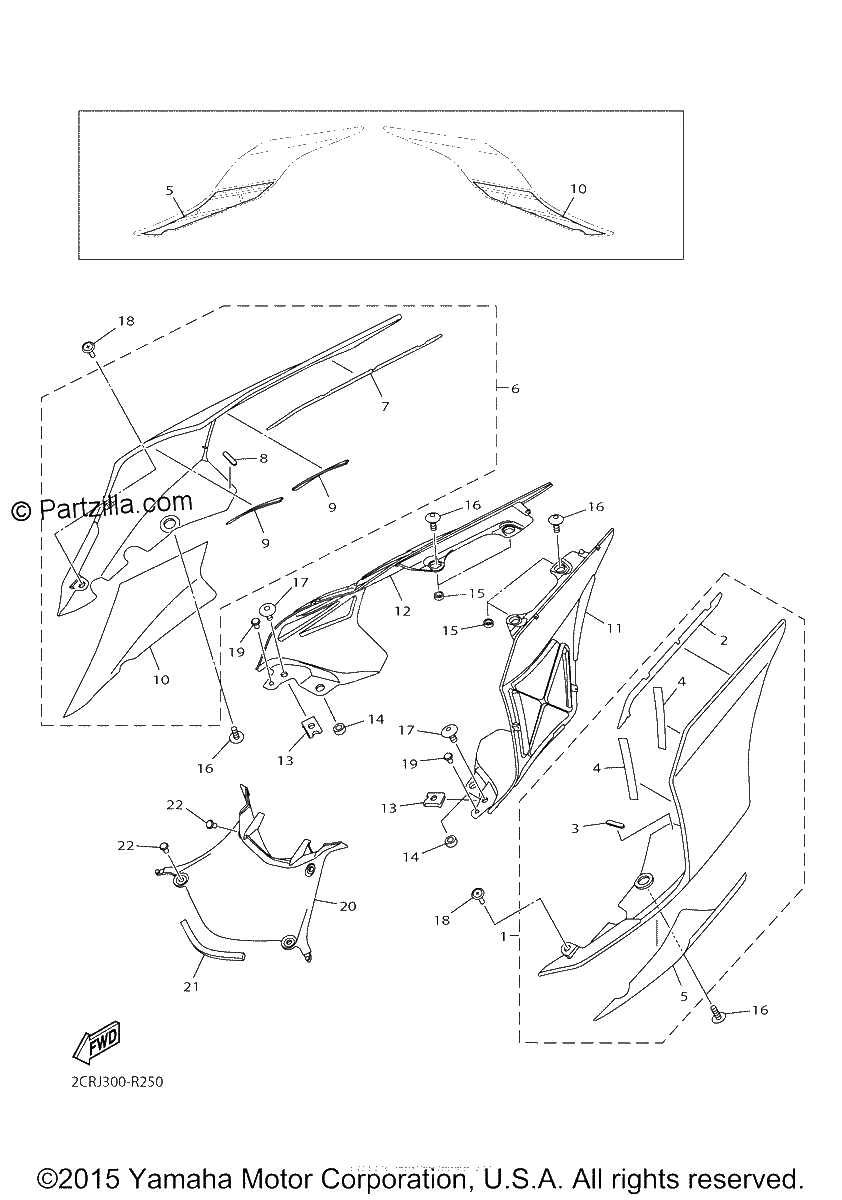

Diagrama de SIDE COVER

Repuestos

#1
2CR-W2171-81-P5
COVER, SIDE 1 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$161.31¢80 655
1
#2
2CR-2173T-01-00
TAPE 1
$8.15¢4 077
1
#3
2CR-2173R-01-00
TAPE 3
$2.08¢1 041
1
#4
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#5
2CR-2173E-40-00
GRAPHIC 1
$37.67¢18 837
1
#6
2CR-W2172-81-P5
SIDE COVER 2 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$203.04¢101 522
1
#7
2CR-2173U-01-00
TAPE 2
$10.59¢5 296
1
#8
2CR-2173R-01-00
TAPE 3
$2.08¢1 041
1
#9
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#10
2CR-2173F-40-00
GRAPHIC 2
$21.49¢10 747
1
#11
2CR-21731-00-00
COVER, SIDE 3
$28.69¢14 346
1
#12
2CR-21741-00-00
COVER, SIDE 4
$25.96¢12 978
1
#13
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#14
90387-06106-00
COLLAR
$5.93¢2 967
1
#15
90387-06069-00
COLLAR
$7.28¢3 640
1
#16
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.44¢2 720
1
#17
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#18
90269-06001-00
RIVET
$5.93¢2 967
1
#19
90269-05005-00
RIVET
$3.29¢1 644
1
#20
2CR-2171E-00-00
COVER, SIDE 5
$35.56¢17 779
1
#21
4C8-21747-00-00
DAMPER
$6.51¢3 254
1
#22
90269-05001-00
RIVET
$2.50¢1 248
1
