CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

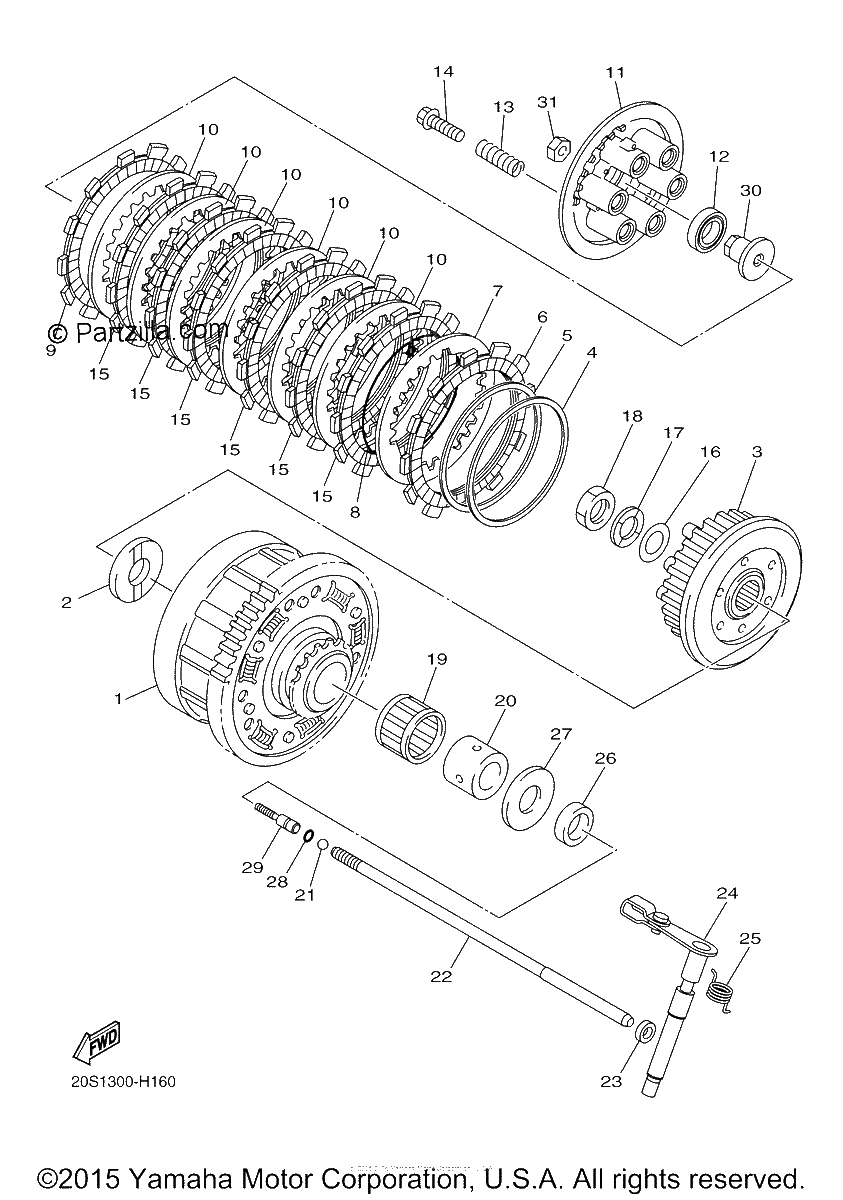

Diagrama de CLUTCH

Repuestos

#1
20S-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$542.80¢271 400
1
#2
5EB-16154-00-00
PLATE, THRUST 1
$26.88¢13 438
1
#3
20S-16371-10-00
BOSS, CLUTCH
$215.51¢107 756
1
#4
20S-16384-10-00
PLATE, SEAT
$22.71¢11 356
1
#5
5LV-16383-00-00
SPRING.,CUSHION
$52.75¢26 375
1
#6
5Y1-16331-01-00
PLATE, FRICTION 2
$30.88¢15 438
1
#7
3J2-16324-00-00
PLATE,CLUTCH 1
$12.50¢6 250
1
#8
20S-16385-00-00
RING SET
$8.03¢4 013
1
#9
4H7-16321-02-00
PLATE, FRICTION
$23.89¢11 944
1
#10
3J2-16324-00-00
PLATE,CLUTCH 1
$12.50¢6 250
1
#11
20S-16351-00-00
PLATE, PRESSURE 1
$93.65¢46 825
1
#12
93306-00315-00
BEARING
$33.26¢16 631
1
#13
90501-225A9-00
SPRING, COMPRESSION
$8.97¢4 488
1
#14
90119-06263-00
BOLT, WITH WASHER
$7.43¢3 713
1
#15
5LV-16321-20-00
Plate, Friction
$30.05¢15 025
1
#16
90201-20030-00
WASHER, PLATE
$7.31¢3 656
1
#17
90208-20001-00
WASHER, CONICAL SPRING
$17.49¢8 744
1
#18
90179-20007-00
NUT
$15.14¢7 569
1
#19
93310-340N8-00
BEARING,CYL.#10
$48.22¢24 112
1
#20
90387-25024-00
Collar
$38.27¢19 138
1
#21
93511-32027-00
BALL
$7.34¢3 669
1
#22
20S-16357-00-00
ROD, PUSH 2
$57.09¢28 544
1
#23
93109-08061-00
OIL SEAL
$6.76¢3 381
1
#24
20S-16380-00-00
PUSH LEVER ASSY
$110.55¢55 275
1
#25
90508-18052-00
SPRING, TORSION
$6.50¢3 250
1
#26
90201-25634-00
WASHER, PLATE
$11.29¢5 644
1
#27
1AE-16164-00-00
PLATE,THRUST 2
$18.38¢9 188
1
#28
93210-06632-00
O-Ring
$7.94¢3 969
1
#29
20S-16356-00-00
ROD, PUSH 1
$23.46¢11 731
1
#30
20S-16358-00-00
PLATE, PUSH
$16.18¢8 088
1
#31
95380-06600-00
NUT, HEXAGON
$5.05¢2 525
1
