FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

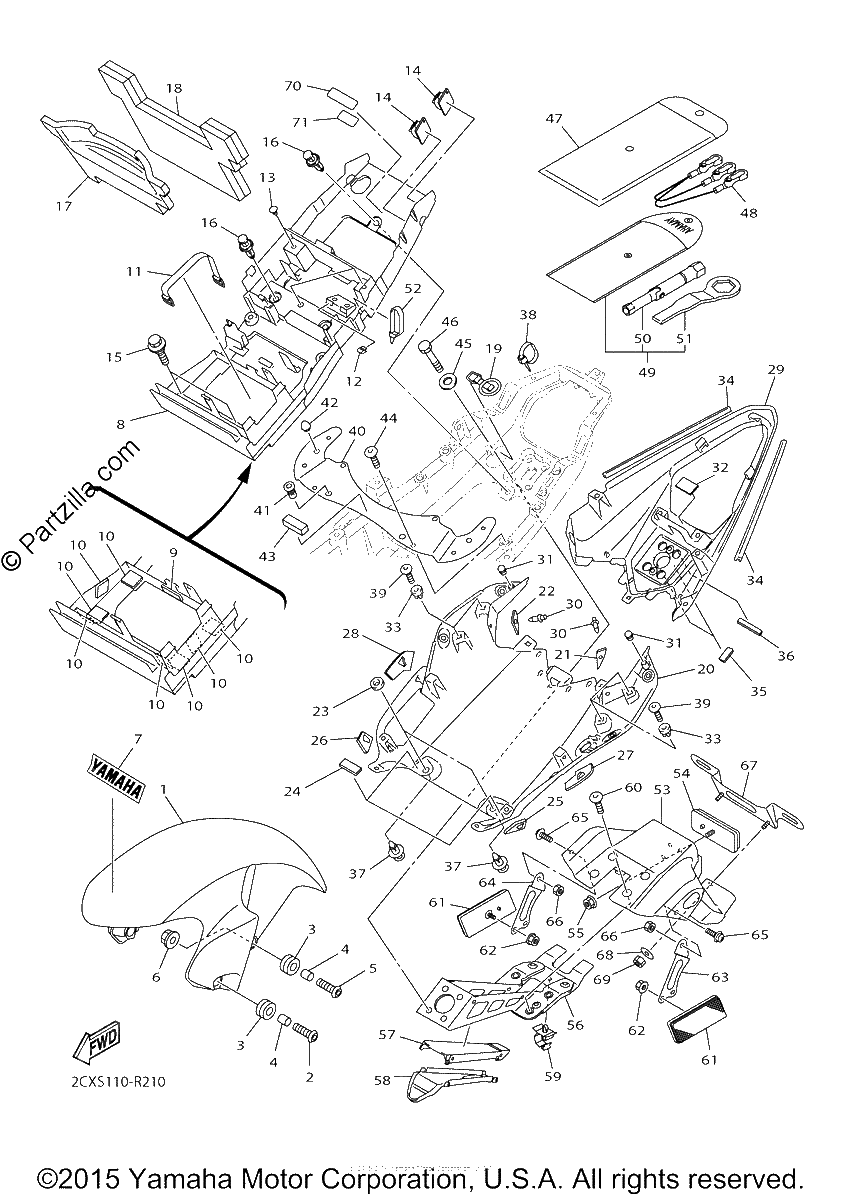

Diagrama de FENDER

Repuestos

#1
2C0-21511-00-33
FENDER, FRONT | Use for Color YAMAHA BLACK ( YB / 0033 )
$197.21¢98 606
1
#2
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
1
#3
90480-14003-00
GROMMET
$7.43¢3 713
1
#4
90387-06057-00
COLLAR
$7.34¢3 669
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
1
#6
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#7
99241-00080-00
EMBLEM, YAMAHA
$14.18¢7 088
1
#8
13S-8212B-00-00
BOX, BATTERY 1
No Disponible
1
#9
51Y-21639-00-00
DAMPER 2
$6.45¢3 225
1
#10
13S-21649-00-00
DAMPER
$7.86¢3 931
1
#11
133-82131-00-00
BAND, BATTERY
$25.96¢12 981
1
#12
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#13
90338-07180-00
PLUG
$6.76¢3 381
1
#14
90464-13185-00
CLAMP
$4.59¢2 294
1
#15
90109-06171-00
BOLT
$7.71¢3 856
1
#16
90269-07010-00
RIVET
$4.45¢2 225
1
#17
13S-21652-00-00
PROTECTOR
$30.92¢15 462
1
#18
13S-24140-00-00
DAMPER PLATE ASSY
$25.95¢12 975
1
#19
13S-21376-00-00
BAND, TOOL
$5.84¢2 919
1
#20
13S-21611-00-PC
FENDER, REAR | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$190.49¢95 244
1
#21
13S-2172P-00-00
SEAT
$13.69¢6 844
1
#22
13S-2173P-00-00
SEAT 2
$13.75¢6 875
1
#23
13S-21735-00-00
SEAL 2
$9.00¢4 500
1
#24
4D9-21717-00-00
DAMPER
$1.10¢550
1
#25
13S-21669-00-00
SEAL
$9.90¢4 950
1
#26
13S-216A2-00-00
SEAL, 2
$9.86¢4 931
1
#27
13S-216A3-00-00
SEAL, 3
$10.04¢5 019
1
#28
13S-216A4-00-00
SEAL, 4
$10.14¢5 069
1
#29
13S-2162R-00-P9
FENDER 2 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$207.97¢103 988
1
#30
90269-06001-00
RIVET
$6.45¢3 225
1
#31
90338-07180-00
PLUG
$6.76¢3 381
1
#32
5GM-27445-00-00
PLATE 1
$7.95¢3 975
1
#33
90480-08005-00
GROMMET
$7.48¢3 738
1
#34
13S-21732-00-00
SEAL 1
$19.38¢9 688
1
#35
13S-21575-00-00
SEAL 1
$8.38¢4 188
1
#36
13S-2173N-00-00
SEAL 4
$10.30¢5 150
1
#37
90269-07010-00
RIVET
$4.45¢2 225
1
#38
90464-15195-00
CLAMP
$3.30¢1 650
1
#39
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#39
2C0-21629-11-00
GUARD, MUD
$37.80¢18 900
1
#40
13S-21131-00-00
BRACKET
$88.89¢44 444
1
#41
90179-06010-00
NUT
$5.26¢2 631
1
#42
4G0-21639-00-00
DAMPER 2
$6.91¢3 456
1
#43
5YT-24665-00-00
DAMPER
$7.60¢3 800
1
#44
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#45
13S-21615-00-00
WASHER, SPECIAL 1
$16.06¢8 031
1
#46
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#47
2C0-28100-00-00
TOOL KIT
$65.53¢32 763
1
#48
2C0-21370-00-00
HELMET HANGER ASSY
$37.80¢18 900
1
#49
2C0-28110-00-00
TOOL KIT, 2
$47.27¢23 638
1
#50
4XV-2814F-00-00
BOX, SPARK PLUG
$40.96¢20 481
1
#51
4FM-28135-00-00
SPANNER, SPECIAL
$18.09¢9 044
1
#52
90465-13M11-00
CLAMP
$6.81¢3 406
1
#54
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#55
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#56
13S-21640-00-00
REAR STAY COMP.
$197.10¢98 550
1
#57
2C0-2163A-00-00
COVER, REAR FENDER 1
$12.76¢6 381
1
#58
2C0-2163E-00-00
COVER, REAR FENDER 2
$12.76¢6 381
1
#59
90464-14228-00
CLAMP
$5.29¢2 644
1
#60
90109-06182-00
BOLT
$13.71¢6 856
1
#61
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#62
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#63
2C0-21688-00-00
BRACKET, REAR STAY
$12.84¢6 419
1
#64
2C0-21689-00-00
BRACKET, REAR STAY 2
$12.54¢6 269
1
#65
90159-06011-00
SCREW, WITH WASHER
$7.39¢3 694
1
#66
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#67
5MT-84751-00-00
BRACKET, LICENSE
$29.30¢14 650
1
#68
90201-06057-00
WASHER, PLATE
$4.49¢2 244
1
#69
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#70
3JJ-28446-A1-00
LABEL, CAUTION
$4.94¢2 469
1
#71
3TB-24877-A0-00
LABEL, CAUTION
$5.32¢2 662
1
