SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

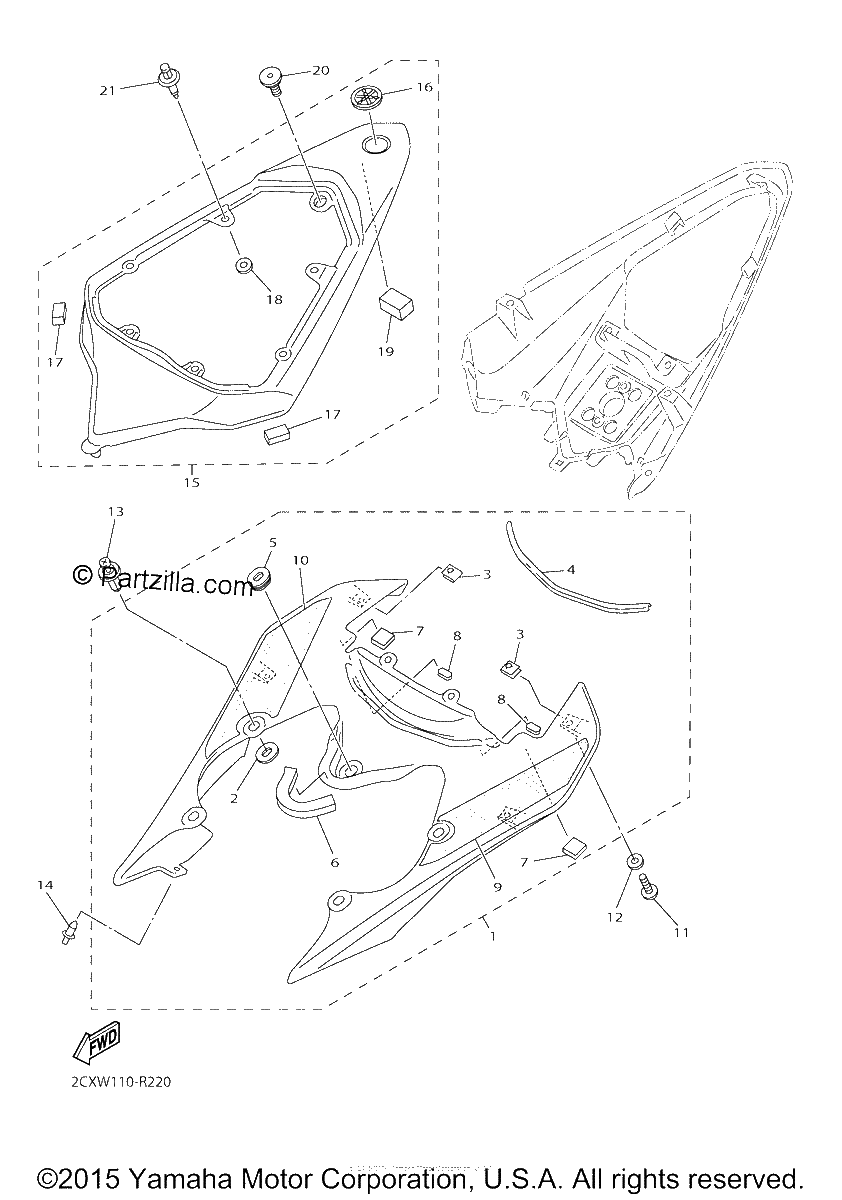

Diagrama de SIDE COVER

Repuestos

#1
13S-Y2171-60-PC
COVER, SIDE 1 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$234.09¢117 047
1
#2
5PW-2174X-00-00
DAMPER
$6.51¢3 254
1
#3
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#4
13S-2171L-00-00
MOLE, SIDE COVER 1
$7.04¢3 519
1
#5
90480-01558-00
Grommet
$4.31¢2 156
1
#6
2C0-28237-00-00
DAMPER 3
$7.31¢3 657
1
#7
1UF-15379-00-00
SEAL
$7.11¢3 553
1
#8
5SL-28416-00-00
DAMPER 2
$7.31¢3 657
1
#9
2CX-2173E-10-00
GRAPHIC 1
$17.16¢8 579
1
#10
2CX-2173F-10-00
GRAPHIC 2
$17.16¢8 579
1
#11
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#12
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#13
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#14
90269-06008-00
RIVET
$8.10¢4 048
1
#15
13S-21720-00-P9
SIDE COVER ASSY 2 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$202.73¢101 367
1
#16
4KN-2836B-10-00
TUNING FORK MARK
$17.39¢8 694
1
#17
13S-21639-00-00
DAMPER 2
$7.31¢3 657
1
#18
5SL-84753-00-00
DAMPER
$5.93¢2 967
1
#19
1WG-2143A-00-00
CAP
$7.42¢3 709
1
#20
90109-06248-00
BOLT
$16.95¢8 476
1
#21
90269-06001-00
RIVET
$5.93¢2 967
1
