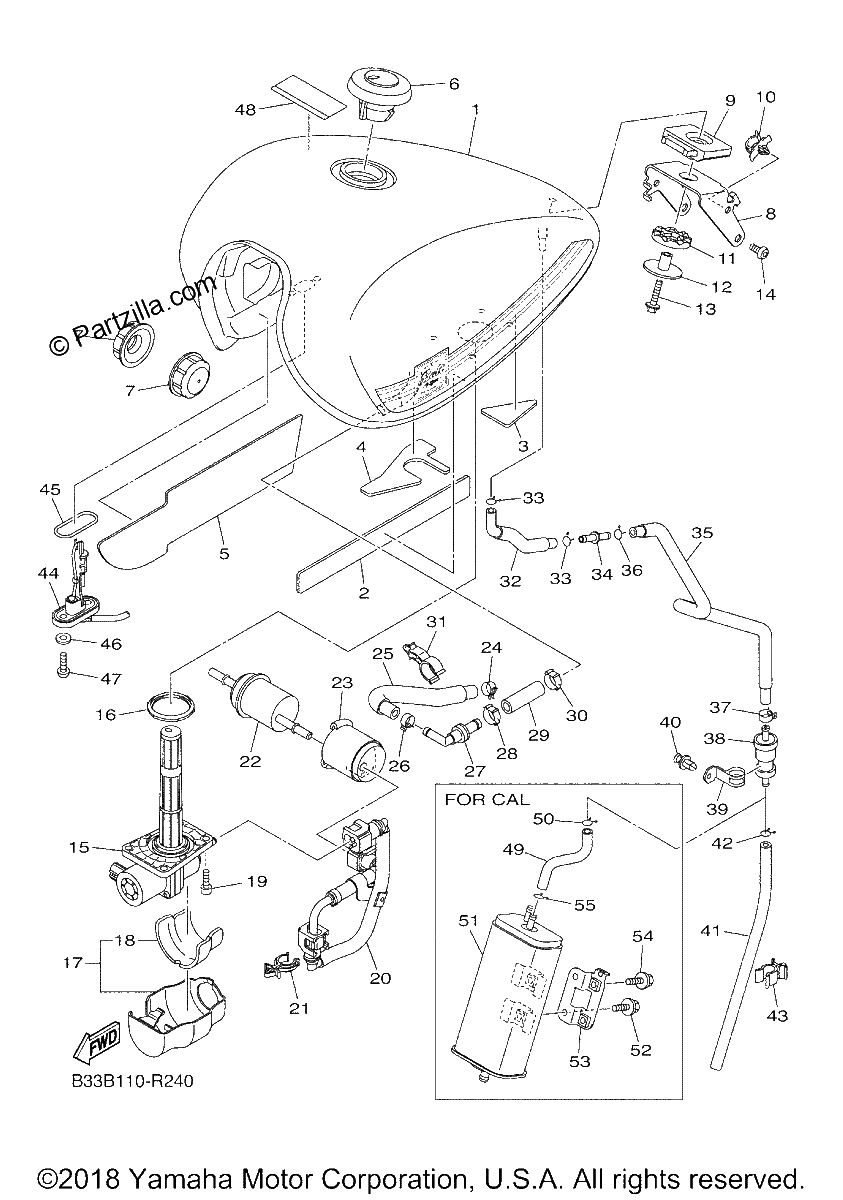

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$642.84¢321 419
#2
DAMPER, PLATE 1
$10.58¢5 290
#3
DAMPER, PLATE 2
$5.89¢2 944
#4
DAMPER, PLATE 3
$10.15¢5 077
#5
PROTECTOR, FUEL TANK (replaces 1TP-24141-00-00)
$37.58¢18 791
#6
CAP ASSY
$125.82¢62 911
#7
DAMPER, LOCATING 1
$4.74¢2 369
#8
BRACKET, TANK FITTING
$16.97¢8 487
#9
DAMPER, LOCATING 2
$11.60¢5 802
#10
CLAMP
$5.37¢2 685
#11
DAMPER, LOCATING 3
$4.00¢2 001
#12
COLLAR
$9.51¢4 755
#13
BOLT, FLANGE
$1.82¢909
#14
BOLT, BUTTON HEAD
$6.96¢3 479
#15
FUEL PUMP COMP.
$471.58¢235 790
#16
O-RING
$20.00¢9 999
#17
COVER
$14.88¢7 440
#18
DAMPER, PLATE 4
$3.66¢1 829
#19
BOLT
$2.71¢1 357
#20
FUEL PIPE ASSY. 2
$161.52¢80 759
#21
CLAMP
$2.78¢1 392
#22
FILTER
$111.37¢55 683
#23
BAND 1
$10.61¢5 307
#24
CLIP
$6.83¢3 415
#25
PIPE 5
$40.41¢20 205
#26
CLIP
$6.83¢3 415
#27
CHECK VALVE ASSY
$42.61¢21 304
#28
CLIP
$5.65¢2 823
#29
PIPE 4
$9.17¢4 583
#30
CLIP
$5.65¢2 823
#31
CLAMP
$6.39¢3 197
#32
PIPE 3
$19.99¢9 994
#33
Clip
$2.74¢1 368
#34
JOINT
$6.51¢3 254
#35
PIPE 6
$44.85¢22 425
#36
Clip
$2.74¢1 368
#37
CLIP
$1.99¢995
#38
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
#39
CLAMP 2
$6.64¢3 318
#40
RIVET
$3.29¢1 644
#41
HOSE (L400)
$20.92¢10 459
#42
Clip
$2.74¢1 368
#43
CLAMP
$1.13¢564
#44
SENDER UNIT ASSY, FU (replaces 1TP-85752-00-00)
$91.91¢45 954
#45
GASKET, SENDER UNIT
$7.38¢3 691
#46
WASHER, PLATE
$1.45¢724
#47
SCREW
$1.05¢523
#48
LABEL, CAUTION
$4.15¢2 076
#49
PIPE 1 | FOR CALIFORNIA
$12.96¢6 480
#50
Clip
$2.74¢1 368
#51
CANISTER ASSY | FOR CALIFORNIA
$325.59¢162 794
#52
BOLT,FLANGE (replaces 95802-06010-00)
$3.12¢1 558
#53
PLATE | FOR CALIFORNIA
$10.02¢5 008
#54
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#55
Clip
$2.74¢1 368
