REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

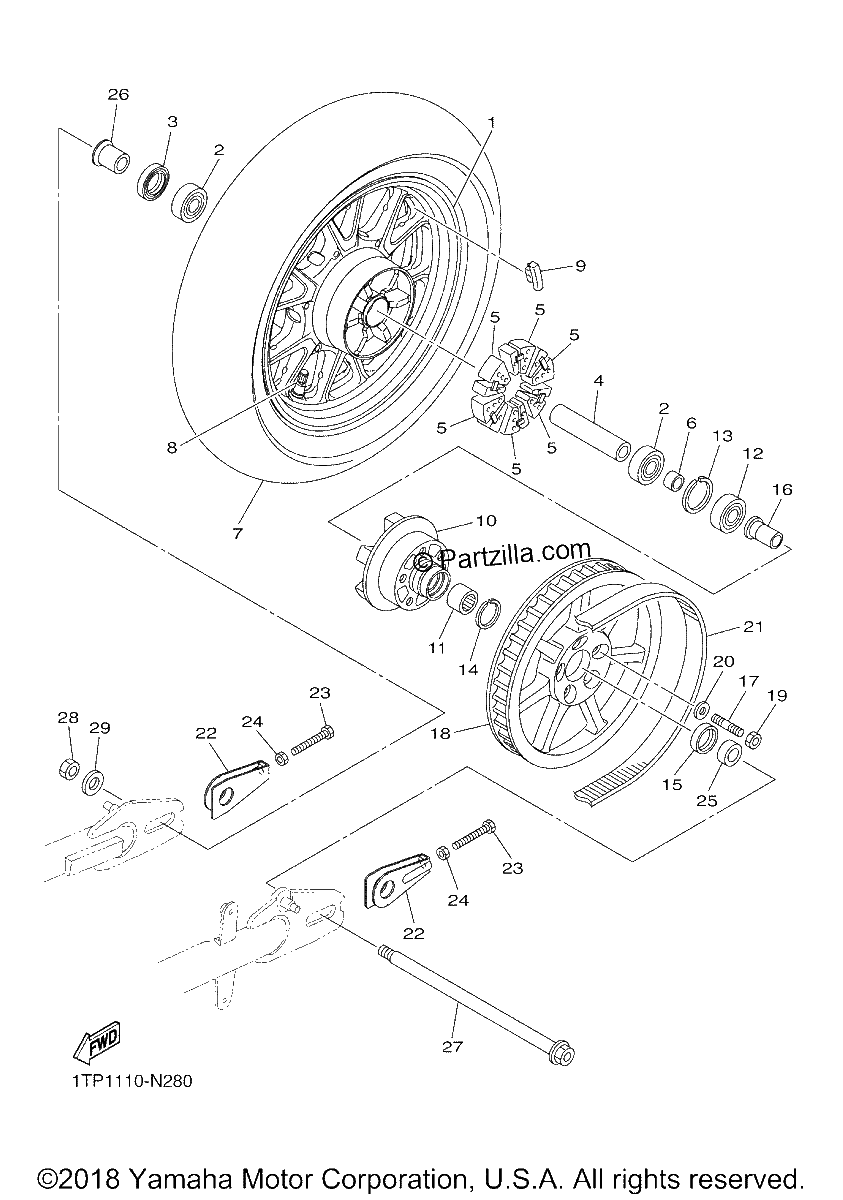

Diagrama de REAR WHEEL

Repuestos

#1
1TP-25338-10-4X
CAST WHEEL, REAR
$627.89¢313 944
1
#2
93306-20417-00
BEARING
$38.35¢19 176
1
#3
93106-28023-00
OIL SEAL
$11.64¢5 819
1
#4
1TP-25317-00-00
SPACER, BEARING
$16.26¢8 131
1
#5
4WM-25364-00-00
DAMPER
$21.40¢10 701
1
#6
1TP-25383-00-00
COLLAR, WHEEL
$20.73¢10 367
1
#8
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#9
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#9
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#9
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#10
1TP-25366-00-00
CLUTCH, HUB
$193.53¢96 767
1
#11
93311-32698-00
BEARING
$72.28¢36 139
1
#12
93306-30437-00
BEARING
$62.58¢31 292
1
#13
99009-52500-00
CIRCLIP
$11.76¢5 882
1
#14
93450-35163-00
CIRCLIP
$2.79¢1 397
1
#15
93106-30004-00
OIL SEAL
$12.03¢6 015
1
#16
4WM-25376-10-00
COLLAR, WHEEL
$42.89¢21 447
1
#17
95612-12630-00
BOLT, STUD
$9.46¢4 732
1
#18
1TP-25470-00-00
SPROCKET, DRIVEN (70T)
$698.57¢349 284
1
#19
95614-12100-00
NUT, U
$4.47¢2 237
1
#20
90201-12045-00
WASHER, PLATE
$5.65¢2 823
1
#21
1TP-46241-10-00
V-BELT (replaces 1TP-46241-00-00)
$381.57¢190 785
1
#22
1TP-25388-00-00
PULLER, CHAIN 1
$25.48¢12 742
1
#23
90101-08777-00
BOLT
$6.89¢3 444
1
#24
95317-08700-00
NUT
$7.72¢3 858
1
#25
90387-20034-00
COLLAR
$15.21¢7 607
1
#26
90387-2000B-00
COLLAR
No Disponible
1
#27
1TP-25381-00-00
AXLE, WHEEL
$99.31¢49 657
1
#28
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#29
90201-18020-00
WASHER, PLATE
$2.68¢1 340
1
