REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

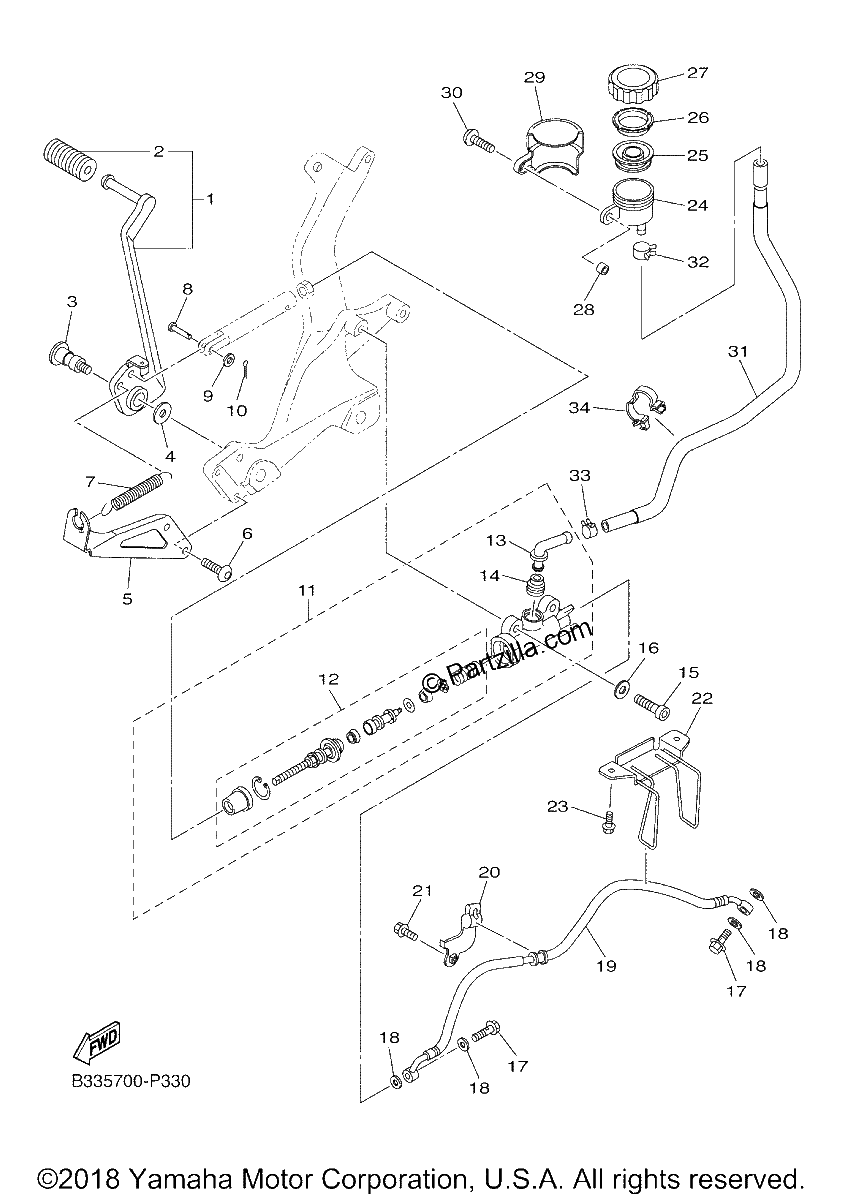

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
B33-27200-00-00
PEDAL, BRAKE
$62.94¢31 469
1
#2
5EB-18113-00-00
COVER, SHIFT PEDAL
$8.50¢4 250
1
#3
5XT-27434-10-00
BOLT (replaces 5XT-27434-00-00)
$13.65¢6 825
1
#4
90201-094G1-00
WASHER, PLATE
$8.31¢4 156
1
#5
B33-27263-00-00
BRACKET 1
$16.18¢8 088
1
#6
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#7
90506-16009-00
Spring, Tension
$4.79¢2 394
1
#8
91701-06018-00
PIN,CLEVIS (replaces 91702-06018-00)
$5.34¢2 669
1
#9
92990-06200-00
WASHER, PLAIN
$0.96¢481
1
#10
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#11
B33-2583V-00-00
RR. MASTER CYLINDE
$111.76¢55 881
1
#12
1TP-25808-00-00
CYLINDER KIT, MASTER
$60.51¢30 256
1
#13
B33-2582A-00-00
JOINT
$10.69¢5 344
1
#14
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#15
91317-08025-00
BOLT
$7.43¢3 713
1
#16
90201-082H0-00
WASHER, plate
$0.72¢363
1
#17
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#18
90430-10005-00
GASKET
$8.39¢4 194
1
#19
1TP-2581J-01-00
HOSE, BRAKE 4
$79.00¢39 500
1
#20
1TP-2588F-00-00
HOLDER, BRAKE HOSE 5
$12.13¢6 063
1
#21
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#22
1TP-2587A-00-00
HOLDER, BRAKE HOSE
$31.21¢15 606
1
#23
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#24
31A-25894-10-00
TANK, RESERVOIR
$49.16¢24 581
1
#25
360-25854-01-00
DIAPHRAGM, RESERVOIR
$24.86¢12 431
1
#26
2GU-25855-00-00
BUSH, DIAPHRAGM
$30.38¢15 188
1
#27
2KF-25852-50-00
CAP, RESERVOIR
$51.06¢25 531
1
#28
90387-06072-00
COLLAR
$7.50¢3 750
1
#29
4NK-25888-00-00
COVER, RESERVOIR TANK
$92.86¢46 431
1
#30
92014-06020-00
BOLT, BUTTON HEAD
$8.24¢4 119
1
#31
B33-25895-00-00
Hose, Reservoir
$55.38¢27 688
1
#32
90467-14057-00
CLIP
$8.97¢4 488
1
#33
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#34
90464-23239-00
CLAMP
$2.11¢1 056
1
