ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

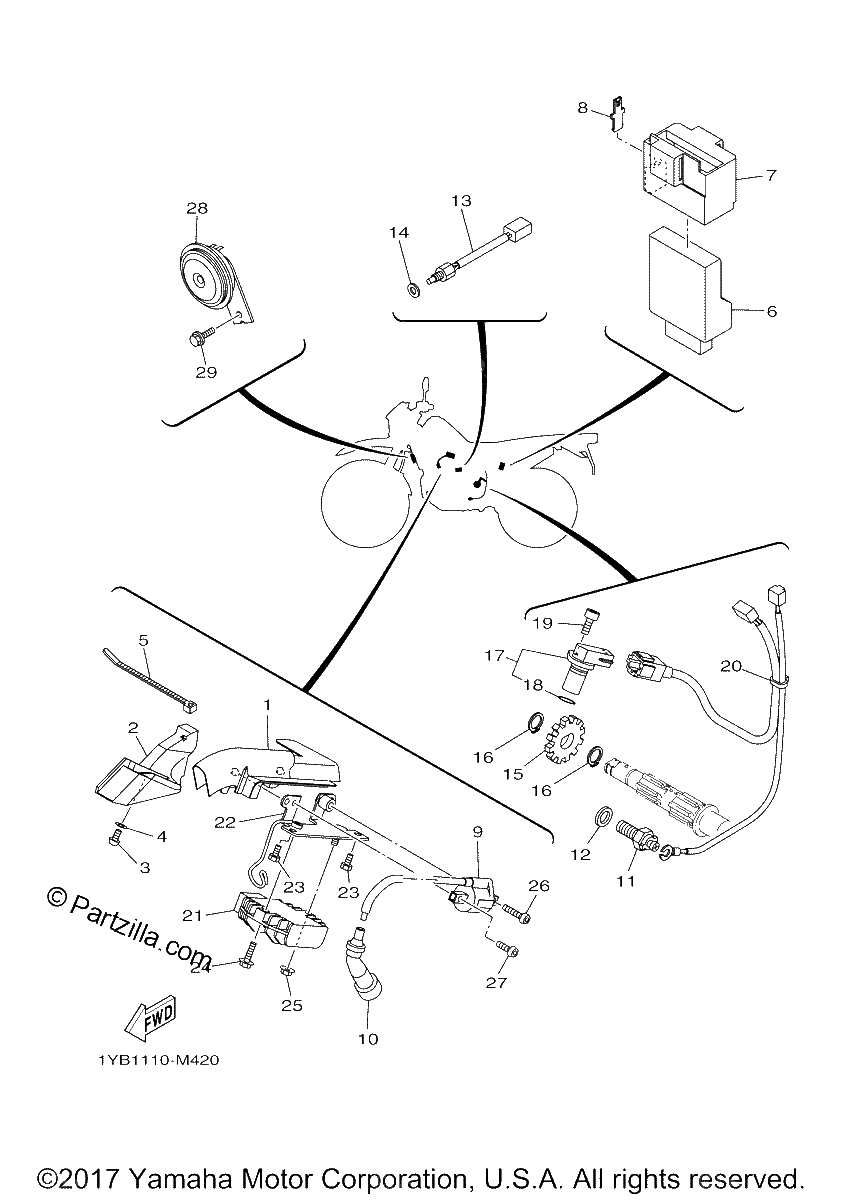

Diagrama de ELECTRICAL 2

Repuestos

#1
5XT-2117N-00-00
COVER 3
$46.30¢23 149
1
#2
5XT-2117R-00-00
COVER 4
$27.02¢13 513
1
#3
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#4
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#5
1UA-82591-00-00
BAND
$4.52¢2 260
1
#6
1YB-8591A-00-00
ENGINE CONTROL UNIT
$397.52¢198 760
1
#7
5XT-85546-10-00
BAND
$17.09¢8 545
1
#8
5XT-82171-00-00
STAY, FUSE BOX
$13.59¢6 797
1
#9
1S4-82310-01-00
IGNITION COIL ASSY (replaces 1S4-82310-00-00)
$49.59¢24 794
1
#10
3NS-82370-00-00
PLUG CAP ASY
$35.58¢17 790
1
#11
4KM-82540-00-00
NEUTRAL SWITCH ASSY
$36.73¢18 366
1
#12
90430-10148-00
Gasket
$5.21¢2 605
1
#13
5XT-83591-00-00
THERMO UNIT
$77.87¢38 933
1
#14
90430-08204-00
Gasket
$7.16¢3 582
1
#15
3C5-8354W-00-00
ROTOR This item has been discontinued and may not be available. Contact us for more information.
$100.31¢50 157
1
#16
99009-17400-00
Circlip
$4.28¢2 139
1
#17
1S4-83755-01-00
SENSOR, SPEED
$111.85¢55 925
1
#18
1S4-81168-00-00
O-Ring
$6.36¢3 180
1
#19
91312-06014-00
bolt
$5.20¢2 599
1
#20
3C5-82309-00-00
WIRE, SUB LEAD This item has been discontinued and may not be available. Contact us for more information.
$43.44¢21 718
1
#21
5GT-81960-00-00
RECTIFIER/REG. ASSY
$246.23¢123 113
1
#22
5XT-21359-10-00
BRACKET, COIL
$34.70¢17 348
1
#22
1YB-21359-00-00
BRACKET, COIL
$45.79¢22 897
1
#23
97012-06010-00
bolt
$0.52¢259
1
#24
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#25
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#26
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#27
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#28
3C5-83371-00-00
HORN
$55.51¢27 755
1
#29
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
