HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

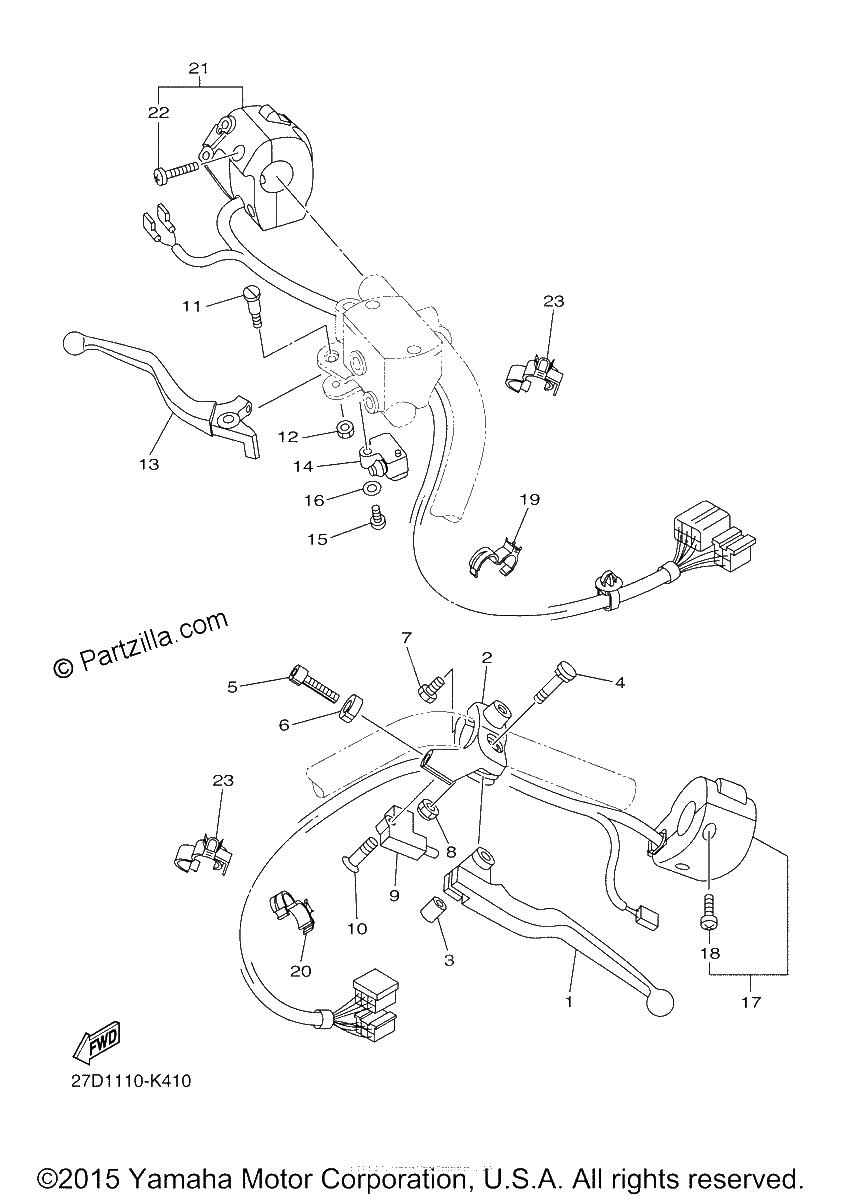

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
5BN-83912-20-00
LEVER 1
$51.06¢25 531
1
#2
5BN-82911-20-00
HOLDER, LEVER 1
$57.01¢28 506
1
#3
4TR-83913-00-00
COLLAR, LEVER 1
$7.94¢3 969
1
#4
4TR-83945-10-00
BOLT, LEVER
$16.32¢8 163
1
#5
90123-08046-00
BOLT
$10.94¢5 469
1
#6
90179-08148-00
NUT
$4.64¢2 319
1
#7
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$3.02¢1 513
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#9
3YX-82917-01-00
SWITCH
$47.30¢23 650
1
#10
98702-03020-00
SCREW, FLAT HEAD
$1.95¢975
1
#11
5VS-2589F-00-00
BOLT, LEVER
$14.65¢7 325
1
#12
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#13
3D8-83922-10-00
LEVER 2
$51.06¢25 531
1
#14
36Y-82917-10-00
SWITCH
$50.96¢25 481
1
#15
98580-04014-00
SCREW, PAN HEAD
$3.33¢1 663
1
#16
92990-04600-00
WASHER, PLATE
$1.20¢600
1
#17
27D-83973-00-00
SWITCH, HANDLE 3
$195.80¢97 900
1
#18
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#19
90464-15192-00
CLAMP
$7.34¢3 669
1
#20
90464-20191-00
Clamp
$8.76¢4 381
1
#21
27D-83972-00-00
SWITCH, HANDLE 4
$420.88¢210 438
1
#22
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#23
90464-15192-00
CLAMP
$7.34¢3 669
1
