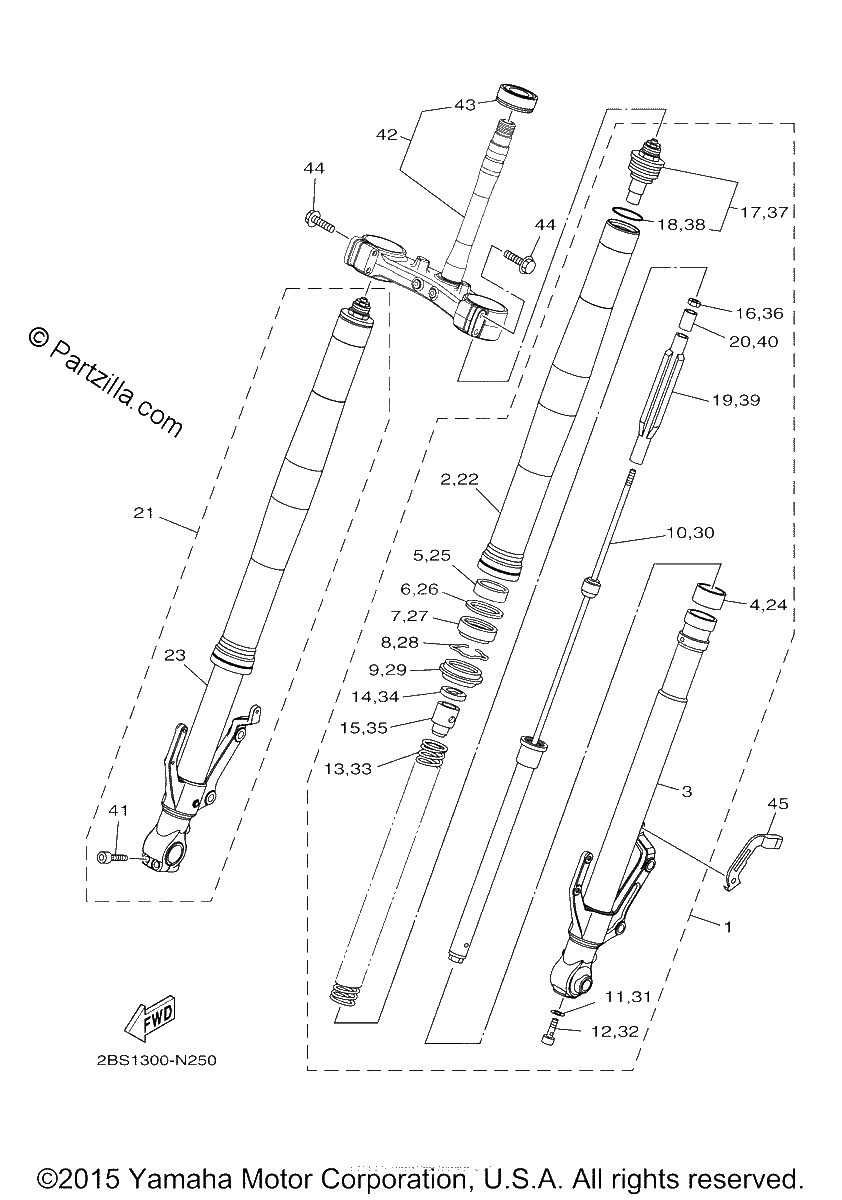

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1298.34¢649 169
#2
TUBE, OUTER
$771.30¢385 653
#3
INNER TUBE COMP. 1
$564.96¢282 480
#4
PISTON, FRONT FORK
$31.68¢15 841
#5
METAL, SLIDE 1 | (KYB)
$29.91¢14 956
#6
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#7
OIL SEAL
$22.99¢11 494
#8
RING, SNAP | (KYB)
$9.49¢4 744
#9
SEAL, DUST
$22.10¢11 051
#10
CYLINDER COMP., FRONT FORK
$541.30¢270 653
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$22.08¢11 040
#13
SPRING, FRONT FORK
$110.94¢55 470
#14
WASHER
$11.73¢5 865
#15
SPACER
$25.33¢12 667
#16
NUT
$7.28¢3 640
#17
BOLT, CAP
$201.12¢100 562
#18
O-RING
$7.38¢3 691
#19
GUIDE, SPRING
$48.23¢24 115
#20
COLLAR
$7.64¢3 818
#21
FRONT FORK ASSY (R.H)
$1298.34¢649 169
#22
TUBE, OUTER
$771.30¢385 653
#23
INNER TUBE COMP. 2
$564.96¢282 480
#24
PISTON, FRONT FORK
$31.68¢15 841
#25
METAL, SLIDE 1 | (KYB)
$29.91¢14 956
#26
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#27
OIL SEAL
$22.99¢11 494
#28
RING, SNAP | (KYB)
$9.49¢4 744
#29
SEAL, DUST
$22.10¢11 051
#30
CYLINDER COMP., FRONT FORK
$541.30¢270 653
#31
GASKET | (KYB)
$15.72¢7 860
#32
BOLT, HEXAGON SOCKET HEAD
$22.08¢11 040
#33
SPRING, FRONT FORK
$110.94¢55 470
#34
WASHER
$11.73¢5 865
#35
SPACER
$25.33¢12 667
#36
NUT
$7.28¢3 640
#37
BOLT, CAP
$201.12¢100 562
#38
O-RING
$7.38¢3 691
#39
GUIDE, SPRING
$48.23¢24 115
#40
COLLAR
$7.64¢3 818
#41
BOLT (3JP)
$5.75¢2 875
#42
UNDER BRACKET COMP.
$737.96¢368 978
#43
BEARING
$55.67¢27 836
#44
Bolt, Flange
$6.75¢3 375
#45
HOLDER, BRAKE HOSE 1
$13.03¢6 515
