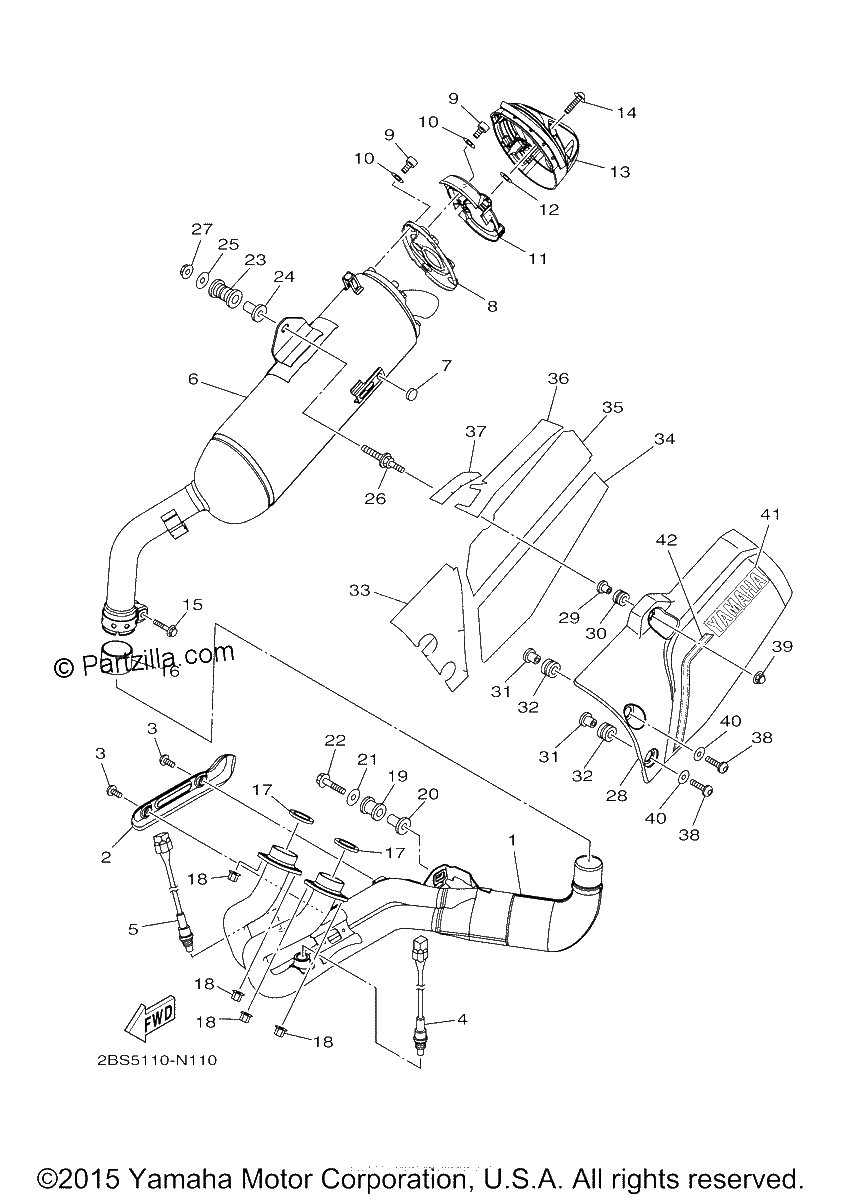

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
EXHAUST PIPE ASSY 1
$1113.74¢556 869
#2
PROTECTOR, EXHAUST PIPE
$76.44¢38 219
#3
SCREW,BIND
$0.72¢363
#4
SENSOR, OXYGEN
$296.02¢148 013
#5
SENSOR, OXYGEN
$296.36¢148 181
#6
MUFFLER COMP. 1
$1002.49¢501 244
#7
DAMPER, LOCATING 1
$6.85¢3 425
#8
BRKT.3-1
$34.16¢17 081
#9
BOLT
$7.76¢3 881
#10
WASHER, PLAIN
$0.96¢481
#11
BRACKET 4-1
$54.04¢27 019
#12
WASHER, PROTECTOR
$2.48¢1 238
#13
CAP, SILENCER 2
$274.71¢137 356
#14
BOLT, HEXAGON SOCKET HEAD
$4.45¢2 225
#15
BOLT, FLANGE
$3.74¢1 869
#16
GASKET, MUFFLER
$29.59¢14 794
#17
GASKET, EXHAUST PIPE
$12.75¢6 375
#18
NUT
$5.99¢2 994
#19
DAMPER, MUFFLER 2
$6.18¢3 088
#20
COLLAR
$12.86¢6 431
#21
WASHER, PLATE
$7.46¢3 731
#22
BOLT, FLANGE
$3.74¢1 869
#23
DAMPER, FOOTREST 2
$18.69¢9 344
#24
COLLAR
$13.93¢6 963
#25
WASHER, plate
$2.23¢1 113
#26
BOLT
$14.38¢7 188
#27
NUT, FLANGE
$2.10¢1 050
#28
PROTECTOR, MUFFLER 1
$91.51¢45 756
#29
COLLAR
$7.35¢3 675
#30
GROMMET
$5.54¢2 769
#31
COLLAR
$5.63¢2 813
#32
GROMMET
$4.75¢2 375
#33
SEAT
$34.86¢17 431
#34
SEAT
$40.55¢20 275
#35
SEAT
$27.90¢13 950
#36
SEAT 5
$16.73¢8 363
#37
SEAT, 6
$4.01¢2 006
#38
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#39
NUT, CAP
$8.18¢4 088
#40
WASHER, PLATE
$4.68¢2 338
#41
EMBLEM, YAMAHA
$24.85¢12 425
#42
GRAPHIC 1
$14.01¢7 006
