CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

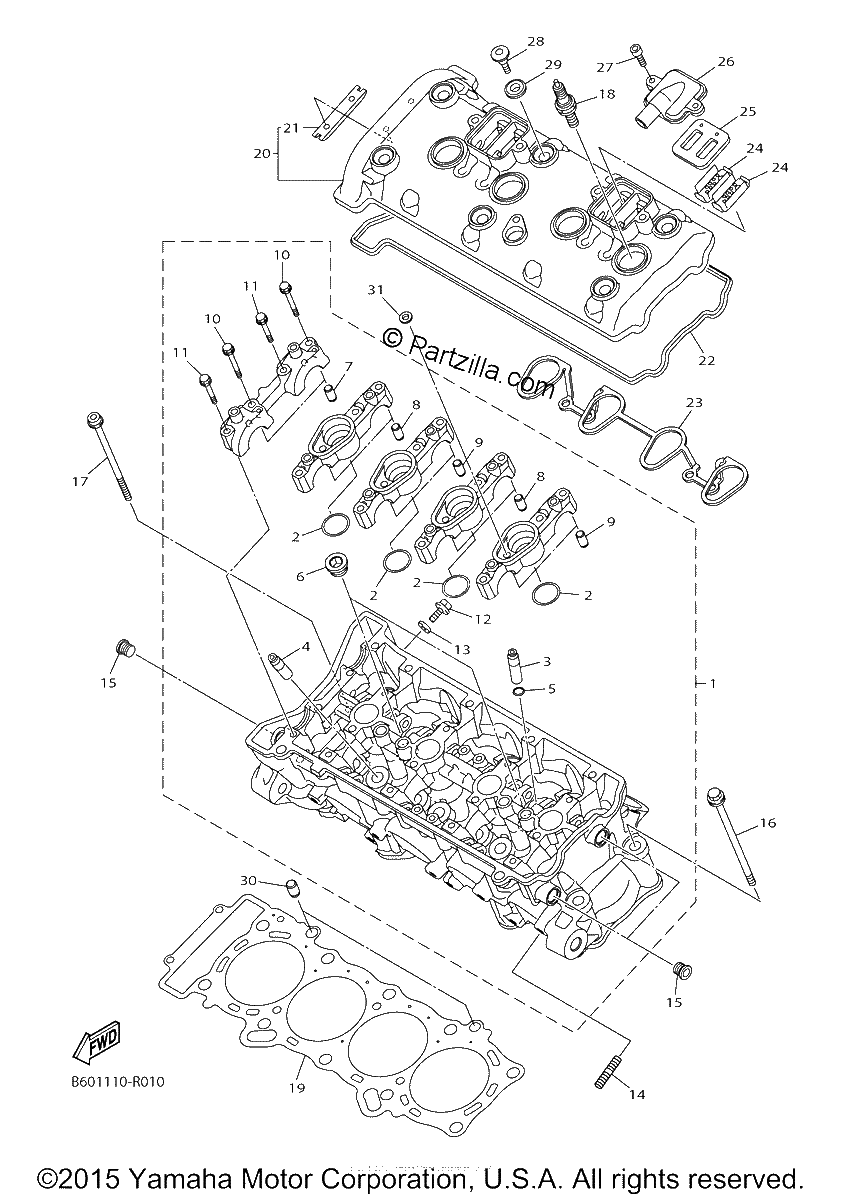

Diagrama de CYLINDER HEAD

Repuestos

#1
2CR-W1101-19-00
CYLINDER HEAD ASSY
$3085.92¢1 542 962
1
#2
93210-26658-00
O-RING
$6.88¢3 438
1
#3
2CR-11133-10-00
GUIDE, VALVE 1
$88.89¢44 444
1
#4
2CR-11134-10-00
GUIDE, VALVE 2
$88.89¢44 444
1
#5
93440-10153-00
CIRCLIP
$1.99¢994
1
#6
90340-18004-00
PLUG, STRAIGHT SCREW
$17.48¢8 738
1
#7
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#8
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#9
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#10
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#11
90105-06209-00
BOLT, FLANGE
$1.23¢613
1
#12
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#13
90430-06014-00
GASKET
$8.25¢4 125
1
#14
95612-08615-00
BOLT, STUD
$1.98¢988
1
#15
90340-12013-00
PLUG, STRAIGHT SCREW
$8.19¢4 094
1
#16
90119-09016-00
BOLT, WITH WASHER
$14.65¢7 325
1
#17
90110-06315-00
BOLT, HEXAGON SOCKET HEAD
$6.67¢3 338
1
#18
LMA-R9EJ0-00-00
LMAR9EJ NGK SPLUG
$15.19¢7 594
1
#19
2CR-11181-00-00
GASKET, CYLINDER HEAD 1
$69.03¢34 513
1
#20
2CR-11191-00-00
COVER, CYLINDER HEAD 1
$194.16¢97 081
1
#21
5BE-12241-00-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#22
2CR-11193-00-00
GASKET, HEAD COVER 1
$24.24¢12 119
1
#23
2CR-11194-00-00
GASKET, HEAD COVER 2
$14.21¢7 106
1
#24
5VY-1482K-00-00
PLATE
$4.65¢2 325
1
#25
5SL-14890-10-00
REED VALVE ASSY
$101.99¢50 994
1
#26
14B-14899-01-00
CAP, CASE
$33.54¢16 769
1
#27
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#28
90109-066F0-00
BOLT
$7.60¢3 800
1
#29
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
#30
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#31
90430-06166-00
GASKET
$4.11¢2 056
1
