SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

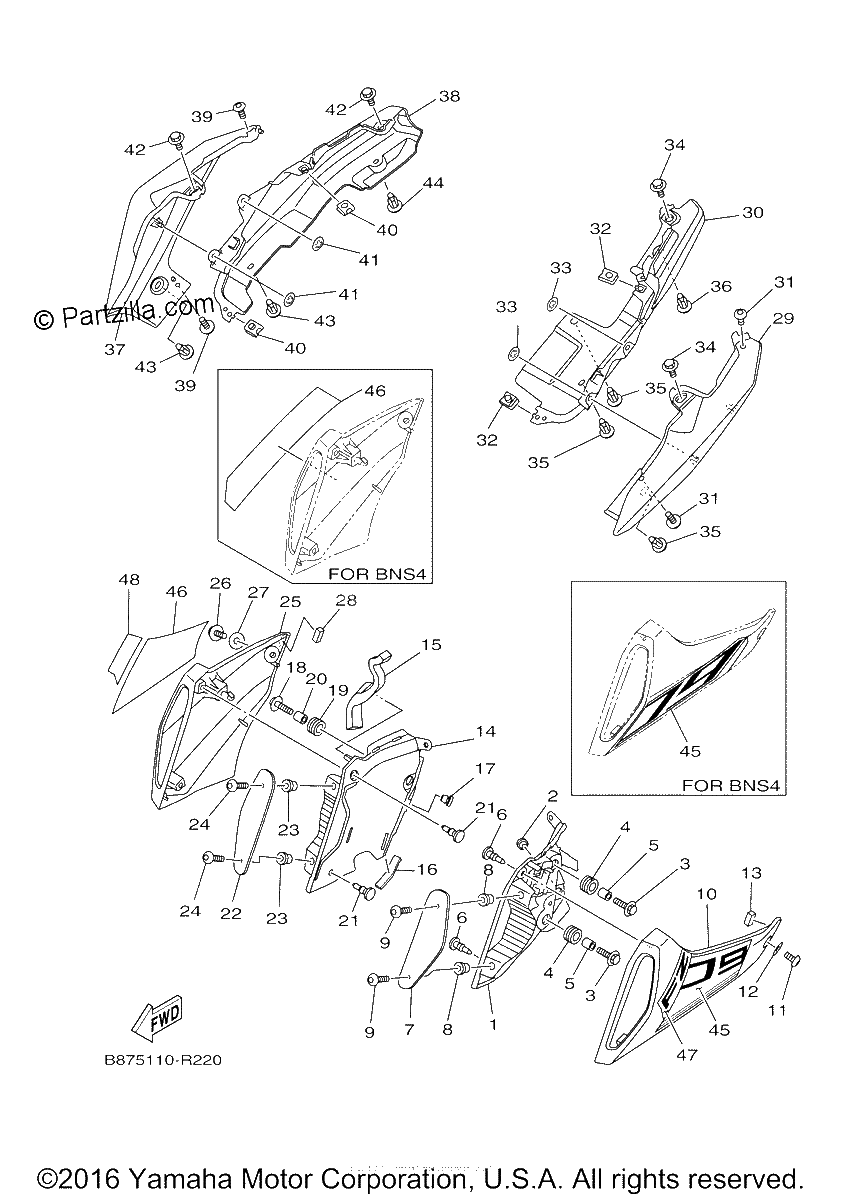

Diagrama de SIDE COVER

Repuestos

#0
1RC-21737-30-00
EMBLEM | UR FOR VPBC5
$10.65¢5 325
1
#0
1RC-2173F-40-00
GRAPHIC 2 | UR FOR VPBC5
$40.95¢20 476
1
#0
1RC-21711-00-P6
COVER, SIDE 1 | UR FOR VPBC5
$62.30¢31 148
1
#0
1RC-21721-00-P5
COVER, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$57.87¢28 934
1
#0
1RC-21737-20-00
EMBLEM | Use for Color Black Metallic X ( SMX / 0903 )
$10.65¢5 325
1
#0
1RC-2173E-30-00
GRAPHIC 1 | Use for Color Black Metallic X ( SMX / 0903 )
$44.00¢21 999
1
#1
1RC-2172E-00-00
STAY, SIDE COVER 1
$87.92¢43 959
1
#2
90338-07180-00
PLUG
$6.22¢3 111
1
#3
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#4
90480-14003-00
GROMMET
$6.83¢3 415
1
#5
90387-06057-00
COLLAR
$6.75¢3 375
1
#6
90269-06001-00
RIVET
$5.93¢2 967
1
#7
1RC-2837N-00-00
GRILL, AIR INTAKE 1
$25.46¢12 731
1
#8
90179-05523-00
NUT
$6.23¢3 117
1
#9
90111-05039-00
BOLT, HEX. SOCKET BUTTON
$4.70¢2 352
1
#10
1RC-2137W-00-P0
SCOOP, AIR 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$96.57¢48 283
1
#11
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#12
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#13
1RC-21747-00-00
DAMPER
$2.05¢1 023
1
#14
1RC-2174E-00-00
STAY, SIDE COVER 2
$88.38¢44 189
1
#15
90520-10022-00
DAMPER, PLATE
$1.13¢564
1
#16
90520-10003-00
DAMPER, PLATE
$1.02¢512
1
#17
90338-07180-00
PLUG
$6.22¢3 111
1
#18
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#19
90480-14003-00
GROMMET
$6.83¢3 415
1
#20
90387-06057-00
COLLAR
$6.75¢3 375
1
#21
90269-06001-00
RIVET
$5.93¢2 967
1
#22
1RC-2837N-00-00
GRILL, AIR INTAKE 1
$25.46¢12 731
1
#23
90179-05523-00
NUT
$6.23¢3 117
1
#24
90111-05039-00
BOLT, HEX. SOCKET BUTTON
$4.70¢2 352
1
#25
1RC-2137X-00-P0
SCOOP, AIR 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$92.22¢46 109
1
#26
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#27
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#28
1RC-21747-00-00
DAMPER
$2.05¢1 023
1
#29
1RC-21711-00-P5
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$57.87¢28 934
1
#30
1RC-21731-00-00
COVER, SIDE 3
$53.06¢26 531
1
#31
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#32
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#33
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#34
90109-06174-00
BOLT
$8.06¢4 031
1
#35
90269-07007-00
RIVET
$3.68¢1 840
1
#36
90269-07014-00
RIVET
$1.31¢655
1
#37
1RC-21721-00-P6
COVER, SIDE 2 | UR FOR VPBC5
$60.13¢30 067
1
#38
1RC-21741-00-00
COVER, SIDE 4
$53.06¢26 531
1
#39
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#40
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#41
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#42
90109-06174-00
BOLT
$8.06¢4 031
1
#43
90269-07007-00
RIVET
$3.68¢1 840
1
#44
90269-07014-00
RIVET
$1.31¢655
1
#45
1RC-2173E-40-00
GRAPHIC 1 | UR FOR VPBC5
$33.59¢16 796
1
#46
1RC-2173F-30-00
GRAPHIC 2 | Use for Color Black Metallic X ( SMX / 0903 )
$21.49¢10 747
1
#47
1RC-21737-20-00
EMBLEM | Use for Color Black Metallic X ( SMX / 0903 )
$10.65¢5 325
1
#48
1RC-21737-30-00
EMBLEM | UR FOR VPBC5
$10.65¢5 325
1
