FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

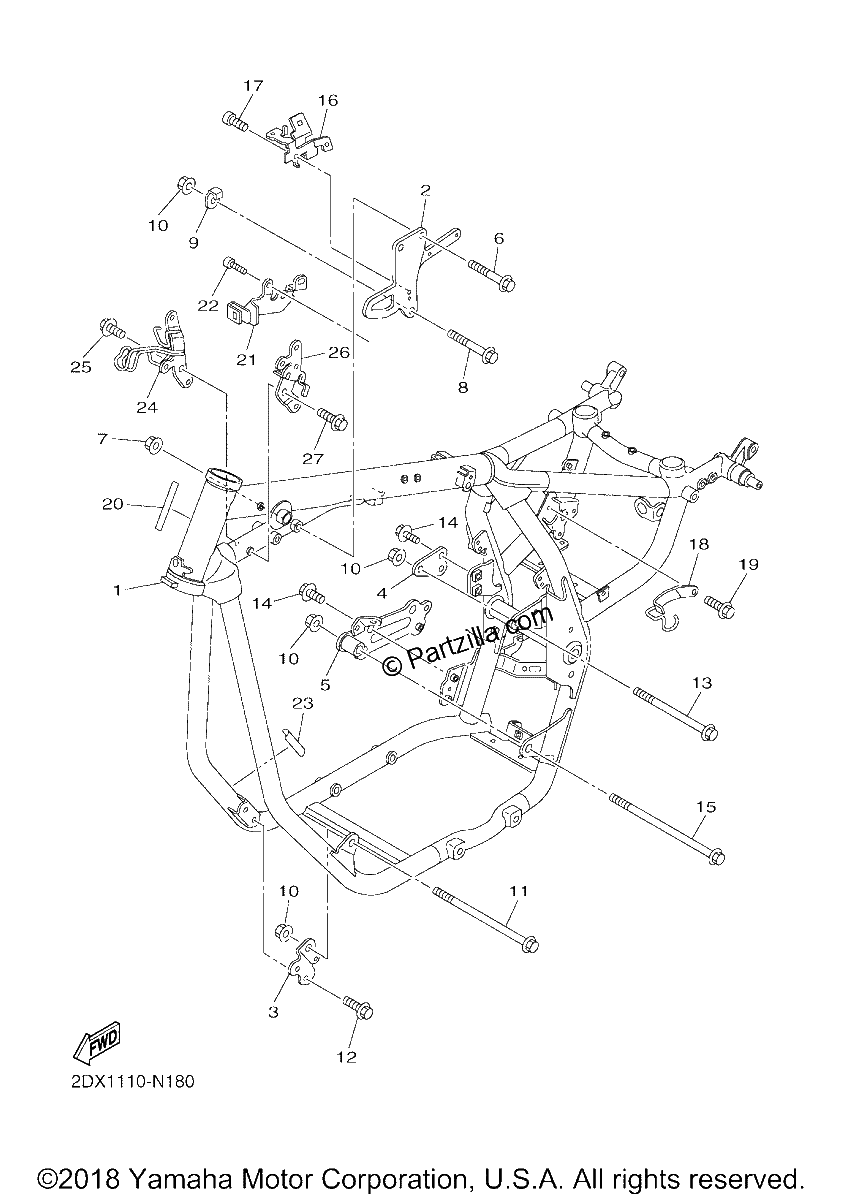

Diagrama de FRAME

Repuestos

#1
BP6-21110-00-00
FRAME COMP. (replaces 1TP-21110-00-00)
$1898.64¢949 319
1
#2
1TP-21317-00-00
STAY, ENGINE 3
$76.42¢38 209
1
#3
1TP-2122C-00-00
STAY 3
$11.71¢5 853
1
#4
1TP-21314-00-00
STAY, ENGINE 5
$10.58¢5 290
1
#5
1TP-2116F-00-00
STAY, REAR
$46.20¢23 098
1
#6
90105-10434-00
BOLT, FLANGE
$4.66¢2 329
1
#7
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#8
90105-12090-00
BOLT, FLANGE
$9.30¢4 652
1
#9
1TP-21183-00-00
PLATE
$7.77¢3 887
1
#10
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#11
90105-12088-00
BOLT, FLANGE
$28.66¢14 329
1
#12
90105-10415-00
BOLT, FLANGE
$9.22¢4 611
1
#13
90105-12091-00
BOLT, FLANGE
$26.79¢13 397
1
#14
90105-10428-00
BOLT, FLANGE
$4.57¢2 283
1
#15
90105-12086-00
BOLT, FLANGE
$35.39¢17 693
1
#16
1TP-2115C-00-00
BRACKET
$19.83¢9 913
1
#17
91317-06008-00
BOLT
$0.34¢173
1
#18
1TP-21288-00-00
GUIDE, CABLE
$18.20¢9 102
1
#19
95027-06010-00
BOLT,FLANGE(4MY)
$2.71¢1 357
1
#20
3D8-2117G-00-00
PROTECTOR
$6.12¢3 059
1
#21
1TP-21149-01-00
BRACKET, BATTERY BOX
$19.31¢9 654
1
#22
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#23
5PX-21268-00-00
SEAL
$7.06¢3 530
1
#24
1TP-26475-00-00
HOLDER
$38.39¢19 194
1
#25
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#26
1TP-26481-00-00
HOLDER, 2
$9.20¢4 600
1
#27
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
