CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

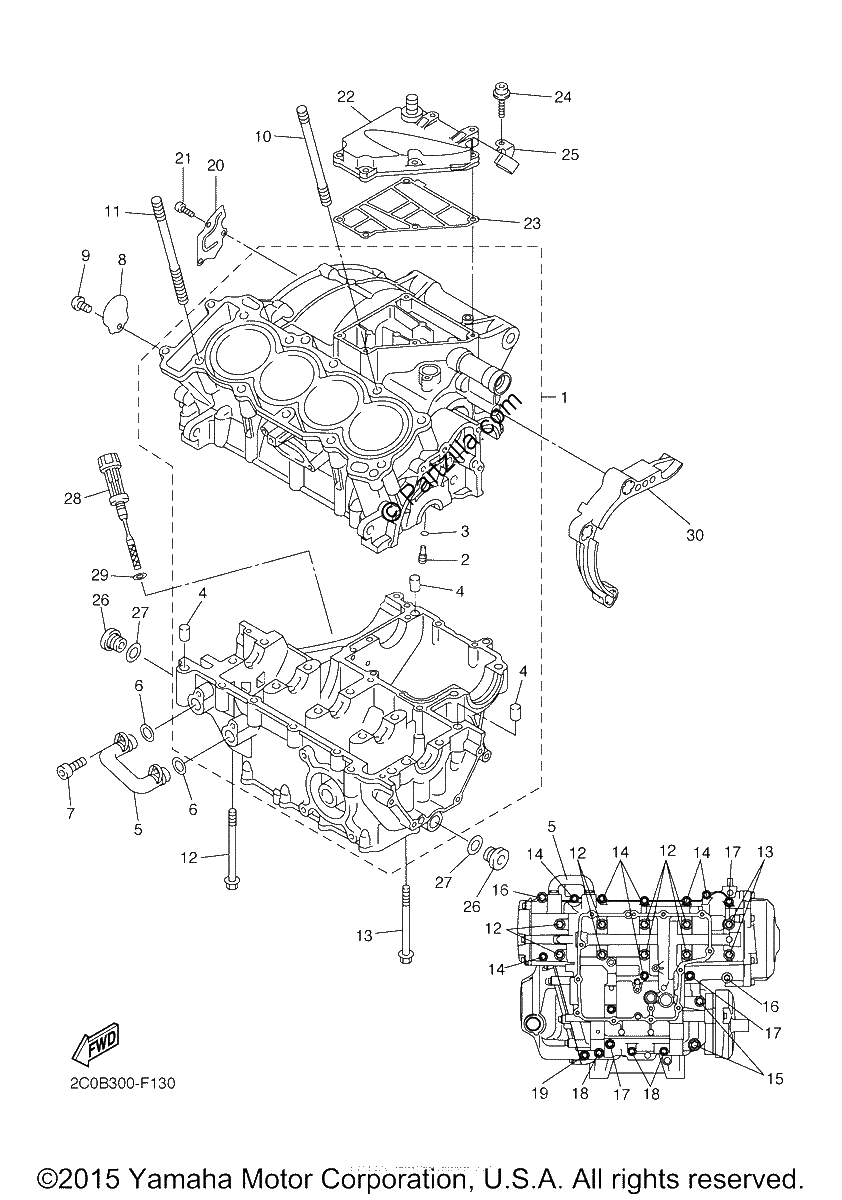

Diagrama de CRANKCASE

Repuestos

#0
2C0-24136-10-00
CLAMP 2 | FOR U49
$7.74¢3 870
1
#1
2C0-15100-09-00
CRANKCASE ASSY
$3120.94¢1 560 470
1
#2
5EB-15155-00-00
NOZZLE 3
$13.48¢6 739
1
#3
93210-04092-00
O-RING
$3.16¢1 581
1
#4
99510-10114-00
PIN, DOWEL
$2.50¢1 248
1
#5
13S-13418-00-00
PIPE, OIL 2
$49.31¢24 656
1
#6
93210-14579-00
O-RING
$5.45¢2 726
1
#7
91317-06016-00
BOLT
$1.35¢673
1
#8
13S-15189-00-00
PLUG
$7.23¢3 617
1
#9
90149-06081-00
SCREW
$6.75¢3 375
1
#10
90116-10025-00
BOLT, STUD
$11.73¢5 865
1
#11
90116-10026-00
BOLT, STUD
$13.88¢6 940
1
#12
90119-08083-00
BOLT, WITH WASHER
$7.38¢3 691
1
#13
90119-08084-00
BOLT, WITH WASHER
$13.43¢6 716
1
#14
95812-06055-00
BOLT, FLANGE
$1.61¢805
1
#15
95814-08065-00
BOLT,FLANGE (replaces 95812-08065-00)
$3.86¢1 932
1
#16
90109-06100-00
BOLT
$8.34¢4 169
1
#17
95812-06065-00
BOLT, FLANGE
$5.65¢2 823
1
#18
95817-06045-00
BOLT, FLANGE
$6.76¢3 381
1
#19
95812-06030-00
BOLT, FLANGE
$1.82¢909
1
#20
2C0-11165-00-00
PLATE, BREATHER
$6.51¢3 254
1
#21
90149-06081-00
SCREW
$6.75¢3 375
1
#22
2C0-15413-02-00
COVER
$192.68¢96 341
1
#23
2C0-15462-01-00
GASKET, CRANKCASE COVER 3
$9.91¢4 956
1
#24
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
1
#25
2C0-24136-00-00
CLAMP 2 | FOR CALIFORNIA
$6.57¢3 283
1
#26
36Y-15189-00-00
PLUG
$13.19¢6 595
1
#27
93210-16325-00
O-RING
$6.43¢3 214
1
#28
2C0-15362-00-00
PLUG, OIL LEVEL
$18.19¢9 096
1
#29
93210-09350-00
O-RING (replaces 93210-09165-00)
$6.36¢3 180
1
#30
2C0-15377-00-00
GUIDE, INLET
$56.91¢28 457
1
