FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

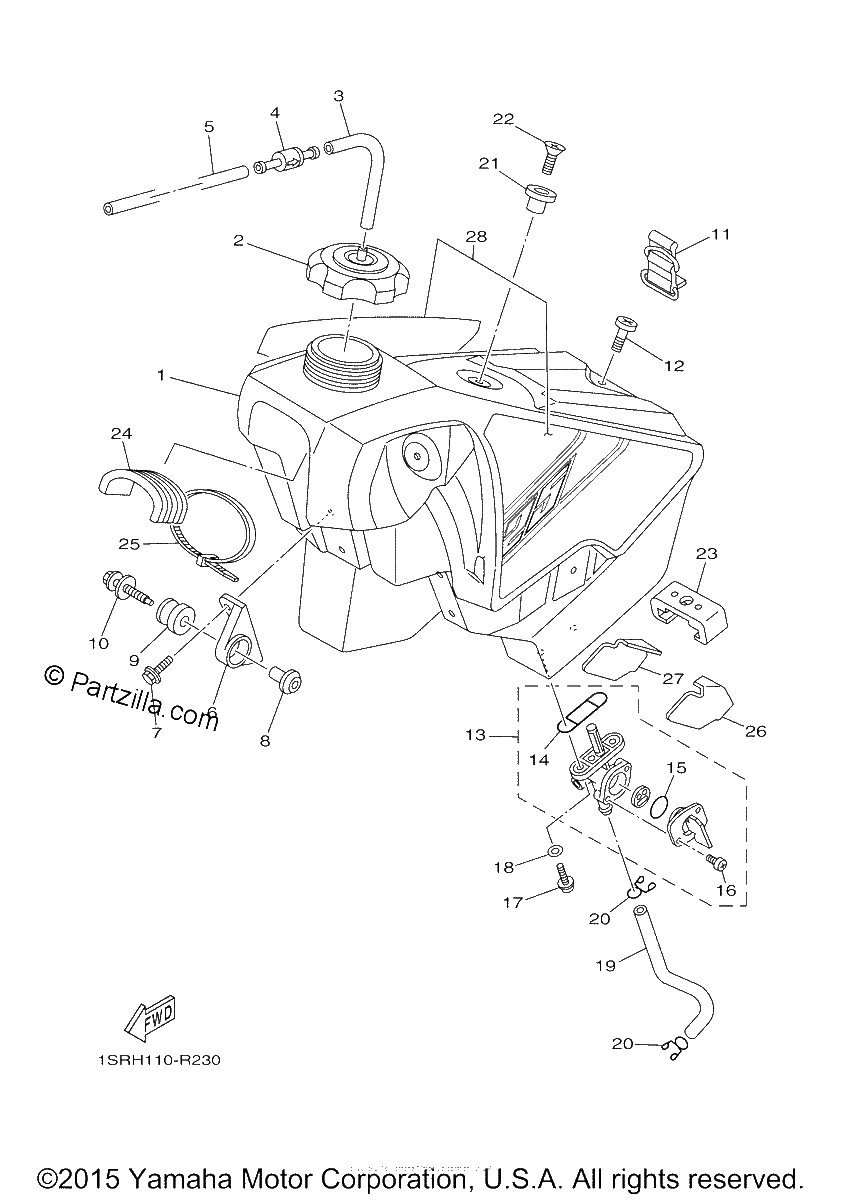

Diagrama de FUEL TANK

Repuestos

#1
1C3-24110-90-00
FUEL TANK COMP.
$866.95¢433 475
1
#2
5NY-24610-10-00
CAP ASSY
$65.79¢32 894
1
#3
5RB-24315-00-00
PIPE 5
$7.16¢3 581
1
#4
3XJ-24380-00-00
PIPE JOINT ASSY
$37.21¢18 606
1
#5
90445-092K1-00
HOSE (L420)
$13.09¢6 544
1
#6
5XE-24144-00-00
HOLDER, DAMPER
$23.73¢11 863
1
#7
90105-06107-00
BOLT, FLANGE
$7.34¢3 669
1
#8
5NY-24186-00-00
WASHER, SPECIAL
$21.26¢10 631
1
#9
90480-18549-00
Grommet
$10.50¢5 250
1
#10
5XE-24176-10-00
BOLT 1
$6.85¢3 425
1
#11
3SP-24173-00-00
BAND,TANK FITTING (replaces 1B2-F4173-00-00)
$22.03¢11 013
1
#12
98907-06025-00
SCREW,BIND
$7.35¢3 675
1
#13
3JD-24500-20-00
FUEL COCK ASSY 1
$59.38¢29 688
1
#14
4X8-24512-10-00
GASKET
$13.06¢6 531
1
#15
3AJ-24534-10-00
SEAL, COCK
$8.43¢4 213
1
#16
98580-03008-00
SCREW, PAN HEAD
$2.73¢1 363
1
#17
90149-06108-00
SCREW
$1.14¢569
1
#18
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#19
90445-110F5-00
HOSE (L210)
$16.77¢8 388
1
#20
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#21
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
1
#22
98702-06025-00
Screw, Flat Head
$7.34¢3 669
1
#23
1C3-24181-00-00
DAMPER, LOCATING 1
$8.01¢4 006
1
#24
1C3-24182-00-00
DAMPER, LOCATING 2
$11.47¢5 738
1
#25
90464-15152-00
CLAMP
$5.19¢2 594
1
#26
1C3-24183-00-00
DAMPER, LOCATING 3
$13.26¢6 631
1
#27
1C3-24184-00-00
DAMPER, LOCATING 4
$12.60¢6 300
1
#28
1SR-24240-40-00
GRAPHIC SET
$183.49¢91 744
1
