CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

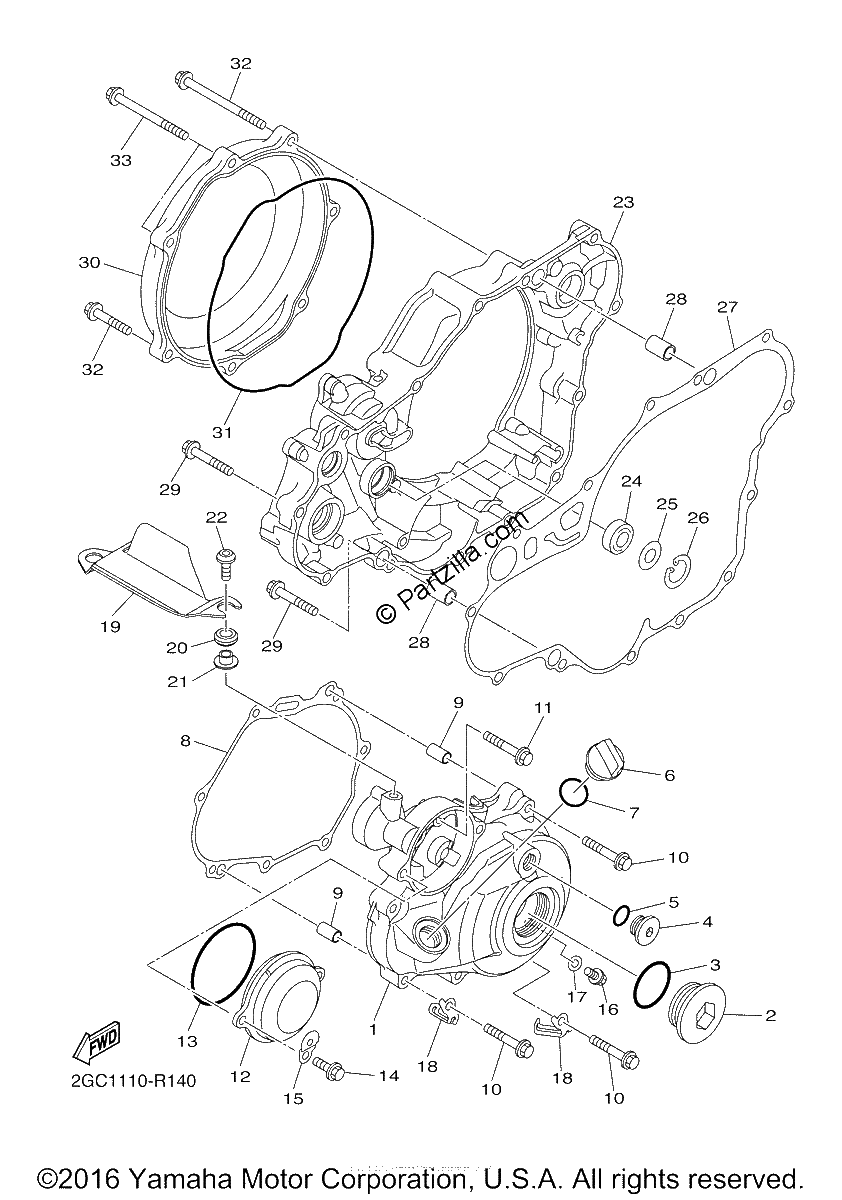

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2GC-15411-00-00
COVER, CRANKCASE 1
$144.23¢72 117
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$14.66¢7 331
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#5
93210-14369-00
O-Ring
$6.36¢3 180
1
#6
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#7
93210-19123-00
O-Ring
$7.58¢3 789
1
#8
1SL-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN BOTTOM END GASKET KIT
$12.22¢6 112
1
#9
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#10
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#11
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#12
5TJ-1549B-30-00
COVER ASSY 2
$93.41¢46 707
1
#13
93210-58346-00
O-RING
$9.91¢4 956
1
#14
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#15
2GC-15199-00-00
BRACKET
$4.77¢2 386
1
#16
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#17
90430-06014-00
GASKET
$7.59¢3 795
1
#18
90465-08062-00
CLAMP
$4.05¢2 024
1
#19
2GC-15436-00-00
COVER, STARTING MOTOR
$6.64¢3 318
1
#20
90480-12581-00
GROMMET
$5.09¢2 547
1
#21
90387-06142-00
COLLAR
$4.22¢2 110
1
#22
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
1
#23
1SL-15431-00-00
COVER, CRANKCASE 3
$234.57¢117 283
1
#24
93101-14164-00
OIL SEAL
$10.63¢5 313
1
#25
90201-15701-00
WASHER, PLATE (T=1.0)
$6.75¢3 375
1
#26
99009-22500-00
CIRCLIP
$6.76¢3 381
1
#27
1SL-15462-00-00
GASKET, CRANKCASE COVER 3 | INCL. IN BOTTOM END GASKET KIT
$30.02¢15 008
1
#28
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#29
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#30
33D-15415-10-00
COVER, 1
$330.76¢165 382
1
#31
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$27.01¢13 507
1
#32
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#33
95022-06070-00
BOLT, FLANGE
$2.21¢1 104
1
