AIR INDUCTION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

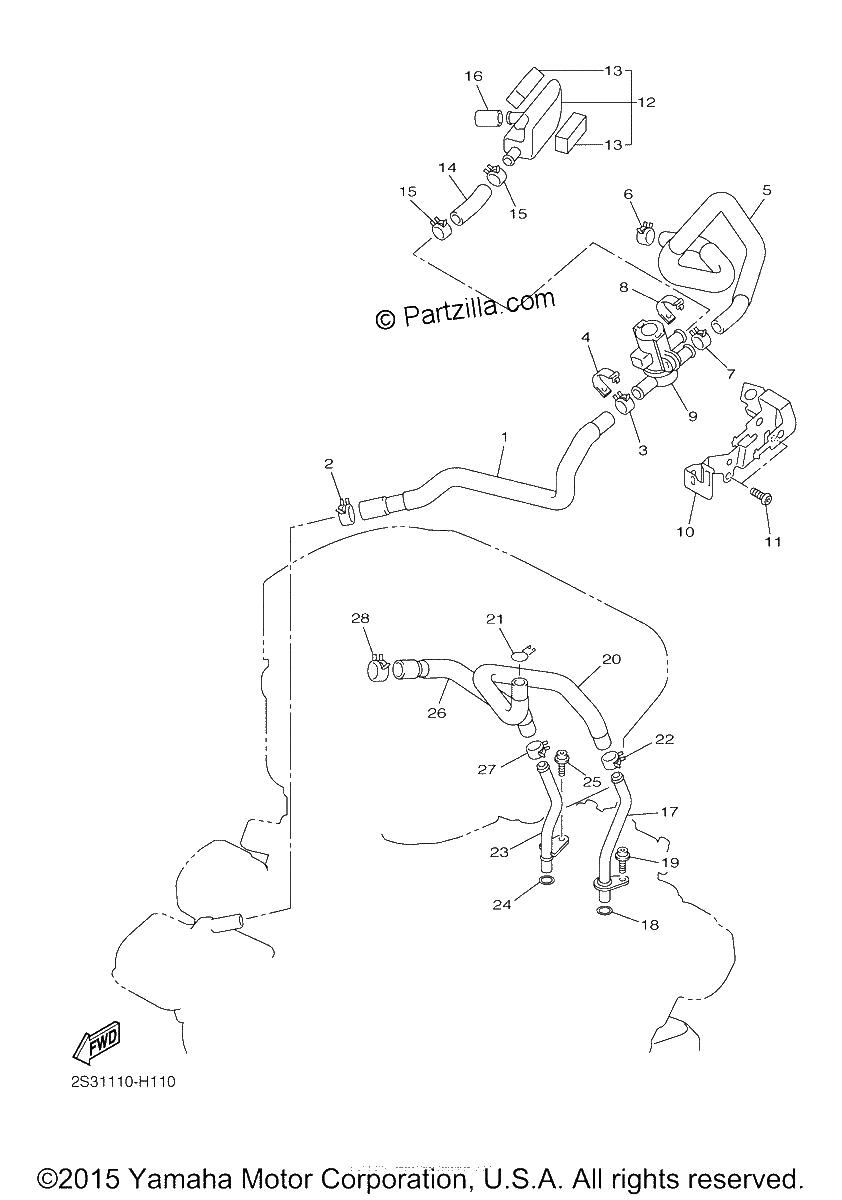

Diagrama de AIR INDUCTION SYSTEM

Repuestos

#1
2S3-14881-00-00
HOSE, BEND 1
$62.09¢31 044
1
#2
90467-19051-00
CLIP
$3.50¢1 750
1
#3
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#4
5JW-14723-00-00
COVER 1
$19.38¢9 688
1
#5
2S3-14882-00-00
HOSE, BEND 2
$82.65¢41 325
1
#6
90467-19051-00
CLIP
$3.50¢1 750
1
#7
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#8
5JW-14723-00-00
COVER 1
$19.38¢9 688
1
#9
2S3-14840-00-00
AIR CUT VALVE ASSY
$218.38¢109 188
1
#10
2S3-14834-00-00
STAY
$51.22¢25 612
1
#11
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#12
2S3-13581-00-00
CHAMBER, AIR
$36.06¢18 031
1
#13
2S3-14425-00-00
DAMPER 1
$1.23¢613
1
#14
90445-18009-00
HOSE
$3.83¢1 913
1
#15
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#16
90445-18010-00
HOSE
$2.86¢1 431
1
#17
2S3-11116-00-00
JOINT, BREATHER
$49.97¢24 987
1
#18
93210-12790-00
O-RING
$6.85¢3 425
1
#19
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#20
2S3-11166-00-00
PIPE, BREATHER 1
$65.04¢32 519
1
#21
90467-180A1-00
CLIP
$7.60¢3 800
1
#22
90467-16009-00
CLIP
$6.46¢3 231
1
#23
2S3-1111J-00-00
PIPE 1
$50.70¢25 350
1
#24
93210-14579-00
O-RING
$5.93¢2 963
1
#25
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#26
2S3-1116J-00-00
PIPE 6
$39.30¢19 650
1
#27
90467-21068-00
CLIP
$7.31¢3 656
1
#28
90467-23067-00
CLIP
$4.72¢2 363
1
