ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

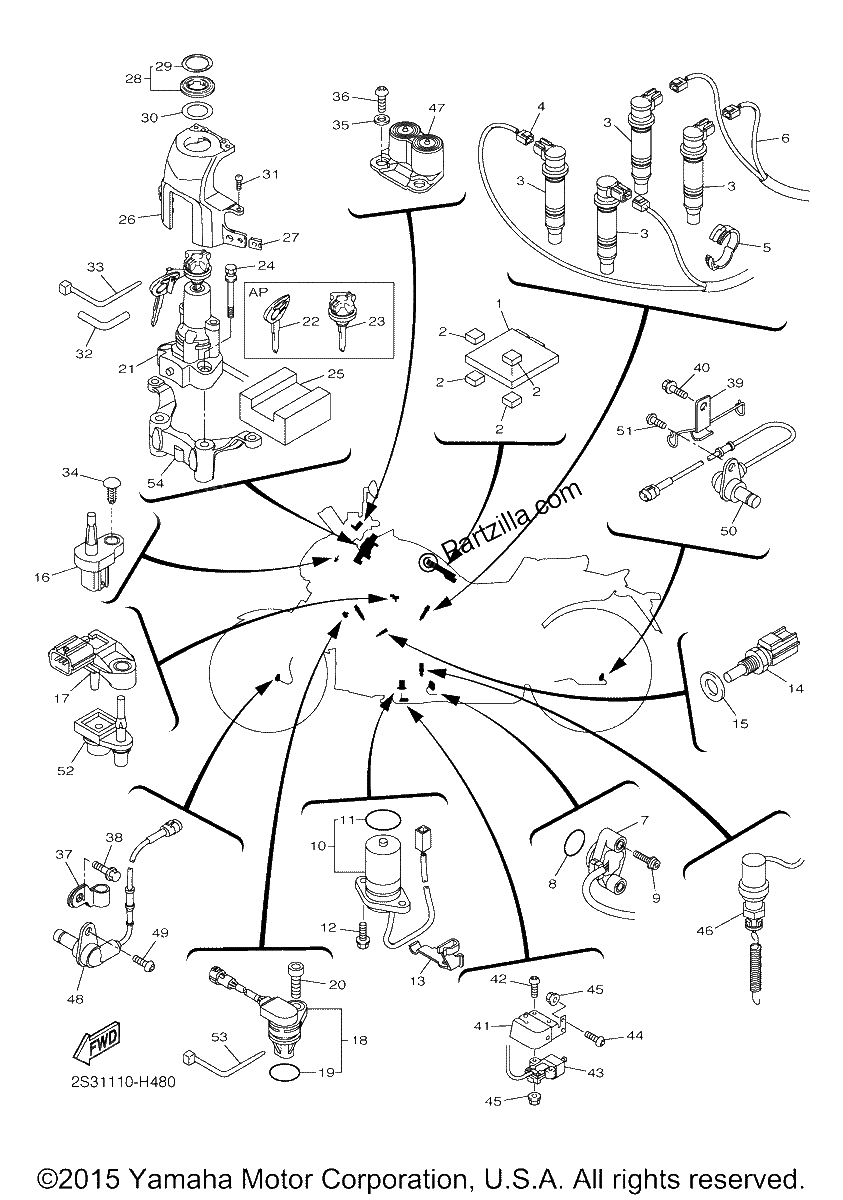

Diagrama de ELECTRICAL 1

Repuestos

#1
2S3-8591A-A0-00
ENGINE CONTROL UNIT
$1722.69¢861 344
1
#2
2RH-21747-00-00
Damper
$2.64¢1 322
1
#3
5VY-82310-00-00
IGNITION COIL ASSY
$164.44¢82 219
1
#4
2S3-82509-10-00
WIRE, SUB LEAD
$51.00¢25 501
1
#5
90464-25005-00
Clamp
$2.78¢1 392
1
#6
2S3-82509-20-00
WIRE, SUB LEAD
$55.51¢27 755
1
#7
2S3-82540-00-00
NEUTRAL SWITCH ASSY
$100.05¢50 025
1
#8
93210-21001-00
O-RING
$5.23¢2 616
1
#9
90110-05054-00
BOLT, HEXAGON SOCKET (replaces 90110-05053-00)
No Disponible
1
#10
2S3-85720-00-00
Oil Level Gauge Assy
$89.57¢44 787
1
#11
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#12
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#13
2S3-85724-00-00
Clamp
$16.97¢8 487
1
#14
8CC-85790-01-00
THERMOSENSOR ASSY
$97.93¢48 967
1
#15
90201-12172-00
WASHER,PLATE
$3.16¢1 581
1
#16
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#17
1WS-82380-00-00
Sensor, Pressure
$187.39¢93 696
1
#18
2S3-85896-01-00
Sensor, Cam Position
$97.58¢48 789
1
#19
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#20
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#21
2S3-82501-00-00
MAIN SWITCH STEERING
$399.33¢199 663
1
#22
5PX-82511-09-00
BLANK KEY
$76.16¢38 082
1
#23
2S3-82511-09-00
KEY, MAIN SWITCH
$85.00¢42 498
1
#24
90109-08212-00
BOLT (replaces 90109-08207-00)
$12.89¢6 446
1
#25
2S3-28372-00-00
DAMPER This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#26
2S3-2117A-00-00
STAY
$108.15¢54 073
1
#27
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#28
2S3-82552-00-00
CAP, SWITCH
$83.82¢41 912
1
#29
2S3-8257H-00-00
PLATE, MARK
$20.37¢10 183
1
#30
5GJ-28307-00-00
SEAL
$1.91¢954
1
#31
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#32
90445-07176-00
HOSE (L200) | FOR CAL
$7.72¢3 858
1
#33
1UA-82591-00-00
BAND
$4.52¢2 260
1
#34
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#35
90201-067F9-00
WASHER,PLATE
$3.15¢1 576
1
#36
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#37
2S3-84387-00-00
HOLDER
$12.11¢6 055
1
#38
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#39
2S3-8431U-00-00
HOLDER
$23.55¢11 776
1
#40
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#41
2S3-27876-00-00
BRKT.,SWITCH
$41.38¢20 688
1
#42
92014-05025-00
BOLT, BUTTON HEAD
$7.70¢3 852
1
#43
2S3-82566-00-00
SWITCH, SIDE STAND
$137.70¢68 851
1
#44
92014-05020-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#45
95604-05200-00
NUT, U FLANGE
$1.89¢943
1
#46
2S3-82530-01-00
STOP SWITCH ASSY (replaces 2S3-82530-00-00)
$44.22¢22 109
1
#47
2S3-8358J-01-00
SWITCH, METER CONTRO
$171.44¢85 721
1
#48
2S3-85970-00-00
WHEEL SENSOR ASSY, F
$158.83¢79 413
1
#49
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#50
2S3-85980-00-00
WHEEL SENSOR ASSY, R
$169.40¢84 698
1
#51
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#52
2S3-14435-00-00
Grommet
$19.64¢9 821
1
#53
1UA-82591-00-00
BAND
$4.52¢2 260
1
#54
2S3-82514-00-00
STAY, MAIN SWITCH
$122.84¢61 421
1
