FRONT FORK

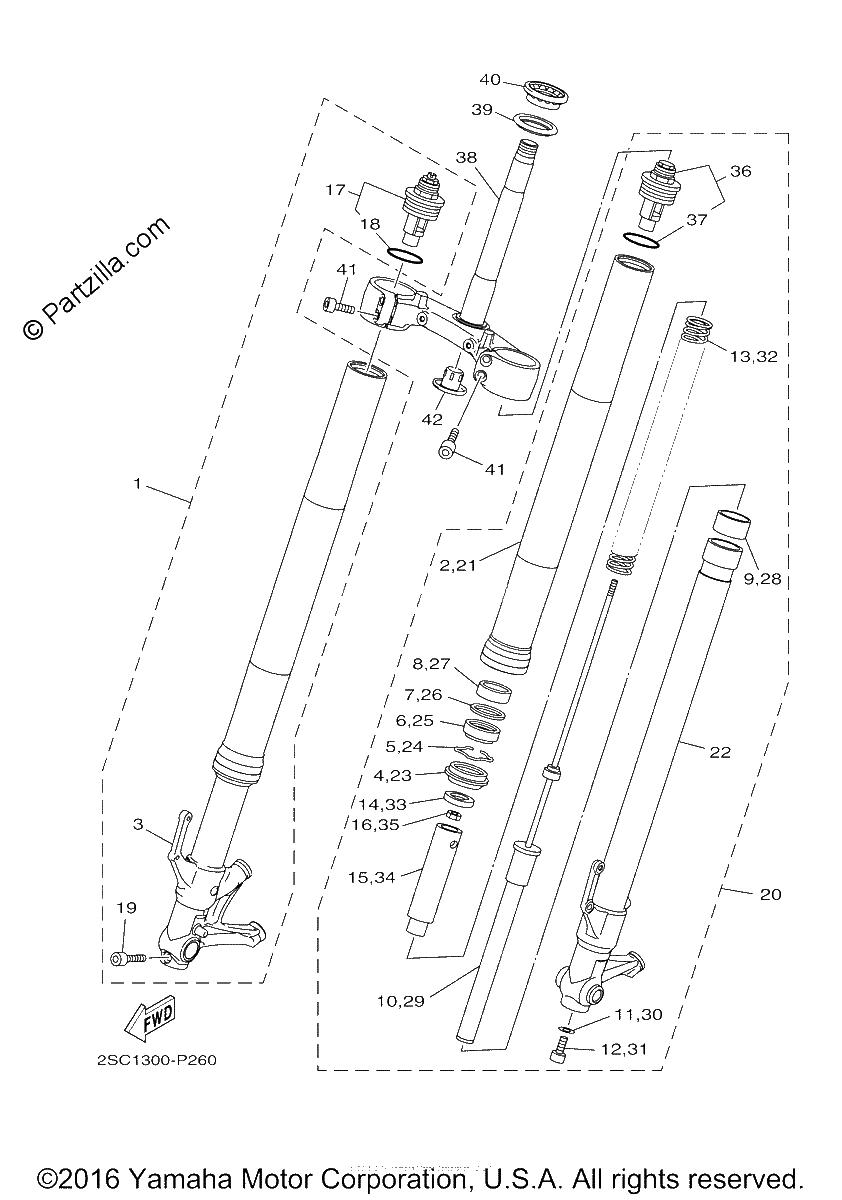

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$1011.99¢505 994
#2
TUBE, OUTER (L.H)
$446.00¢223 002
#3
INNER TUBE COMP. 2
$354.98¢177 491
#4
SEAL, DUST
$21.36¢10 678
#5
RING, SNAP
$7.24¢3 622
#6
OIL SEAL
$26.59¢13 294
#7
WASHER, OIL SEAL
$24.18¢12 092
#8
METAL, SLIDE 1
$13.57¢6 785
#9
METAL, SLIDE
$22.33¢11 167
#10
CYLINDER COMP., FRONT FORK
$290.44¢145 222
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$75.45¢37 726
#14
WASHER
$11.73¢5 865
#15
SPACER
$15.04¢7 521
#16
NUT
$7.28¢3 640
#17
BOLT, CAP
$265.91¢132 957
#18
O-RING
$7.38¢3 691
#19
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#20
FRONT FORK ASSY (L.H)
$899.29¢449 644
#21
TUBE, OUTER (L.H)
$446.00¢223 002
#22
INNER TUBE COMP. 1
$348.05¢174 024
#23
SEAL, DUST
$21.36¢10 678
#24
RING, SNAP
$7.24¢3 622
#25
OIL SEAL
$26.59¢13 294
#26
WASHER, OIL SEAL
$24.18¢12 092
#27
METAL, SLIDE 1
$13.57¢6 785
#28
METAL, SLIDE
$22.33¢11 167
#29
CYLINDER COMP., FRONT FORK
$290.44¢145 222
#30
GASKET | (KYB)
$15.72¢7 860
#31
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#32
SPRING, FRONT FORK
$75.45¢37 726
#33
WASHER
$11.73¢5 865
#34
SPACER
$15.04¢7 521
#35
NUT
$7.28¢3 640
#36
BOLT, CAP
$265.91¢132 957
#37
O-RING
$7.38¢3 691
#38
UNDER BRACKET COMP.
$478.50¢239 252
#39
SEAL, STEERING
$23.48¢11 742
#40
BEARING
$60.89¢30 446
#41
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#42
COVER, UNDER 1
$13.48¢6 739
