STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

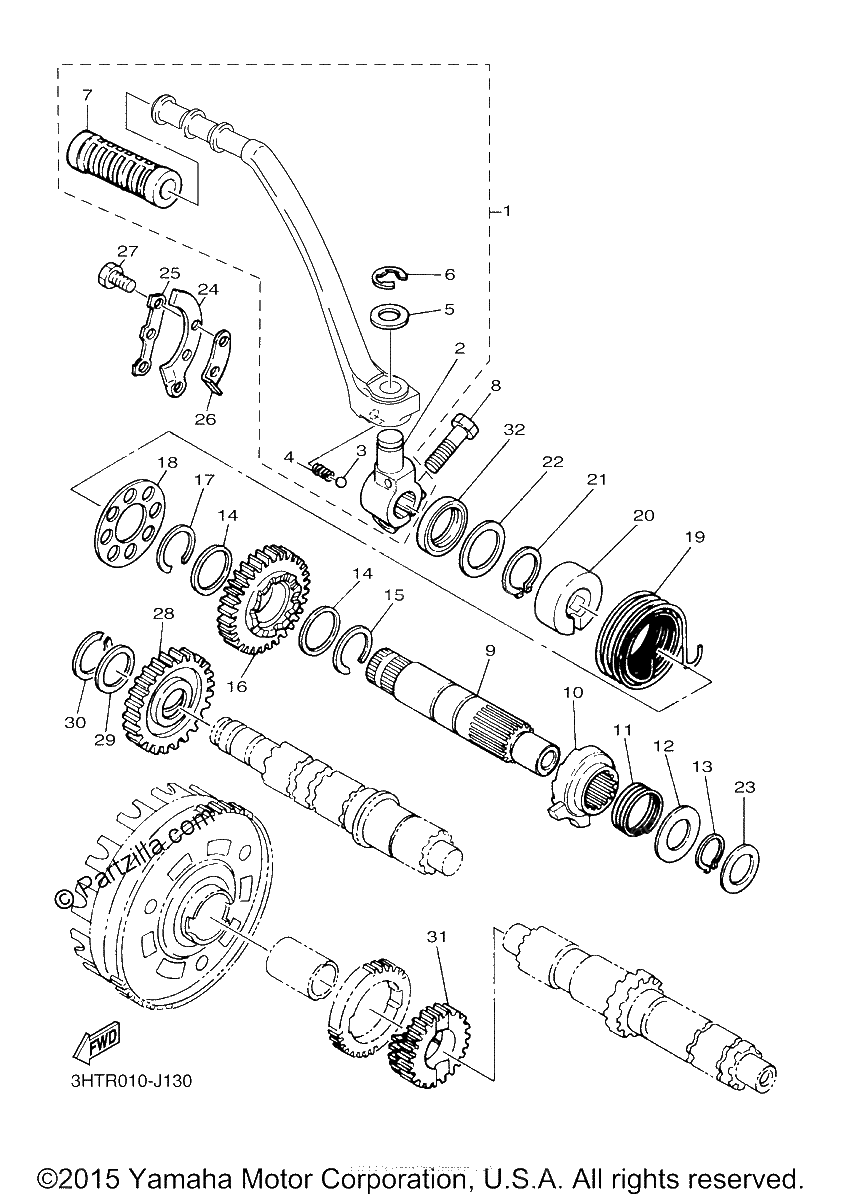

Diagrama de STARTER

Repuestos

#1
3HT-15610-R0-00
KICK CRANK ASSY
$158.19¢79 094
1
#2
583-15621-00-00
BOSS, KICK CRANK
$102.94¢51 469
1
#3
93507-32031-00
BALL
$4.65¢2 325
1
#4
90501-12081-00
SPRING, COMPRESSION
$7.34¢3 669
1
#5
90201-15234-00
WASHER, PLATE
$8.09¢4 044
1
#6
99001-10600-00
99006-10600-00 This item has been discontinued and may not be available. Contact us for more information.
$8.24¢4 119
1
#7
1T1-15618-00-00
COVER, KICK LEVER
$7.08¢3 538
1
#8
97024-08030-00
BOLT
$1.84¢919
1
#9
583-15661-00-00
AXLE, KICK
$73.83¢36 913
1
#10
583-15671-00-00
WHEEL, RATCHET
$86.54¢43 269
1
#11
90501-23143-00
SPRING, COMPRESSION
$11.21¢5 606
1
#12
363-15676-00-00
COVER, SPRING
$6.55¢3 275
1
#13
99009-19400-00
CIRCLIP
$7.34¢3 669
1
#14
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#15
93440-25020-00
CIRCLIP
$9.22¢4 613
1
#16
583-15641-00-00
GEAR, KICK (29T)
$67.13¢33 563
1
#17
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#18
583-15676-00-00
COVER, SPRING
No Disponible
1
#19
90508-32280-00
SPRING, TORSION
$7.40¢3 700
1
#20
90560-25154-00
SPACER
No Disponible
1
#21
99009-25400-00
CIRCLIP
$7.94¢3 969
1
#22
90201-256K6-00
WASHER, PLATE (0.9T)
$4.16¢2 081
1
#23
90201-20278-00
WASHER, PLATE
$10.67¢5 337
1
#24
583-15674-00-00
GUIDE, RATCHET WHEEL
$23.64¢11 819
1
#25
363-15686-00-00
WASHER, LOCK
$8.03¢4 013
1
#26
434-15668-00-00
STOPPER
$8.03¢4 013
1
#27
97095-06016-00
BOLT
$2.26¢1 131
1
#28
583-15651-00-00
GEAR, SPROCKET IDLE (27T)
$97.25¢48 625
1
#29
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#30
99009-17400-00
Circlip
$4.65¢2 325
1
#31
3HT-15631-00-00
GEAR, KICK PINION (19T)
$62.90¢31 450
1
#32
93102-25064-00
OIL SEAL
$13.27¢6 637
1
