SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

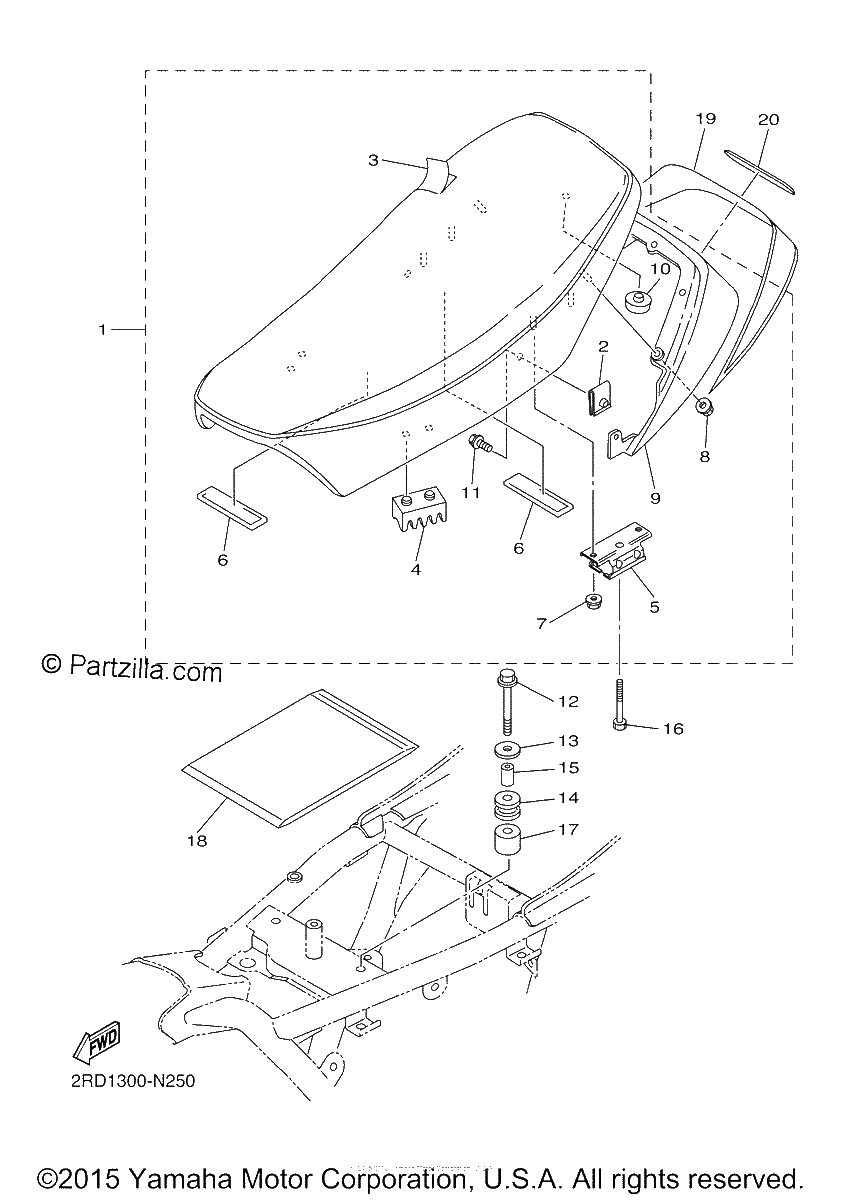

Diagrama de SEAT

Repuestos

#1
3HT-24730-50-33
DOUBLE SEAT ASSY | Use for Color YAMAHA BLACK ( YB / 0033 )
No Disponible
1
#2
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#3
3HT-24731-50-00
COVER, SEAT
$78.64¢39 318
1
#4
2J2-24723-00-00
DAMPER, SEAT
$21.72¢10 862
1
#5
2J2-24724-01-00
DAMPER, SEAT
$62.74¢31 372
1
#6
4KG-2814E-10-00
HOOK
$4.32¢2 162
1
#7
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#8
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#9
2J2-24756-00-33
COVER, TAIL | Use for Color YAMAHA BLACK ( YB / 0033 )
$79.12¢39 560
1
#10
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#11
90119-05015-00
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
1
#12
95812-06055-00
BOLT, FLANGE
$1.61¢805
1
#13
90201-06074-00
WASHER,PLATE
$6.88¢3 439
1
#14
2J2-24737-00-00
DAMPER, SEAT
$6.06¢3 030
1
#15
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#16
90101-08439-00
BOLT
$7.30¢3 651
1
#17
3HT-24725-00-00
SPACER 1
$13.20¢6 601
1
#18
4KG-28186-00-00
POUCH
$18.26¢9 131
1
#19
2RD-24757-00-00
GRAPHIC, TAIL COVER
$25.37¢12 684
1
#20
3LS-21781-00-00
EMBLEM 1
$40.32¢20 160
1
