REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

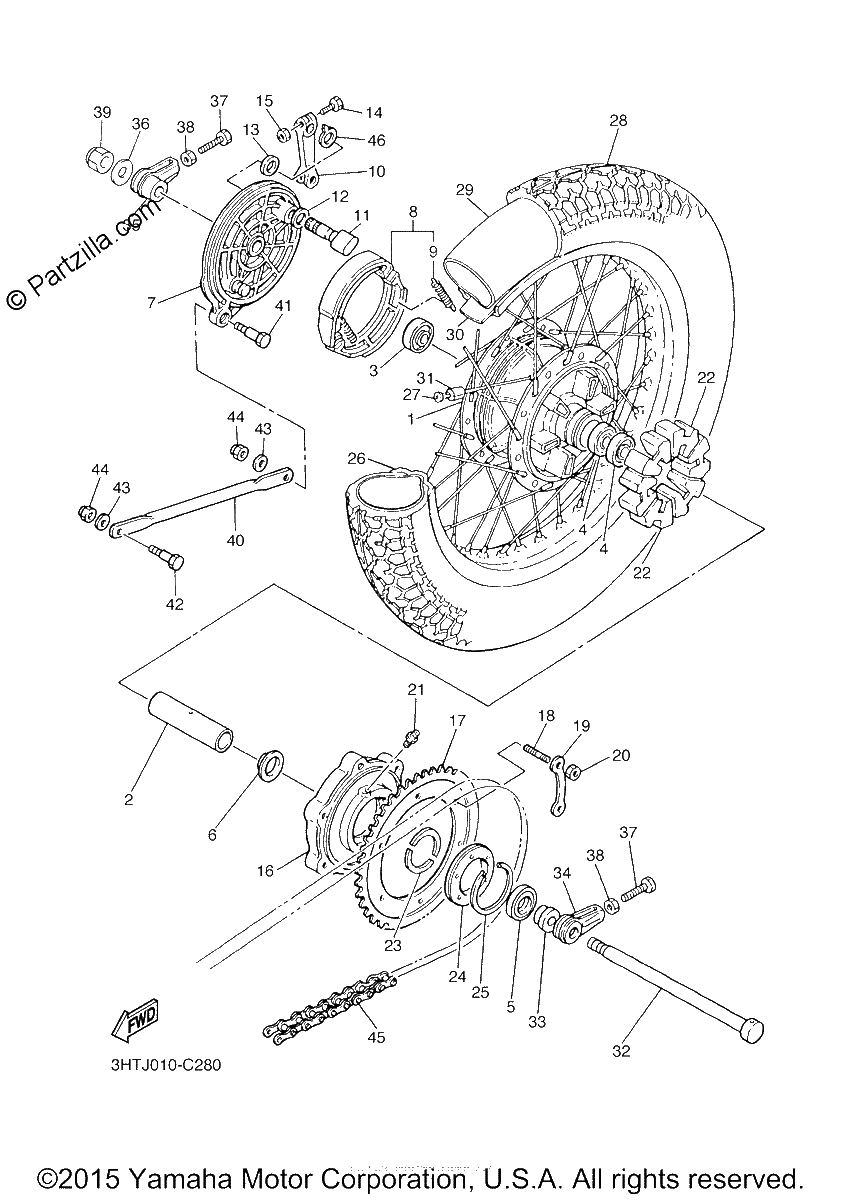

Diagrama de REAR WHEEL

Repuestos

#1
1E6-25311-00-38
HUB, REAR | CLP
$246.44¢123 223
1
#2
90560-17311-00
SPACER
$35.07¢17 537
1
#3
93306-20348-00
BEARING
$37.97¢18 987
1
#4
93306-20348-00
BEARING
$37.97¢18 987
1
#5
93102-25061-00
OIL SEAL
$12.06¢6 032
1
#6
146-25315-00-00
FLANGE,SPACER (replaces 152-25115-00-00)
$6.99¢3 496
1
#7
1E6-25321-12-38
PLATE, BRAKE SHOE | CLP
$132.49¢66 246
1
#8
3GW-W253A-00-00
BRAKE SHOE KIT
$98.15¢49 076
1
#9
90507-20002-00
SPRING, TENSION
$8.85¢4 427
1
#10
2J4-25355-00-00
LEVER, CAMSHAFT
$34.30¢17 152
1
#11
4L0-25351-00-00
CAMSHAFT
$27.30¢13 650
1
#12
148-25353-00-00
SHIM, CAMSHAFT
$7.01¢3 507
1
#13
148-25359-00-00
SEAL, CAMSHAFT
$4.52¢2 260
1
#14
90101-06278-00
BOLT
$2.05¢1 023
1
#15
95317-06600-00
NUT
$2.96¢1 478
1
#16
1E6-25366-00-35
CLUTCH, HUB | SL
$98.08¢49 042
1
#17
3HT-25456-20-00
SPROCKET, DRIVEN (56T)
$54.83¢27 416
1
#18
90116-08218-00
BOLT, STUD
$6.58¢3 289
1
#19
2XJ-25412-00-00
WASHER
$4.42¢2 208
1
#20
90170-08193-00
NUT
$3.20¢1 598
1
#21
93700-06M03-00
NIPPLE, GREASE
$8.69¢4 347
1
#22
2J2-25364-00-00
DAMPER
$16.51¢8 257
1
#23
1E6-25318-00-00
STOPPER, HUB
$6.42¢3 209
1
#24
1E6-25319-01-00
SEAL, HUB DUST
$26.24¢13 122
1
#25
93450-78080-00
CIRCLIP
$13.10¢6 549
1
#26
94421-18401-00
RIM (2.15-18)
$342.10¢171 051
1
#27
48U-25304-10-00
SPOKE SET, REAR
$106.72¢53 360
1
#28
94111-18020-00
TIRE (110/90-18M/C 61S BT45R) | BRIDGESTONE
$299.67¢149 834
1
#29
94211-18003-00
TUBE (110/90-18 MC) | BRIDGESTONE
$46.94¢23 472
1
#30
94340-18086-00
BAND, RIM (2.50-18) | BRIDGESTONE
$17.54¢8 769
1
#31
3HT-25398-00-00
BALANCER,WHEEL
$7.56¢3 778
1
#32
150-25381-02-00
AXLE, WHEEL
$32.97¢16 485
1
#33
90387-17530-00
COLLAR
$11.13¢5 566
1
#34
48U-25388-00-00
PULLER, CHAIN 1
$23.48¢11 742
1
#35
48U-25389-01-00
PULLER, CHAIN 2
$27.29¢13 645
1
#36
90201-164H4-00
WASHER,PLATE
$8.79¢4 393
1
#37
90101-08060-00
BOLT
$5.39¢2 697
1
#38
95380-08700-00
NUT
$3.58¢1 788
1
#39
95604-16100-00
NUT, U
$6.87¢3 433
1
#40
3H0-25371-00-00
BAR, TENSION
$28.84¢14 421
1
#41
90109-085G1-00
BOLT
$9.12¢4 560
1
#42
90109-08003-00
BOLT
$5.92¢2 961
1
#43
92903-08200-00
WASHER, PLAIN
$0.33¢167
1
#44
95617-08100-00
NUT, U
$7.44¢3 720
1
#45
94582-34130-00
CHAIN (D.I.D 428HV2-130LE)
$244.57¢122 285
1
#46
4H7-2533A-02-00
PLATE, INDICATOR
$9.34¢4 669
1
