REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

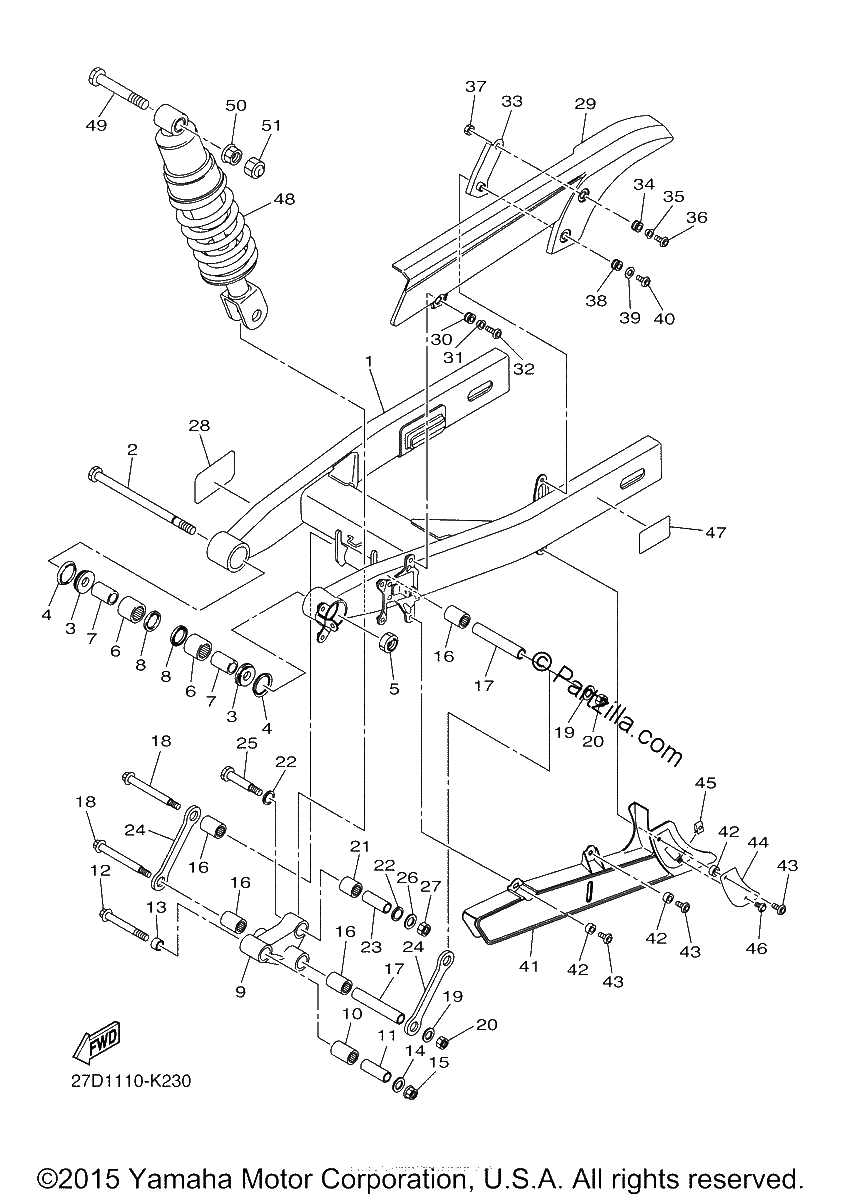

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
27D-22110-00-00
REAR ARM COMP.
$998.19¢499 094
1
#2
27D-22141-00-00
SHAFT, PIVOT
$42.11¢21 056
1
#3
90387-16030-00
COLLAR
$16.19¢8 096
1
#4
93108-44001-00
OIL SEAL
$6.53¢3 266
1
#5
90185-16002-00
NUT, SELF-LOCKING
$16.56¢8 280
1
#6
93317-52897-00
BEARING
$54.19¢27 094
1
#7
90387-16029-00
COLLAR
$20.35¢10 177
1
#8
93109-28001-00
OIL SEAL
$6.57¢3 283
1
#9
3D8-2217A-00-00
ARM, RELAY
$130.42¢65 211
1
#10
93317-42060-00
BEARING
$44.37¢22 184
1
#11
90387-100T8-00
COLLAR
$21.87¢10 936
1
#12
90105-10233-00
BOLT, FLANGE
$7.07¢3 536
1
#13
90387-10049-00
COLLAR
$19.42¢9 712
1
#14
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#15
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#16
93317-41761-00
BEARING
$40.15¢20 073
1
#17
90387-126T1-00
COLLAR
$22.60¢11 299
1
#18
90101-12027-00
BOLT
$10.43¢5 215
1
#19
90201-12045-00
WASHER, PLATE
$5.65¢2 823
1
#20
95612-12100-00
NUT, U
$4.48¢2 242
1
#21
93317-31771-00
BEARING
$34.84¢17 423
1
#22
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#23
90387-127W0-00
COLLAR
$12.21¢6 106
1
#24
3D8-2217M-00-00
ARM 1
$20.90¢10 448
1
#25
90109-10024-00
BOLT
$7.53¢3 766
1
#26
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#27
95617-10100-00
NUT, U
$6.76¢3 381
1
#28
5PX-21652-00-00
PROTECTOR
$8.45¢4 226
1
#29
5S7-22311-00-00
CASE, CHAIN
$42.01¢21 005
1
#30
90480-13004-00
GROMMET
$6.36¢3 180
1
#31
90387-06171-00
COLLAR
$6.87¢3 433
1
#32
90149-06302-00
SCREW
$4.70¢2 352
1
#33
3D8-2213J-00-00
STAY, CHAIN CASE
$16.27¢8 136
1
#34
90480-13004-00
GROMMET
$6.36¢3 180
1
#35
90387-06171-00
COLLAR
$6.87¢3 433
1
#36
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#37
95380-06600-00
NUT, HEXAGON
$4.65¢2 323
1
#38
90480-13004-00
GROMMET
$6.36¢3 180
1
#39
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#40
90149-06302-00
SCREW
$4.70¢2 352
1
#41
3D8-22312-00-00
CASE, CHAIN 2
$50.02¢25 013
1
#42
90387-06106-00
COLLAR
$5.93¢2 967
1
#43
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#44
5S7-22341-00-00
PLATE, GUIDE 1
$13.02¢6 509
1
#45
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#46
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#47
27D-21668-00-00
LABEL, TIRE
$2.16¢1 081
1
#48
27D-22210-00-00
SHOCK ABSORBER ASSY, REAR
No Disponible
1
#49
90109-10028-00
BOLT
$4.80¢2 398
1
#50
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#51
5YU-2143A-00-00
CAP
$5.11¢2 553
1
