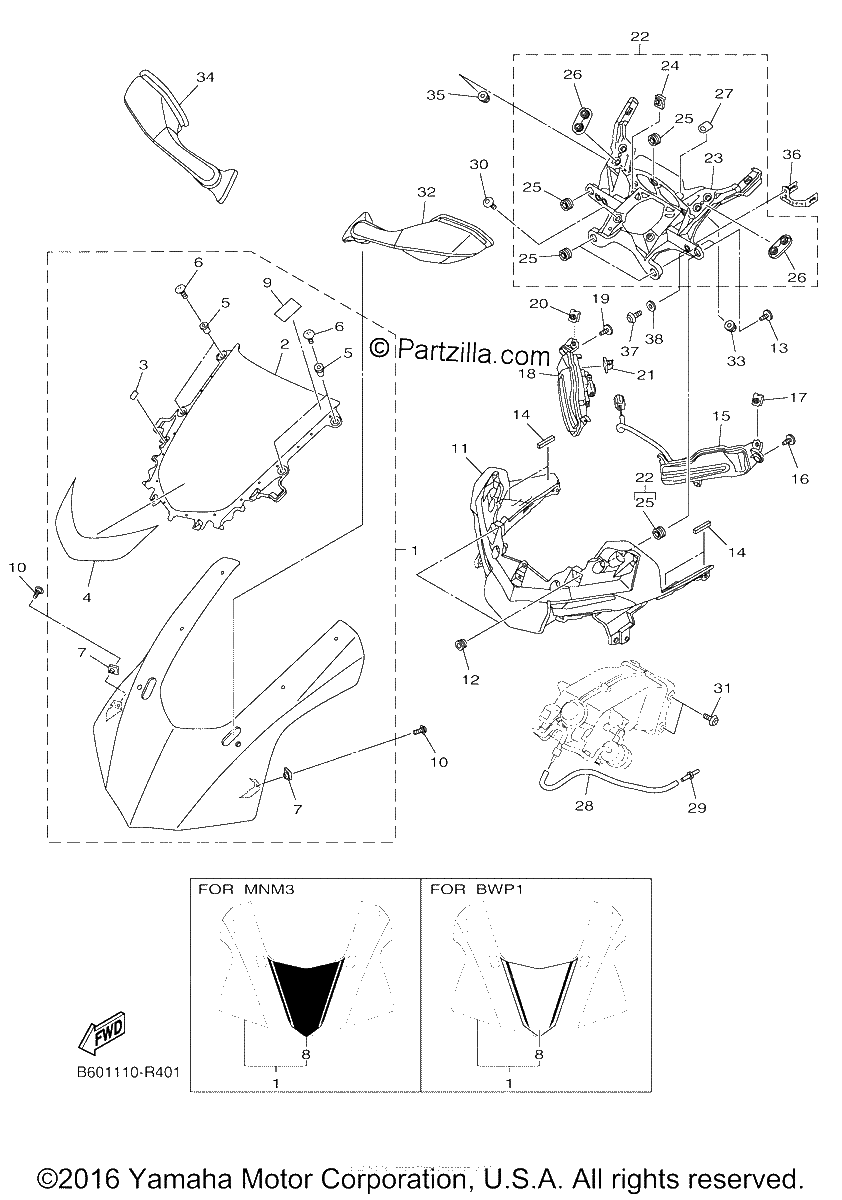

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
GRAPHIC 17 | FOR MNM3
$52.44¢26 219
#0
BODY, FRONT UPPER 1 | UR FOR BWP1
$616.48¢308 238
#1
BODY, FRONT UPPER 1 | UR FOR MNM3
$725.36¢362 681
#2
WINDSHIELD
$126.63¢63 313
#3
PROTECTOR 1
$2.97¢1 487
#4
GRAPHIC, 18
$50.10¢25 050
#5
NUT
$6.78¢3 388
#6
SCREW,ROUND HEAD
$3.33¢1 663
#7
NUT, SPRING
$2.82¢1 412
#8
GRAPHIC 17 | UR FOR BWP1
$35.60¢17 800
#9
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
#10
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#11
BODY, FRONT UPPER 2
$67.14¢33 569
#12
GROMMET
$7.48¢3 738
#13
SCREW, TAPPING
$7.48¢3 738
#14
DAMPER 4
$3.02¢1 513
#15
PILOT LIGHT ASSY 1
$354.16¢177 081
#16
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
#17
NUT, SPRING
$2.82¢1 412
#18
PILOT LIGHT ASSY 2
$379.83¢189 913
#19
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
#20
NUT, SPRING
$2.82¢1 412
#21
CLAMP
$11.97¢5 988
#22
LEG SHIELD STAY SET
$144.69¢72 344
#23
STAY 1
$72.81¢36 406
#24
NUT, SPRING
$8.70¢4 350
#25
DAMPER
$7.63¢3 813
#26
PLATE, MIRROR FITTING 1
$7.65¢3 825
#27
SEAL 1
$2.20¢1 100
#28
HOSE (L320)
$8.10¢4 050
#29
JOINT
$1.75¢875
#30
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#31
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#32
REAR VIEW MIRROR ASSY (LEFT)
$261.01¢130 506
#33
NUT, CROWN
$4.76¢2 381
#34
REAR VIEW MIRROR ASSY (RIGHT)
$387.14¢193 569
#35
NUT, CROWN
$4.76¢2 381
#36
BRACKET 6
$11.00¢5 500
#37
BOLT, BUTTON HEAD
$7.35¢3 675
#38
COLLAR
$5.41¢2 706
