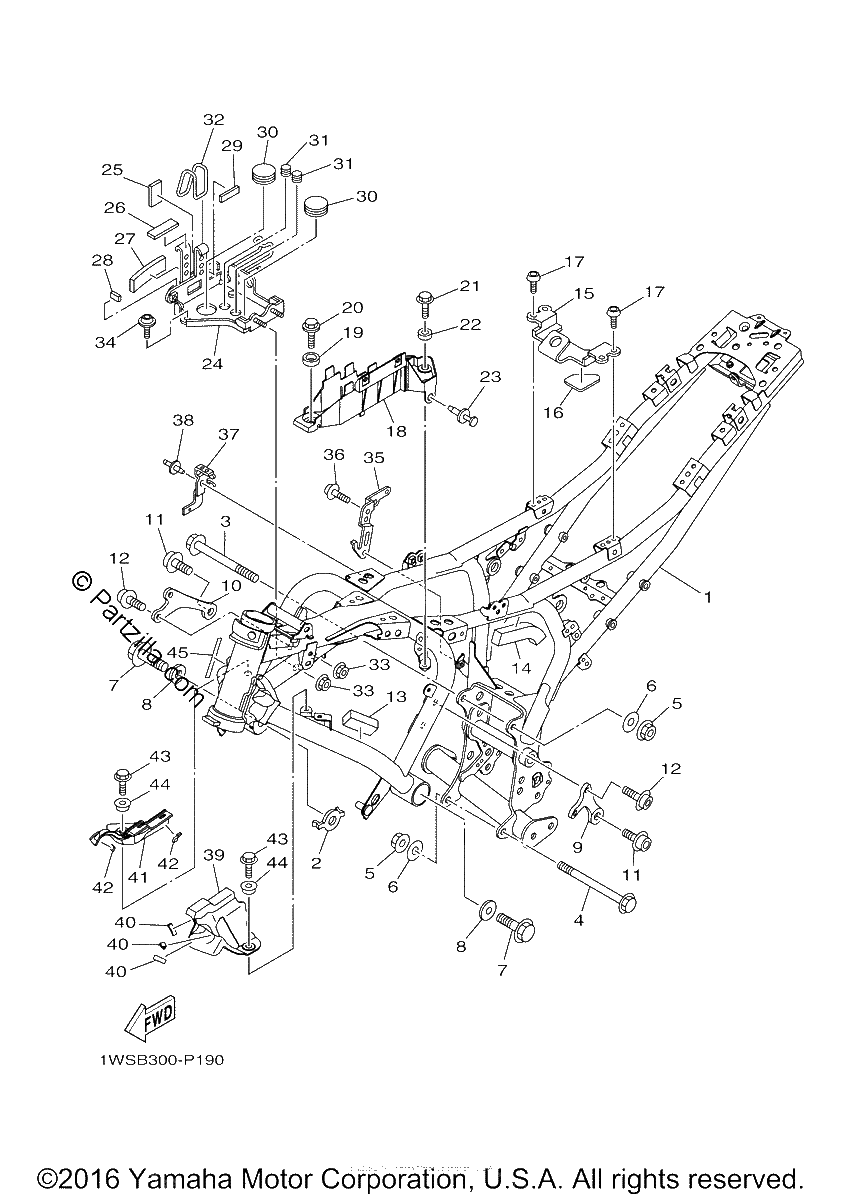

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP. | UR FOR BNS4
No Disponible
#2
PLATE 1
$18.85¢9 425
#3
Bolt, Flange
$6.84¢3 419
#4
BOLT, FLANGE
$16.18¢8 088
#5
NUT
$10.46¢5 231
#6
WASHER, plate
$4.25¢2 125
#7
BOLT, FLANGE
$14.14¢7 069
#8
WASHER, PLATE
$3.61¢1 806
#9
STAY, ENGINE 1
$56.44¢28 219
#10
STAY, ENGINE 2
$44.44¢22 219
#11
BOLT, HEXAGON SOCKET HEAD
$4.91¢2 456
#12
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
#13
DAMPER, PLATE
$3.30¢1 650
#14
DAMPER, PLATE
$7.46¢3 731
#15
BRACKET, SEAT FITTING
$20.94¢10 469
#16
SEAT 1
$2.61¢1 306
#17
BOLT, BUTTON HEAD
$2.91¢1 456
#18
COVER 3
$10.41¢5 206
#19
COLLAR
$3.71¢1 856
#20
BOLT, WITH WASHER
$6.70¢3 350
#21
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#22
COLLAR
$6.45¢3 225
#23
RIVET
$7.34¢3 669
#24
BRACKET
$75.69¢37 844
#25
DAMPER, PLATE
$0.90¢450
#26
DAMPER, SEAT
$5.10¢2 550
#27
DAMPER 4
$3.73¢1 863
#28
PLATE, DAMPER
$7.86¢3 931
#29
DAMPER
$6.45¢3 225
#30
GROMMET
$11.35¢5 675
#31
PLUG
$7.46¢3 731
#32
BAND, TOOL
$12.54¢6 269
#33
NUT, FLANGE
$2.44¢1 219
#34
BOLT, HEX. SOCKET BUTTON
$5.22¢2 613
#35
BRACKET 8
$6.52¢3 262
#36
BOLT, BUTTON HEAD
$3.65¢1 825
#37
BRACKET 2
$38.27¢19 138
#38
RIVET
$8.25¢4 125
#39
COVER 4
$7.21¢3 606
#40
PLATE, DAMPER
$7.86¢3 931
#41
COVER 5
$5.80¢2 900
#42
PLATE, DAMPER
$7.86¢3 931
#43
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#44
COLLAR
$7.88¢3 938
#45
PROTECTOR, FUEL TANK
$13.71¢6 856
