COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

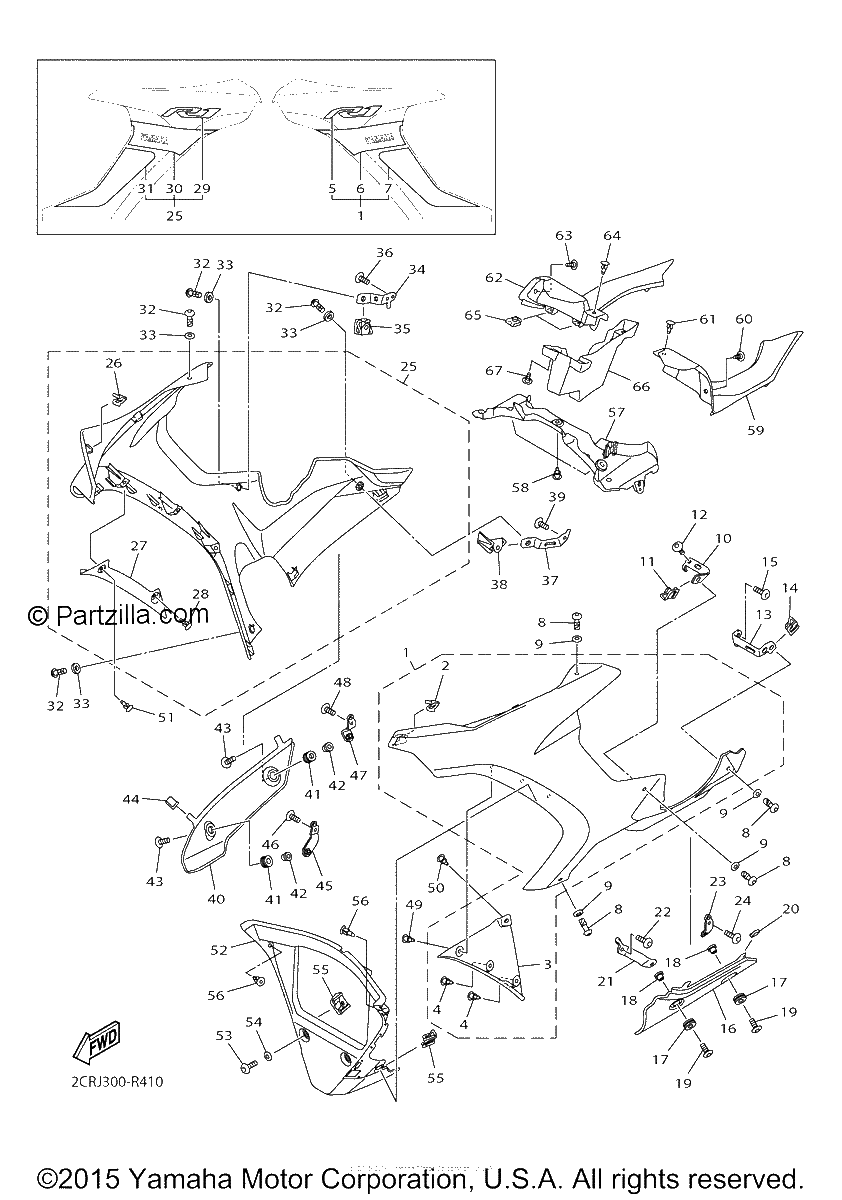

Diagrama de COWLING 2

Repuestos

#1
2CR-Y283U-70-0X
PANEL ASSEMBLY 1 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$520.14¢260 069
1
#2
90468-040A0-00
CLIP
$7.43¢3 713
1
#3
2CR-2836K-00-00
PANEL, INNER 1
$9.24¢4 619
1
#4
90269-06008-00
RIVET
$8.80¢4 400
1
#5
2CR-28328-20-00
EMBLEM
$10.11¢5 056
1
#6
2CR-28391-40-00
GRAPHIC 1
$63.89¢31 944
1
#7
2CR-28398-10-00
GRAPHIC 5
$49.47¢24 737
1
#8
2CR-28386-00-00
HEAD
$14.65¢7 325
1
#9
8HG-21757-00-00
WASHER, SPECIAL 1
$1.06¢531
1
#10
2CR-2833K-00-00
BRACKET 13
$11.83¢5 913
1
#11
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#12
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#13
2CR-2833L-00-00
BRACKET, 14
$11.34¢5 669
1
#14
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#15
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#16
2CR-2834V-00-00
PROTECTOR 1
$211.31¢105 656
1
#17
90480-14477-00
GROMMET
$3.84¢1 919
1
#18
90387-06307-00
COLLAR
$4.76¢2 381
1
#19
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#20
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#21
2CR-2833R-00-00
BRACKET, 17
$15.59¢7 794
1
#22
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#23
2CR-2833T-00-00
BRACKET, 18
$13.70¢6 850
1
#24
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#25
2CR-Y283V-70-0X
PANEL ASSEMBLY 2 | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$520.14¢260 069
1
#26
90468-040A0-00
CLIP
$7.43¢3 713
1
#27
2CR-2836L-00-00
PANEL, INNER 2
$8.97¢4 488
1
#28
90269-06008-00
RIVET
$8.80¢4 400
1
#29
2CR-28328-20-00
EMBLEM
$10.11¢5 056
1
#30
2CR-28392-40-00
GRAPHIC 2
$71.65¢35 825
1
#31
2CR-28399-10-00
GRAPHIC 6
$49.47¢24 737
1
#32
2CR-28386-00-00
HEAD
$14.65¢7 325
1
#33
8HG-21757-00-00
WASHER, SPECIAL 1
$1.06¢531
1
#34
2CR-2833M-00-00
BRACKET, 15
$8.97¢4 488
1
#35
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#36
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#37
2CR-2833N-00-00
BRACKET, 16
$8.97¢4 488
1
#38
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#39
90149-06302-00
SCREW
$5.11¢2 556
1
#39
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#40
2CR-2834W-00-00
PROTECTOR 2
$211.36¢105 681
1
#41
90480-14477-00
GROMMET
$3.84¢1 919
1
#42
90387-06307-00
COLLAR
$4.76¢2 381
1
#43
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#44
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#45
2CR-2833U-00-00
BRACKET, 19
$15.06¢7 531
1
#46
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#47
2CR-2833V-00-00
BRACKET, 20
$11.90¢5 950
1
#48
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#49
90269-06001-00
RIVET
$6.45¢3 225
1
#50
90269-06008-00
RIVET
$8.80¢4 400
1
#51
90269-06001-00
RIVET
$6.45¢3 225
1
#52
2CR-2836M-00-33
PANEL, INNER 3 | Use for Color YAMAHA BLACK ( YB / 0033 )
$297.73¢148 863
1
#54
90387-06309-00
COLLAR
$7.39¢3 694
1
#55
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#56
90269-06008-00
RIVET
$8.80¢4 400
1
#57
2CR-23174-00-00
STAY, HEADLIGHT
$25.74¢12 869
1
#58
90269-06008-00
RIVET
$8.80¢4 400
1
#59
2CR-2837L-00-00
PANEL, CONSOLE 1
$18.81¢9 406
1
#60
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#61
90269-06008-00
RIVET
$8.80¢4 400
1
#62
2CR-2837M-00-00
PANEL, CONSOLE 2
$17.01¢8 506
1
#63
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#64
90269-06008-00
RIVET
$8.80¢4 400
1
#65
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#66
2CR-2838K-00-00
BOX 1
$14.89¢7 444
1
#67
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
