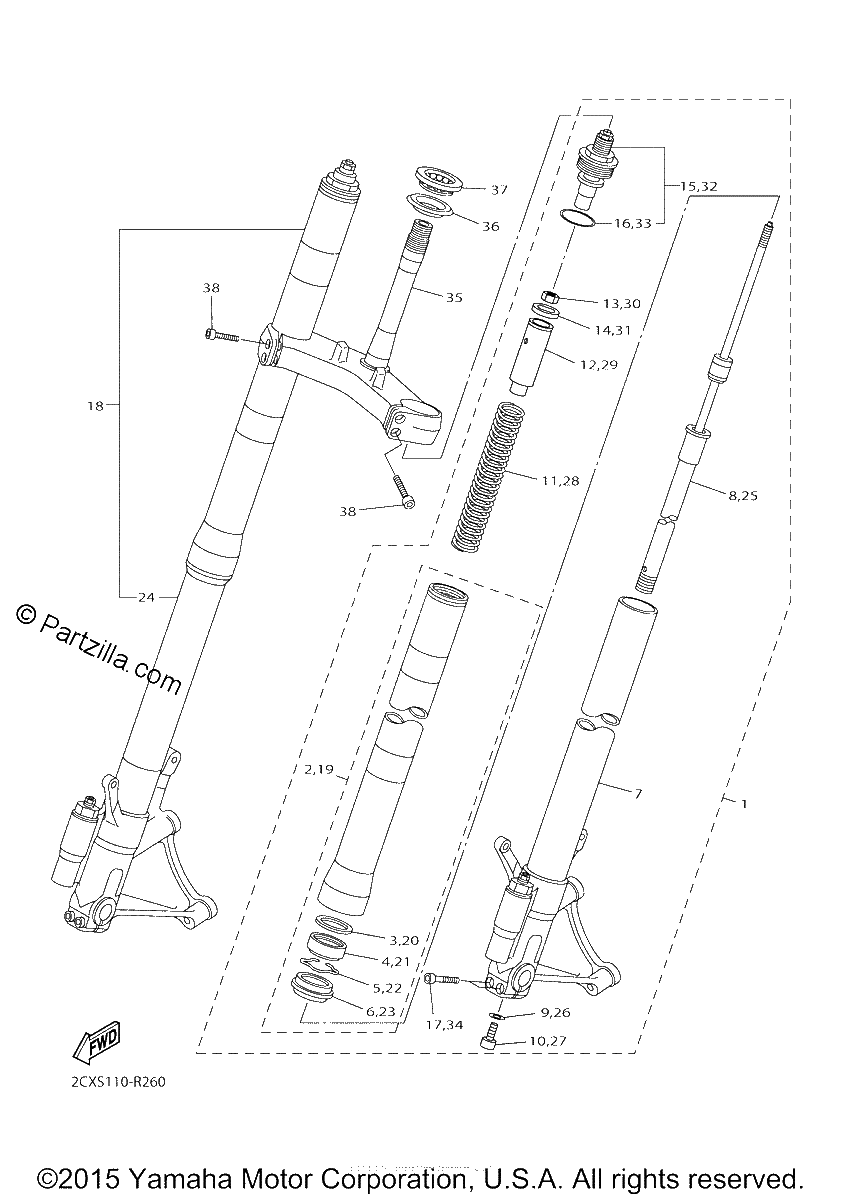

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
TUBE, OUTER
$416.36¢208 179
#0
FRONT FORK ASSY (L.H) | UR FOR MNM3
$1011.99¢505 994
#0
FRONT FORK ASSY (R.H) | UR FOR MNM3
$1124.69¢562 344
#0
TUBE, OUTER | UR FOR MNM3
$416.36¢208 179
#1
FRONT FORK ASSY (L.H)
$1100.54¢550 269
#2
TUBE, OUTER | UR FOR MNM3
$416.36¢208 179
#3
WASHER, OIL SEAL
$17.39¢8 694
#4
OIL SEAL
$26.59¢13 294
#5
RING, SNAP
$7.24¢3 622
#6
SEAL, DUST
$21.36¢10 678
#7
INNER TUBE COMP. 1
$488.34¢244 168
#8
CYLINDER COMP., FRONT FORK
$229.63¢114 816
#9
GASKET | (KYB)
$15.72¢7 860
#10
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#11
SPRING, FRONT FORK
No Disponible
#12
SPACER
$59.66¢29 831
#13
NUT
$7.28¢3 640
#14
WASHER
$11.73¢5 865
#15
BOLT, CAP
$371.32¢185 662
#16
O-RING
$7.38¢3 691
#17
BOLT (3JP)
$5.75¢2 875
#18
FRONT FORK ASSY (R.H)
$1124.69¢562 344
#19
TUBE, OUTER
$416.36¢208 179
#20
WASHER, OIL SEAL
$17.39¢8 694
#21
OIL SEAL
$26.59¢13 294
#22
RING, SNAP
$7.24¢3 622
#23
SEAL, DUST
$21.36¢10 678
#24
INNER TUBE COMP. 2
$454.18¢227 091
#25
CYLINDER COMP., FRONT FORK
$229.63¢114 816
#26
GASKET | (KYB)
$15.72¢7 860
#27
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#28
SPRING, FRONT FORK
No Disponible
#29
SPACER
$59.66¢29 831
#30
NUT
$7.28¢3 640
#31
WASHER
$11.73¢5 865
#32
BOLT, CAP
$371.32¢185 662
#33
O-RING
$7.38¢3 691
#34
BOLT (3JP)
$5.75¢2 875
#35
UNDER BRACKET COMP.
$526.64¢263 321
#36
SEAL, STEERING
$23.48¢11 742
#37
BEARING
$66.99¢33 494
#38
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
