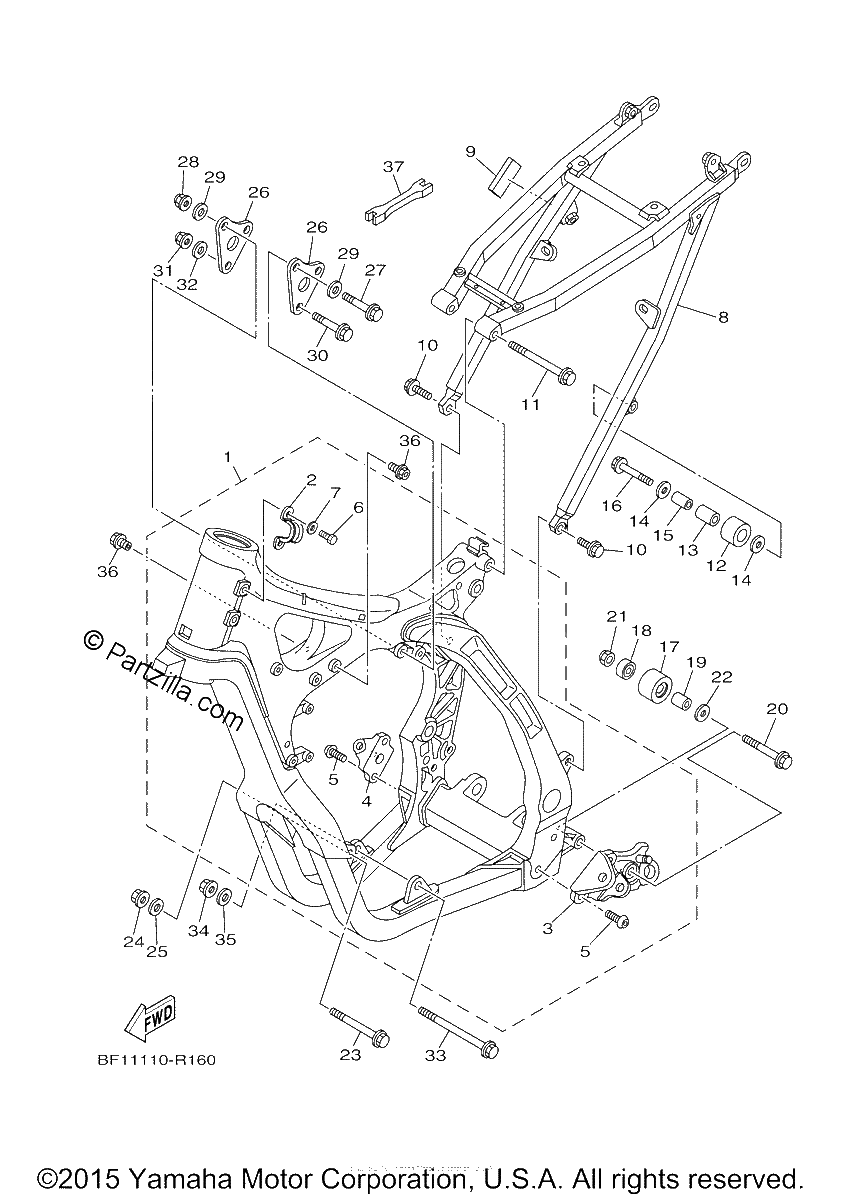

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$3113.04¢1 556 519
#2
CLAMP, WIRE HARNESS 2
$9.65¢4 824
#3
BRACKET, FOOTREST
$326.28¢163 139
#4
BRACKET, FOOTREST
$35.53¢17 768
#5
SCREW
$5.97¢2 984
#6
BOLT
$6.75¢3 375
#7
WASHER
$0.61¢305
#8
REAR FRAME COMP.
No Disponible
#9
DAMPER
$5.40¢2 702
#10
BOLT, FLANGE
$5.54¢2 772
#11
BOLT, FLANGE
$4.22¢2 110
#12
TENSIONER
$34.55¢17 273
#13
BUSH
$3.90¢1 949
#14
WASHER, PLATE
$5.21¢2 605
#15
COLLAR
$7.38¢3 691
#16
Bolt, Flange
$6.75¢3 375
#17
TENSIONER
$42.53¢21 263
#18
BEARING
$12.25¢6 124
#19
COLLAR
$9.12¢4 560
#20
BOLT, FLANGE (SMALL HEAD)
$6.03¢3 013
#21
NUT, SELF-LOCKING
$7.44¢3 720
#22
WASHER, plate
$6.32¢3 162
#23
BOLT, FLANGE
$9.48¢4 738
#24
NUT, FLANGE
$1.93¢966
#25
WASHER (replaces 92902-10200-00)
$3.14¢1 570
#26
BRACKET, REAR UPPER 1
$22.13¢11 063
#27
BOLT, FLANGE
$4.54¢2 271
#28
NUT(4KM)
$6.23¢3 117
#29
WASHER, PLATE
$6.76¢3 381
#30
BOLT, FLANGE
$5.66¢2 829
#31
NUT, FLANGE
$1.93¢966
#32
WASHER (replaces 92902-10200-00)
$3.14¢1 570
#33
BOLT, FLANGE
$10.21¢5 106
#34
NUT, FLANGE
$1.93¢966
#35
WASHER (replaces 92902-10200-00)
$3.14¢1 570
#36
NUT
$16.07¢8 033
#37
WRENCH, HEXAGON
$32.07¢16 037
