INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

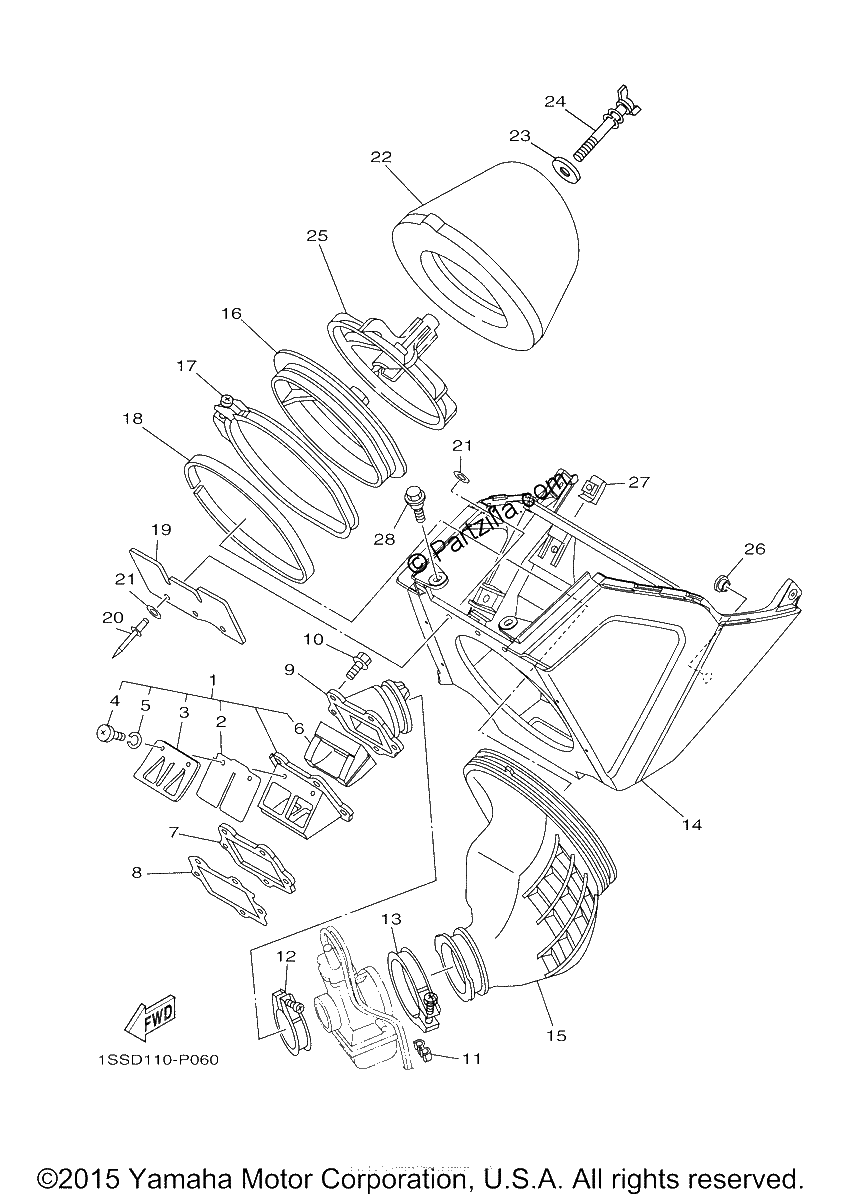

Diagrama de INTAKE

Repuestos

#1
5NX-13610-10-00
REED VALVE ASSY
$344.30¢172 150
1
#2
5NX-13613-00-00
REED, VALVE
$100.96¢50 481
1
#3
4XL-13616-10-00
STOPPER, REED VALVE
$22.68¢11 338
1
#4
98580-03008-00
SCREW, PAN HEAD
$2.73¢1 363
1
#5
92990-03100-00
WASHER, SPRING
$7.34¢3 669
1
#6
4XL-13625-00-00
SPACER, REED VALVE
$85.11¢42 556
1
#7
5NX-13624-00-00
PLATE,REED VALVE
$57.67¢28 838
1
#8
5XF-13622-00-00
GASKET, VALVE SEAT
$5.66¢2 831
1
#9
5NX-13565-00-00
JOINT, CARBURETOR
$138.16¢69 081
1
#10
91317-06025-00
BOLT
$2.44¢1 219
1
#11
90464-06214-00
CLAMP
$3.55¢1 775
1
#12
90450-51001-00
HOSE CLAMP ASSY
$16.79¢8 394
1
#13
90450-70002-00
HOSE CLAMP ASSY
$21.59¢10 794
1
#14
1SS-14401-00-00
AIR CLEANER CASE ASSY
$237.13¢118 563
1
#15
5NX-14453-00-00
JOINT, AIR CLEANER 1
$83.46¢41 731
1
#16
5NY-14459-00-00
HOLDER, GUIDE
$38.42¢19 213
1
#17
5NY-14455-20-00
BAND
$41.68¢20 838
1
#18
5NY-14442-00-00
SPACER
$24.33¢12 163
1
#19
5NY-14417-00-00
COVER 1
$16.39¢8 194
1
#20
90267-32070-00
RIVET, BLIND
$2.65¢1 325
1
#21
90201-03313-00
WASHER, PLATE
$7.63¢3 813
1
#22
4XM-14451-00-00
ELEMENT, AIR CLEANER
$44.63¢22 313
1
#23
90209-06096-00
WASHER
$7.81¢3 906
1
#24
90122-06005-00
BOLT, WING
$8.19¢4 094
1
#25
3JD-14458-01-00
GUIDE
$75.61¢37 806
1
#26
90480-10M28-00
GROMMET
$3.57¢1 787
1
#27
90183-06023-00
NUT,SPRING
$8.85¢4 425
1
#28
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
