REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

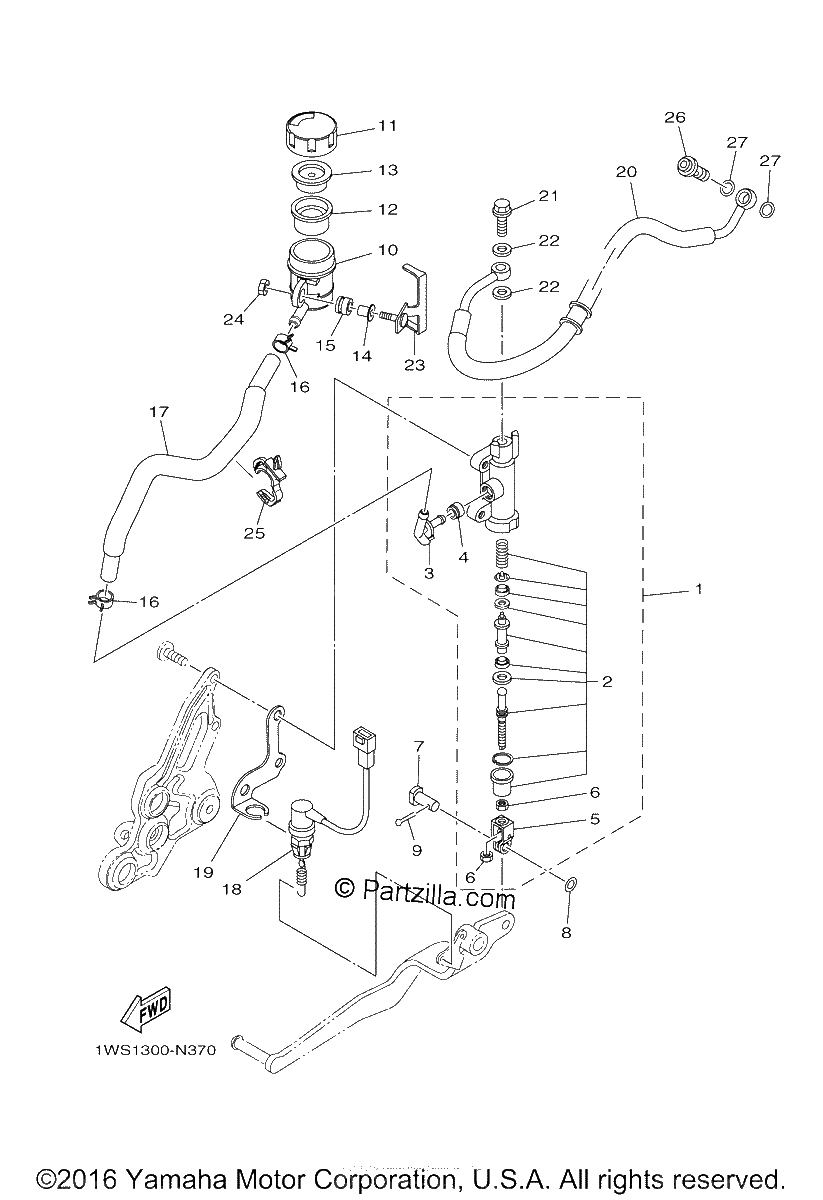

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
2D1-2583V-00-00
RR. MASTER CYLINDER
$249.77¢124 887
1
#2
5VX-W0042-51-00
CYLINDER KIT, MASTER
$100.65¢50 325
1
#3
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#8
90201-08070-00
WASHER, plate
$7.67¢3 838
1
#9
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#10
14B-25894-00-00
TANK, RESERVOIR
$66.19¢33 094
1
#11
2C0-25852-00-00
CAP, RESERVOIR
$6.84¢3 419
1
#12
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#13
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#14
90387-05028-00
COLLAR
$6.95¢3 475
1
#15
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
#16
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#17
1WS-25895-00-00
Hose, Reservoir
$23.89¢11 944
1
#18
1WS-82530-00-00
STOP SWITCH ASSY
$40.67¢20 338
1
#19
1WS-2144G-00-00
STAY, STOP SWITCH
$12.44¢6 219
1
#20
1WS-2581K-00-00
HOSE, BRAKE 5
$88.67¢44 338
1
#21
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#22
90430-10005-00
GASKET
$8.39¢4 194
1
#23
1WS-2582E-00-00
HOLDER, RESERVE TA
$8.71¢4 356
1
#24
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#25
90464-17008-00
CLAMP
$2.40¢1 200
1
#26
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#27
90430-10005-00
GASKET
$8.39¢4 194
1
