TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

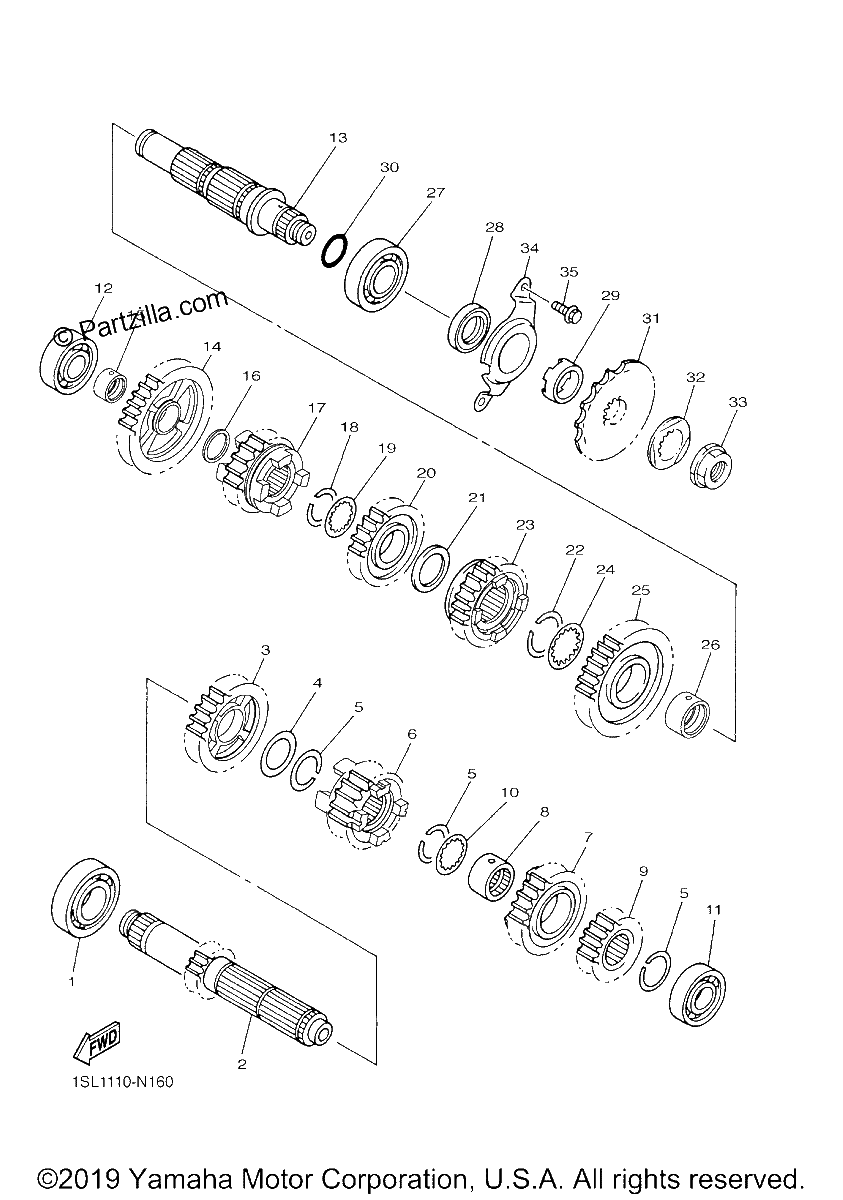

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$68.65¢34 325
1
#2
1SL-17411-00-00
Axle, Main
$164.44¢82 219
1
#3
BR9-17151-00-00
GEAR, 5TH PINION (replaces 2S2-17151-00-00)
$70.36¢35 181
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#5
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#6
1SL-17131-00-00
GEAR, 3RD PINION
$205.81¢102 906
1
#7
2S2-17141-00-00
GEAR, 4TH PINION
$144.69¢72 344
1
#8
90387-21005-00
Collar
$29.81¢14 906
1
#9
2S2-17121-00-00
GEAR, 2ND PINION
$116.42¢58 213
1
#10
90209-21332-00
WASHER
$8.03¢4 013
1
#11
93306-00447-00
BEARING
$42.55¢21 275
1
#12
93306-00426-00
BEARING
$43.60¢21 800
1
#13
1SL-17402-00-00
Drive axle assy
$280.11¢140 056
1
#14
2S2-17211-00-00
GEAR, 1ST WHEEL
$150.85¢75 425
1
#15
90387-20028-00
Collar
$24.22¢12 112
1
#16
90201-203E7-00
WASHER,PLATE
$8.60¢4 300
1
#17
1SL-17251-10-00
GEAR, 5TH WHEEL
$204.11¢102 056
1
#18
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#19
90209-22008-00
WASHER
$6.14¢3 069
1
#20
BR9-17231-00-00
GEAR, 3RD WHEEL (replaces 1SL-17231-00-00)
$179.19¢89 594
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#23
1SL-17241-10-00
GEAR, 4TH WHEEL
$148.52¢74 262
1
#24
90209-26348-00
WASHER
$11.49¢5 744
1
#25
2S2-17221-00-00
GEAR, 2ND WHEEL
$160.73¢80 363
1
#26
90387-28012-00
Collar
$32.06¢16 031
1
#27
93306-205A5-00
BEARING
$63.35¢31 675
1
#28
93102-32480-00
Oil Seal
$19.90¢9 950
1
#29
90387-2513F-00
Collar
$40.65¢20 325
1
#30
93210-22298-00
O-RING
$7.81¢3 906
1
#31
9383E-13233-00
SPROCKET, DRIVE (13T)
$23.64¢11 819
1
#32
90215-21003-00
Washer, Lock
$6.41¢3 206
1
#33
90179-20001-00
Nut
$16.43¢8 213
1
#34
1SL-17471-00-00
PLATE, COVER
$14.52¢7 262
1
#35
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
