CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

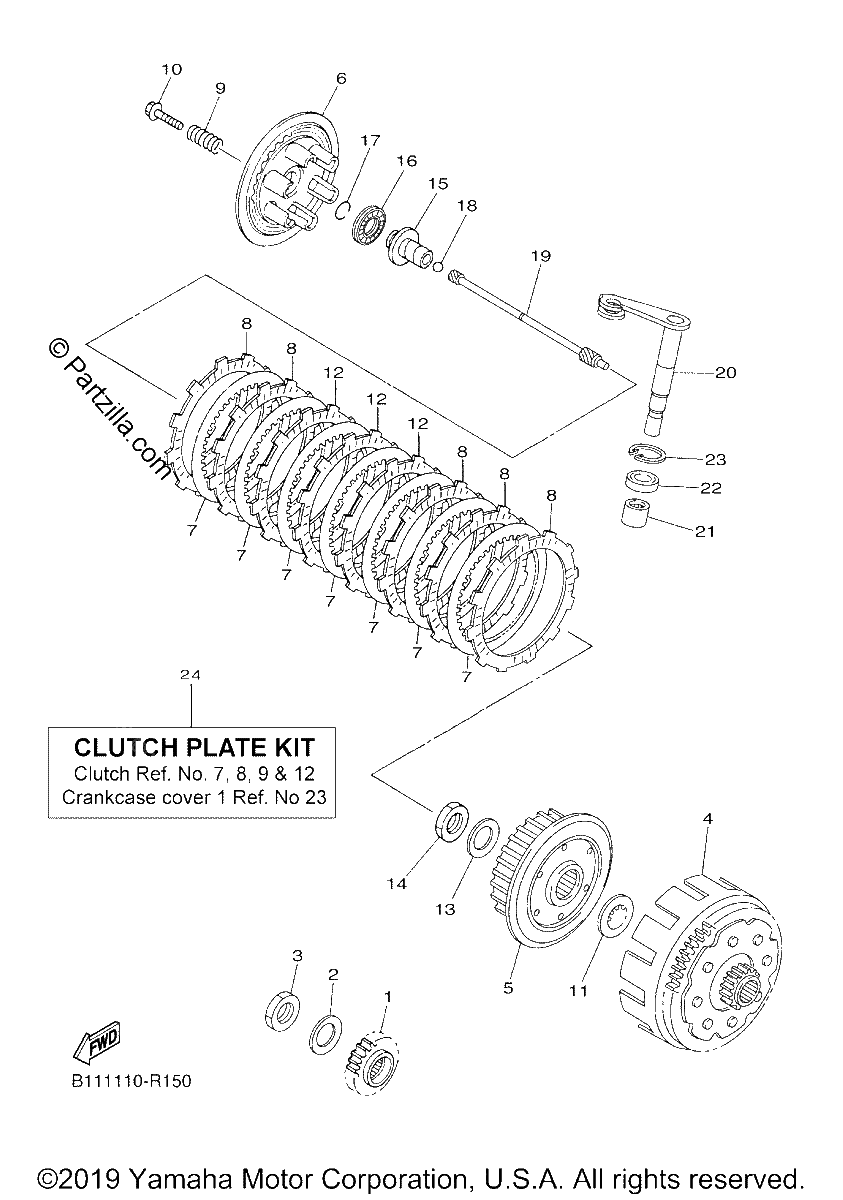

Diagrama de CLUTCH

Repuestos

#1
2S2-16111-60-00
GEAR, PRIMARY DRIVE
$160.39¢80 195
1
#2
90208-20008-00
WASHER,CONICAL SPR
$7.58¢3 789
1
#3
90170-20255-00
NUT,HEXAGON
$9.63¢4 813
1
#4
B11-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$575.52¢287 759
1
#5
5TA-16371-20-00
BOSS, CLUTCH
$135.63¢67 816
1
#6
2S2-16351-01-00
PLATE, PRESSURE 1
$90.34¢45 172
1
#7
BR9-16324-00-00
PLATE, CLUTCH 1 (replaces 4B1-16324-00-00)
$10.23¢5 118
1
#8
5TA-16321-00-00
PLATE, FRICTION
$25.22¢12 610
1
#9
90501-240A3-00
Spring, Compression
$6.81¢3 404
1
#10
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#11
5XD-16154-00-00
PLATE, THRUST 1
$14.34¢7 170
1
#12
5VY-16321-00-00
PLATE, FRICTION
$29.75¢14 875
1
#13
90208-20008-00
WASHER,CONICAL SPR
$7.58¢3 789
1
#14
90170-20255-00
NUT,HEXAGON
$9.63¢4 813
1
#15
33D-16356-00-00
ROD, PUSH 1
$69.10¢34 552
1
#16
93340-21209-00
BEARING, TRUST
$16.02¢8 010
1
#17
93440-10085-00
CIRCLIP
$6.75¢3 375
1
#18
93511-32027-00
BALL
$6.75¢3 375
1
#19
1SL-16357-10-00
ROD, PUSH 2
$49.71¢24 857
1
#20
1SL-16381-00-00
PUSH LEVER COMP.
$100.92¢50 462
1
#21
93317-11096-00
BEARING
$21.90¢10 948
1
#22
93102-10008-00
Oil Seal
$5.09¢2 547
1
#23
99009-18500-00
Circlip
$0.63¢316
1
#24
1SL-W001G-00-00
Clutch Kit
$165.12¢82 559
1
