REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

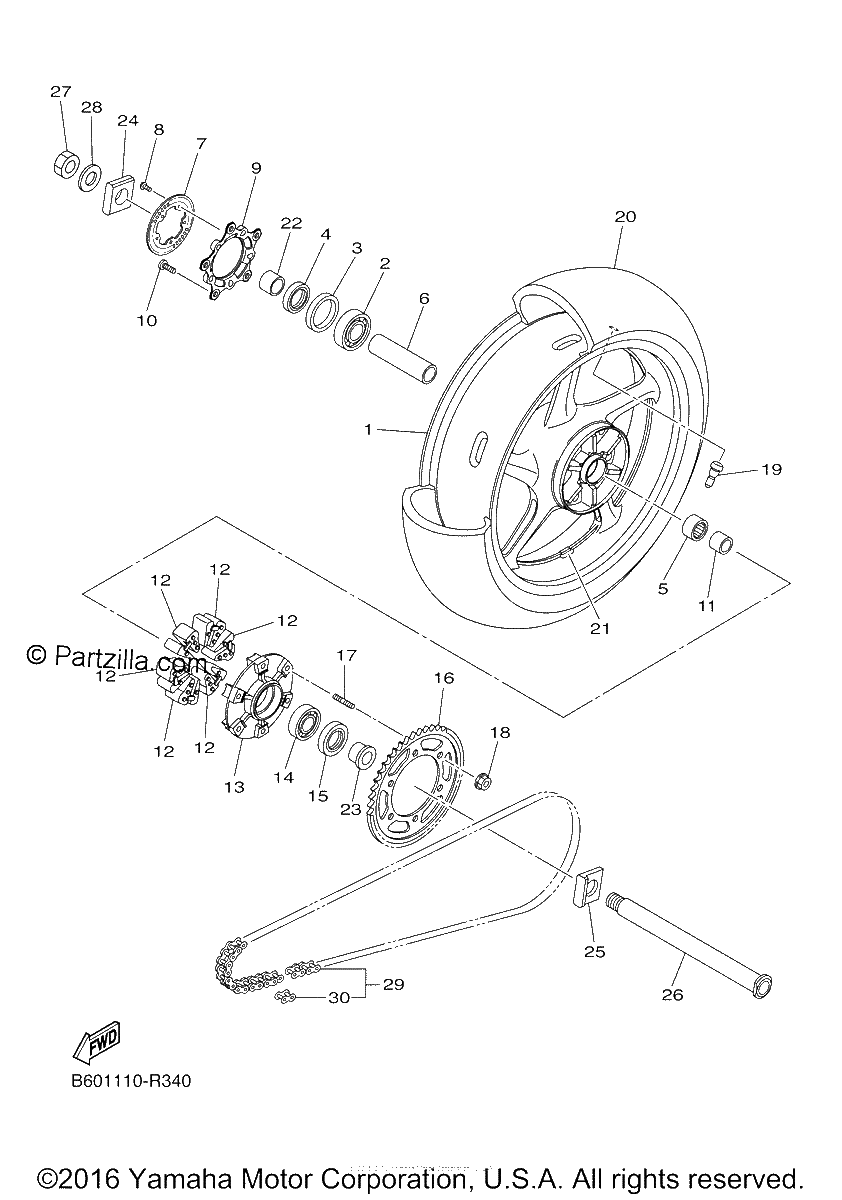

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$18.51¢9 256
1
#0
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$18.31¢9 156
1
#1
B60-25338-00-98
CAST WHEEL, REAR | LGB
$670.52¢335 263
1
#2
93306-27802-00
BEARING
$76.59¢38 294
1
#3
2CR-2538E-00-00
NUT, ADJUSTING
$60.51¢30 256
1
#4
93106-40001-00
OIL SEAL
$12.07¢6 038
1
#5
93317-43580-00
BEARING
$75.65¢37 825
1
#6
5PW-25317-00-00
SPACER, BEARING
$59.57¢29 787
1
#7
1SD-2517G-00-00
ROTOR, SENSOR
$142.80¢71 400
1
#8
90149-05030-00
SCREW
$2.54¢1 269
1
#9
B60-2534C-00-00
RING, WHEEL REAR 1
$105.29¢52 644
1
#10
90149-05030-00
SCREW
$2.54¢1 269
1
#11
90387-28025-00
COLLAR
$54.55¢27 275
1
#12
2C0-25364-00-00
DAMPER
$24.79¢12 394
1
#13
B60-25366-00-00
CLUTCH, HUB
$312.02¢156 013
1
#14
93306-20531-00
BEARING
$52.95¢26 475
1
#15
93106-40013-00
OIL SEAL
$14.36¢7 181
1
#16
B60-25441-00-00
SPROCKET, DRIVEN (41T)
$112.10¢56 050
1
#17
90116-10048-00
BOLT, STUD
$27.17¢13 587
1
#18
90185-10011-00
NUT, SELF-LOCKING
$4.68¢2 338
1
#19
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
1
#20
94119-17075-00
TIRE(190/55 ZR17 M/C 75W) | BRIDGESTONE
$501.29¢250 644
1
#21
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$47.05¢23 525
1
#22
90387-28023-00
COLLAR
$26.43¢13 213
1
#23
90387-28024-00
COLLAR
$31.43¢15 713
1
#24
5VY-25388-00-00
PULLER, CHAIN 1
$64.59¢32 294
1
#25
5VY-25389-01-00
PULLER, CHAIN 2
$41.64¢20 819
1
#26
2CR-25381-00-00
AXLE, WHEEL
$74.70¢37 350
1
#27
90185-24007-00
NUT, SELF-LOCKING
$42.75¢21 375
1
#28
90201-25020-00
WASHER, PLATE
$7.63¢3 813
1
#29
94582-40114-00
CHAIN (DID 525VZ-114LL)
$186.22¢93 113
1
#30
94682-40031-00
JOINT, CHAIN (DID525VZ ZJ)
$9.31¢4 656
1
