COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

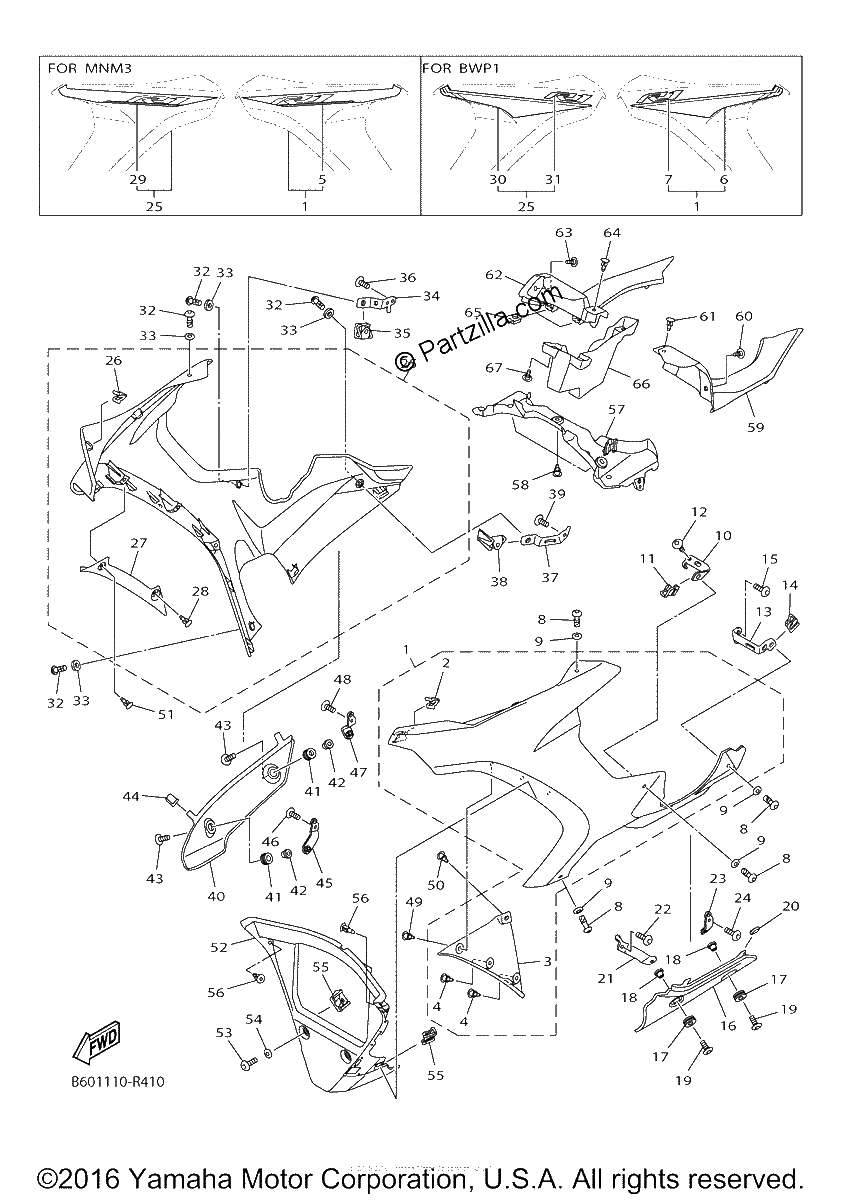

Diagrama de COWLING 2

Repuestos

#0
2CR-Y283U-50-P2
PANEL ASSEMBLY 1 | UR FOR BWP1
$406.73¢203 366
1
#0
2CR-Y283V-50-P2
PANEL ASSEMBLY 2 | UR FOR BWP1
$478.53¢239 263
1
#0
2CR-2836M-00-P3
PANEL, INNER 3 | UR FOR MNM3
$271.84¢135 919
1
#1
2CR-Y283U-40-P3
PANEL ASSEMBLY 1 | UR FOR MNM3
$370.64¢185 323
1
#2
90468-040A0-00
CLIP
$6.83¢3 415
1
#3
2CR-2836K-00-00
PANEL, INNER 1
$8.50¢4 249
1
#4
90269-06008-00
RIVET
$8.10¢4 048
1
#5
B60-28391-00-00
GRAPHIC 1 | FOR MNM3
$46.51¢23 253
1
#6
B60-28391-10-00
GRAPHIC 1 | UR FOR BWP1
$70.21¢35 104
1
#7
2CR-28328-10-00
EMBLEM | UR FOR BWP1
$8.45¢4 226
1
#8
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#9
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#10
2CR-2833K-00-00
BRACKET 13
$10.88¢5 440
1
#11
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#12
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#13
2CR-2833L-00-00
BRACKET, 14
$10.43¢5 215
1
#14
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#15
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#16
2CR-2834V-00-00
PROTECTOR 1
$194.41¢97 204
1
#17
90480-14477-00
GROMMET
$3.53¢1 765
1
#18
90387-06307-00
COLLAR
$4.38¢2 191
1
#19
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#20
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#21
2CR-2833R-00-00
BRACKET, 17
$14.34¢7 170
1
#22
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#23
2CR-2833T-00-00
BRACKET, 18
$12.60¢6 302
1
#24
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#25
2CR-Y283V-40-P3
PANEL ASSEMBLY 2 | UR FOR MNM3
$438.02¢219 012
1
#26
90468-040A0-00
CLIP
$6.83¢3 415
1
#27
2CR-2836L-00-00
PANEL, INNER 2
$8.26¢4 129
1
#28
90269-06008-00
RIVET
$8.10¢4 048
1
#29
B60-28392-00-00
GRAPHIC 2 | FOR MNM3
$46.51¢23 253
1
#30
B60-28392-10-00
GRAPHIC 2 | UR FOR BWP1
$60.27¢30 136
1
#31
2CR-28328-10-00
EMBLEM | UR FOR BWP1
$8.45¢4 226
1
#32
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#33
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#34
2CR-2833M-00-00
BRACKET, 15
$8.26¢4 129
1
#35
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#36
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#37
2CR-2833N-00-00
BRACKET, 16
$8.26¢4 129
1
#38
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#39
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#39
90149-06302-00
SCREW
$4.70¢2 352
1
#40
2CR-2834W-00-00
PROTECTOR 2
$194.45¢97 227
1
#41
90480-14477-00
GROMMET
$3.53¢1 765
1
#42
90387-06307-00
COLLAR
$4.38¢2 191
1
#43
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#44
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#45
2CR-2833U-00-00
BRACKET, 19
$13.86¢6 929
1
#46
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#47
2CR-2833V-00-00
BRACKET, 20
$10.95¢5 474
1
#48
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#49
90269-06001-00
RIVET
$5.93¢2 967
1
#50
90269-06008-00
RIVET
$8.10¢4 048
1
#51
90269-06001-00
RIVET
$5.93¢2 967
1
#52
2CR-2836M-00-P2
PANEL, INNER 3 | UR FOR BWP1
$233.75¢116 874
1
#54
90387-06309-00
COLLAR
$6.80¢3 398
1
#55
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#56
90269-06008-00
RIVET
$8.10¢4 048
1
#57
2CR-23174-00-00
STAY, HEADLIGHT
$23.68¢11 839
1
#58
90269-06008-00
RIVET
$8.10¢4 048
1
#59
2CR-2837L-00-00
PANEL, CONSOLE 1
$17.31¢8 654
1
#60
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#61
90269-06008-00
RIVET
$8.10¢4 048
1
#62
2CR-2837M-00-00
PANEL, CONSOLE 2
$15.65¢7 826
1
#63
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#64
90269-06008-00
RIVET
$8.10¢4 048
1
#65
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#66
2CR-2838K-00-00
BOX 1
$13.70¢6 848
1
#67
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
