CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

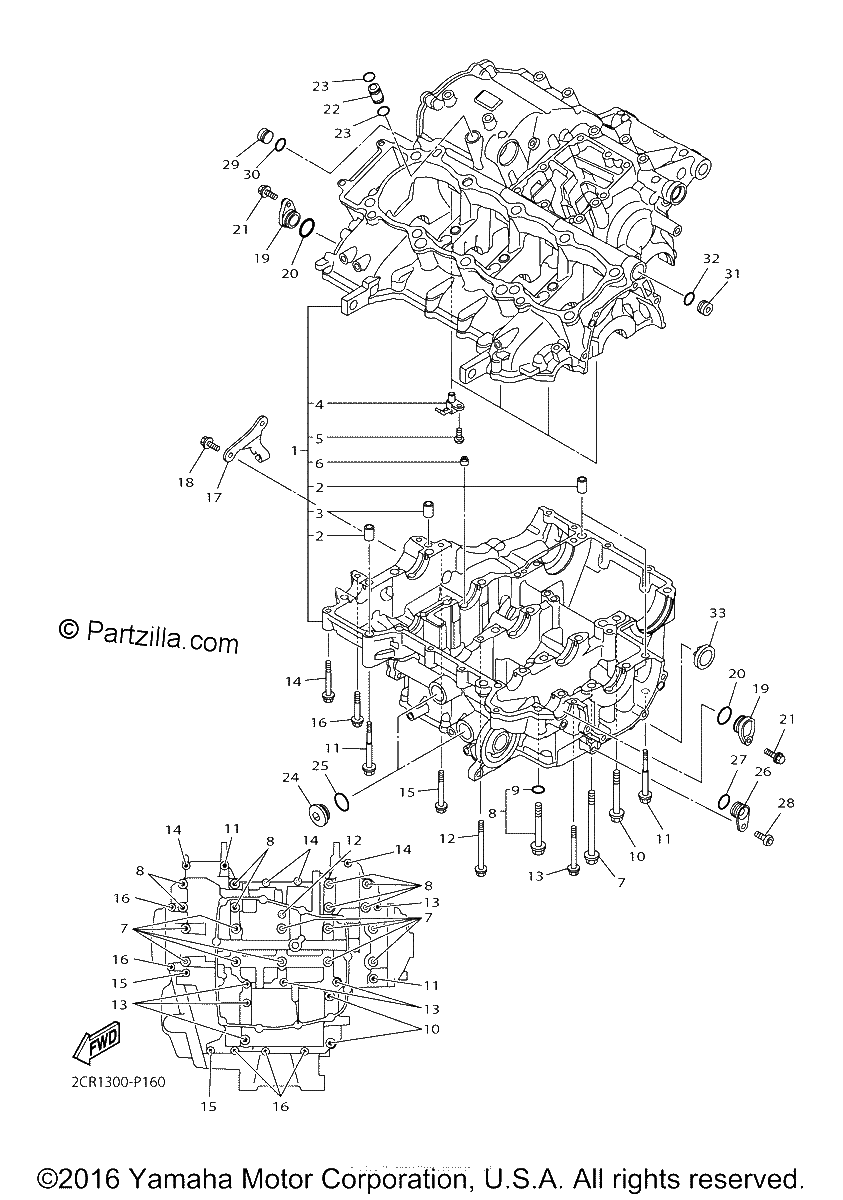

Diagrama de CRANKCASE

Repuestos

#1
2CR-15100-19-00
CRANKCASE ASSY
$2371.29¢1 185 644
1
#2
99510-10114-00
PIN, DOWEL
$2.50¢1 248
1
#3
91808-16002-00
PIN, DOWEL
$5.35¢2 674
1
#4
2CR-15105-10-00
NOZZLE ASSY
$71.93¢35 966
1
#5
90149-06156-00
SCREW
$6.96¢3 479
1
#6
2CR-15138-00-00
NOZZLE 1
$4.54¢2 271
1
#7
90119-09010-00
BOLT, WITH WASHER
$12.60¢6 302
1
#8
14B-15156-00-00
BOLT, CRANKCASE JOURNAL
$8.26¢4 129
1
#9
93210-07540-00
O-RING
$6.32¢3 162
1
#10
95817-08060-00
BOLT, FLANGE
$3.58¢1 788
1
#11
90109-06100-00
BOLT
$8.34¢4 169
1
#12
95812-06070-00
BOLT, FLANGE
$7.10¢3 548
1
#13
95812-06060-00
Bolt, Flange
$2.93¢1 466
1
#14
95812-06050-00
BOLT, FLANGE
$1.66¢828
1
#15
90105-06213-00
BOLT, FLANGE
$1.66¢828
1
#16
95812-06040-00
BOLT, FLANGE
$4.98¢2 490
1
#17
2CR-15441-00-00
HOLDER, CLUTCH CABLE
$11.78¢5 888
1
#18
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#19
2CR-15189-00-00
PLUG
$13.08¢6 538
1
#20
93210-23326-00
O-RING
$6.75¢3 375
1
#21
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#22
2CR-13191-00-00
PIPE, DELIVERY 4
$7.50¢3 749
1
#23
93210-11453-00
O-RING
$6.43¢3 214
1
#24
4H7-15189-00-00
PLUG
$28.30¢14 151
1
#25
93210-207A0-00
O-Ring
$1.06¢529
1
#26
2CR-15319-01-00
JOINT
$31.50¢15 749
1
#27
93210-13657-00
O-RING
$6.43¢3 214
1
#28
90149-06068-00
SCREW
$3.67¢1 834
1
#29
90338-16262-00
PLUG
$12.67¢6 336
1
#30
93210-12790-00
O-RING
$6.30¢3 151
1
#31
90338-16009-00
PLUG
$12.20¢6 101
1
#32
93210-16325-00
O-RING
$6.43¢3 214
1
#33
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
