ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

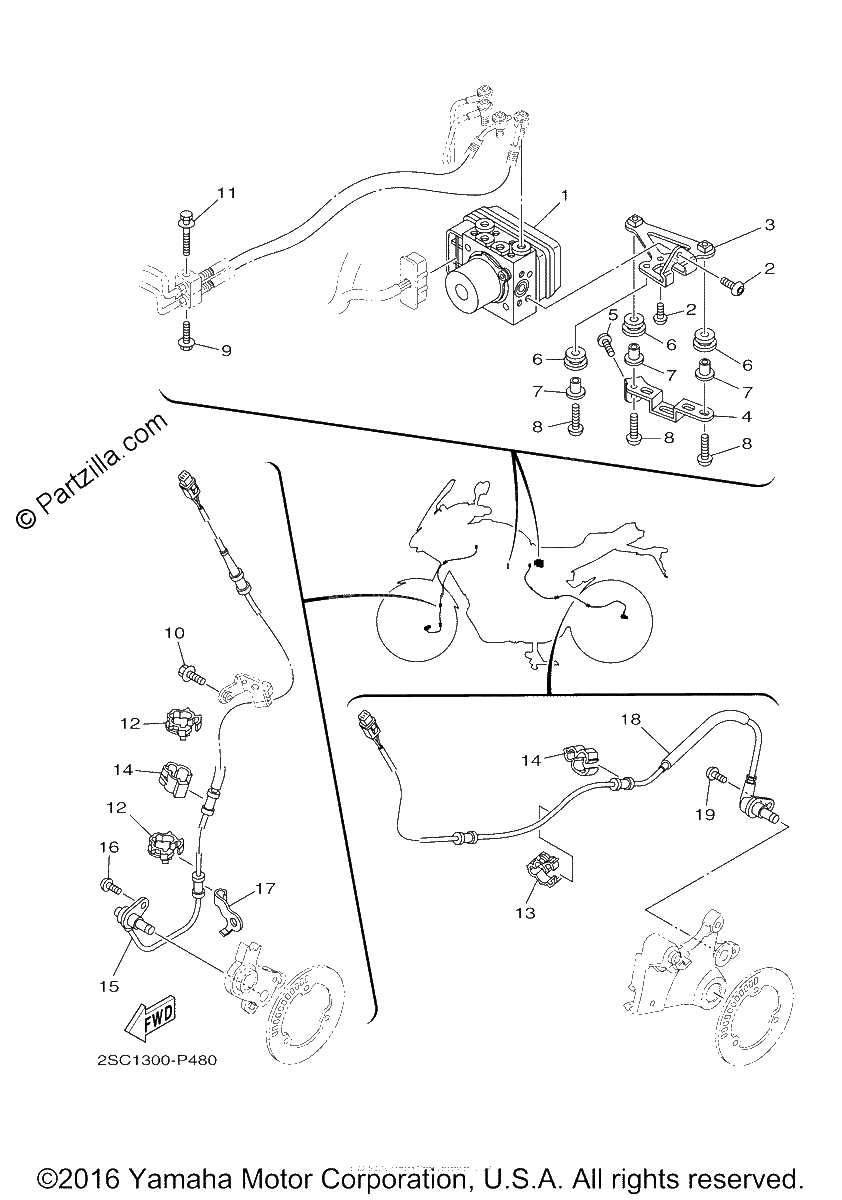

Diagrama de ELECTRICAL 3

Repuestos

#1
2SC-85930-09-00
HYDRAULIC UNIT ASSY
$1351.24¢675 619
1
#2
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#3
2DR-85991-00-00
BRACKET, UNIT
$13.50¢6 750
1
#4
2DR-85542-00-00
BRACKET
$11.61¢5 806
1
#5
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#6
90480-13567-00
GROMMET
$4.63¢2 313
1
#7
90387-06160-00
COLLAR
$4.51¢2 256
1
#8
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#9
90105-06148-00
Bolt, Flange
$7.41¢3 706
1
#10
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#11
90119-06M55-00
BOLT, WITH WASHER
$4.66¢2 331
1
#12
90464-12013-00
Clamp
$7.84¢3 919
1
#13
90464-14003-00
CLAMP
$39.96¢19 981
1
#14
90464-10233-00
CLAMP
$7.56¢3 781
1
#15
2DR-85970-00-00
WHEEL SENSOR ASSY, FRONT
$161.61¢80 806
1
#16
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#17
2DR-23318-00-00
WIRE, HOLDER 1
$9.15¢4 575
1
#18
2DR-85980-01-00
WHEEL SENSOR ASSY, REAR
$135.79¢67 894
1
#19
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
