ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

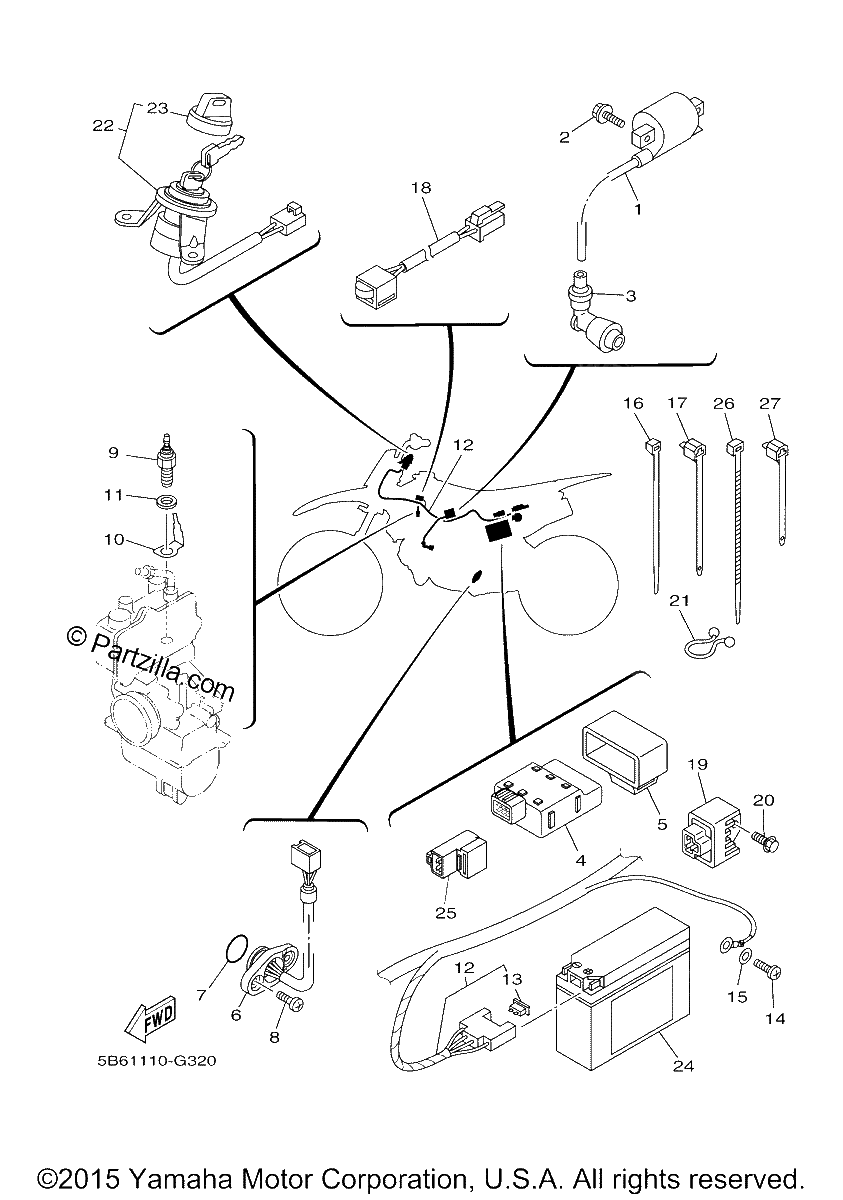

Diagrama de ELECTRICAL 1

Repuestos

#1
3KJ-82310-11-00
IGNITION COIL ASSY (replaces 3RW-82310-10-00)
$43.79¢21 894
1
#2
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#3
4BP-82370-00-00
PLUG CAP ASY
$37.91¢18 956
1
#4
5B6-85540-00-00
C.D.I. UNIT ASSY
$331.10¢165 550
1
#5
3MB-85546-00-00
BAND
$7.84¢3 919
1
#6
3S0-H2540-00-00
NEUTRAL SWITCH ASSY
$23.56¢11 781
1
#7
93210-20573-00
O-RING (replaces 93210-228G1-00)
$7.34¢3 669
1
#8
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#9
5FU-83790-20-00
HEATER ASSY (30W)
$52.21¢26 106
1
#10
5FU-82103-00-00
TERMINAL 1
$7.86¢3 931
1
#11
90201-08016-00
WASHER, PLATE | FOR CALIFORNIA
$7.43¢3 713
1
#12
5B6-82590-01-00
WIRE HARNESS ASSY
$227.33¢113 663
1
#13
42X-82151-00-00
FUSE (10A-BL)
$2.64¢1 319
1
#14
97885-06012-00
SCREW,PAN HEAD (replaces 97880-06012-00)
$3.67¢1 838
1
#15
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#16
1UA-82591-00-00
BAND
$4.91¢2 456
1
#17
437-83936-11-00
BAND, SWITCH CORD
$4.26¢2 131
1
#18
5FU-82560-50-00
THERMO SWITCH ASSY
$60.26¢30 131
1
#19
3LA-81960-01-00
RECTIFIER & REGULATO
$237.25¢118 625
1
#20
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#21
90464-16039-00
Clamp
$10.29¢5 144
1
#22
5B6-82510-01-00
MAIN SWITCH ASSY (replaces 5B6-82510-00-00)
$96.24¢48 119
1
#23
3HN-82579-00-00
CAP, KEY
$14.65¢7 325
1
#24
GT4-B5000-00-00
GT4B5 GS BATTERY - (replaces 4JS-82100-10-00)
$101.84¢50 919
1
#25
29U-81950-93-00
RELAY ASSY
$83.00¢41 500
1
#26
1UA-82591-00-00
BAND
$4.91¢2 456
1
#27
90465-13M39-00
CLAMP
$5.71¢2 856
1
