FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

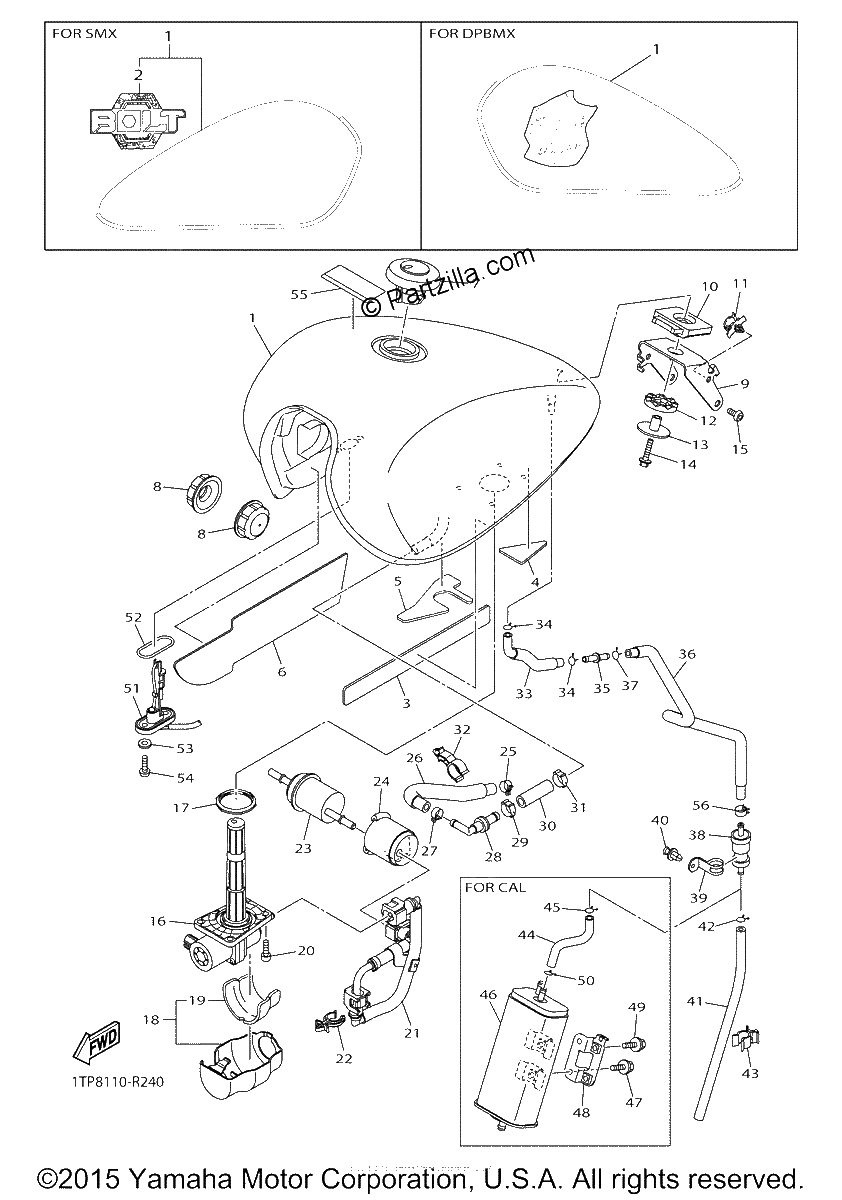

Diagrama de FUEL TANK

Repuestos

#0
1TP-Y2410-00-W1
FUEL TANK COMP. | UR FOR DPBMX
$808.74¢404 369
1
#1
1TP-Y2410-00-X9
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$698.74¢349 369
1
#2
1TP-24244-30-00
GRAPHIC, FUEL TANK 1 | Use for Color Black Metallic X ( SMX / 0903 )
$16.88¢8 438
1
#3
1TP-2414H-00-00
DAMPER, PLATE 1
$11.50¢5 750
1
#4
1TP-2414J-00-00
DAMPER, PLATE 2
$6.40¢3 200
1
#5
1TP-2414K-00-00
DAMPER, PLATE 3
$11.04¢5 519
1
#6
1TP-24141-00-00
PROTECTOR, FUEL TANK
$40.85¢20 425
1
#7
4NK-24602-20-00
CAP ASSY
$136.76¢68 381
1
#8
1TP-24181-00-00
DAMPER, LOCATING 1
$5.15¢2 575
1
#9
1TP-2413Y-00-00
BRACKET, TANK FITTING
$18.45¢9 225
1
#10
1TP-24182-00-00
DAMPER, LOCATING 2
$12.61¢6 306
1
#11
90464-14001-00
CLAMP
$5.84¢2 919
1
#12
1TP-24183-00-00
DAMPER, LOCATING 3
$4.35¢2 175
1
#13
90387-06177-00
COLLAR
$10.34¢5 169
1
#14
95812-06030-00
BOLT, FLANGE
$1.98¢988
1
#15
92012-08012-00
BOLT, BUTTON HEAD
$7.56¢3 781
1
#16
1TP-13907-00-00
FUEL PUMP COMP.
$512.59¢256 294
1
#17
1TP-24486-00-00
O-RING
$21.74¢10 869
1
#18
1TP-24474-00-00
COVER
$16.18¢8 088
1
#19
1TP-2414N-00-00
DAMPER, PLATE 4
$3.98¢1 988
1
#20
91317-05016-00
BOLT
$2.95¢1 475
1
#21
1TP-24330-00-00
FUEL PIPE ASSY. 2
$175.56¢87 781
1
#22
90464-16240-00
CLAMP
$3.02¢1 513
1
#23
1TP-13915-00-00
FILTER
$121.05¢60 525
1
#24
1TP-24398-00-00
BAND 1
$11.54¢5 769
1
#25
90467-12003-00
CLIP
$7.43¢3 713
1
#26
1TP-24315-00-00
PIPE 5
$43.92¢21 963
1
#27
90467-12003-00
CLIP
$7.43¢3 713
1
#28
1TP-14860-00-00
CHECK VALVE ASSY
$46.31¢23 156
1
#29
90467-150A6-00
CLIP
$6.14¢3 069
1
#30
1TP-24314-00-00
PIPE 4
$9.96¢4 981
1
#31
90467-150A6-00
CLIP
$6.14¢3 069
1
#32
90464-17009-00
CLAMP
$6.95¢3 475
1
#33
1TP-24313-00-00
PIPE 3
$21.72¢10 862
1
#34
90467-090A2-00
Clip
$2.97¢1 487
1
#35
4XY-14568-00-00
JOINT
$7.08¢3 538
1
#36
1TP-24316-00-00
PIPE 6
$48.75¢24 375
1
#37
90467-090A2-00
Clip
$2.97¢1 487
1
#38
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
1
#39
1TP-24136-00-00
CLAMP 2
$7.21¢3 606
1
#39
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#40
90269-05005-00
RIVET
$3.57¢1 787
1
#41
90445-116K9-00
HOSE (L400)
$22.74¢11 369
1
#42
90467-090A2-00
Clip
$2.97¢1 487
1
#43
90464-12015-00
CLAMP
$1.23¢613
1
#44
1TP-2486A-00-00
PIPE 1 | FOR CALIFORNIA
$14.09¢7 044
1
#45
90467-090A2-00
Clip
$2.97¢1 487
1
#46
5PX-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$353.90¢176 950
1
#47
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#48
1TP-2413X-00-00
PLATE | FOR CALIFORNIA
$10.89¢5 444
1
#49
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#50
90467-090A2-00
Clip
$2.97¢1 487
1
#51
1TP-85752-00-00
SENDER UNIT ASSY, FUEL METER
$99.90¢49 950
1
#52
42X-85753-00-00
GASKET, SENDER UNIT
$8.03¢4 013
1
#54
90149-06108-00
SCREW
$1.14¢569
1
#55
1TP-2118K-00-00
LABEL, CAUTION
$4.51¢2 256
1
#56
90467-09001-00
CLIP
$2.16¢1 081
1
